Help needed to make pattern for Intarsia

  • Advertise with us

« back to Designing Woodworking Projects forum

Forum topic by Allison posted 02-13-2009 06:43 AM 4056 views 0 times favorited 23 replies Add to Favorites Watch
View Allison's profile

Allison

819 posts in 2543 days


02-13-2009 06:43 AM

Topic tags/keywords: pattern template help question ideas intarsia

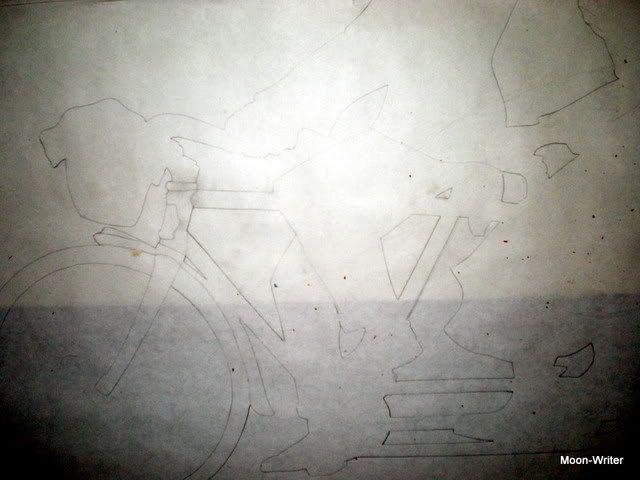

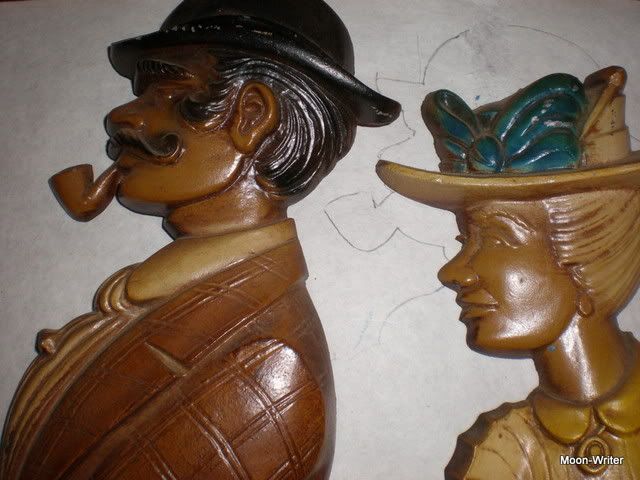

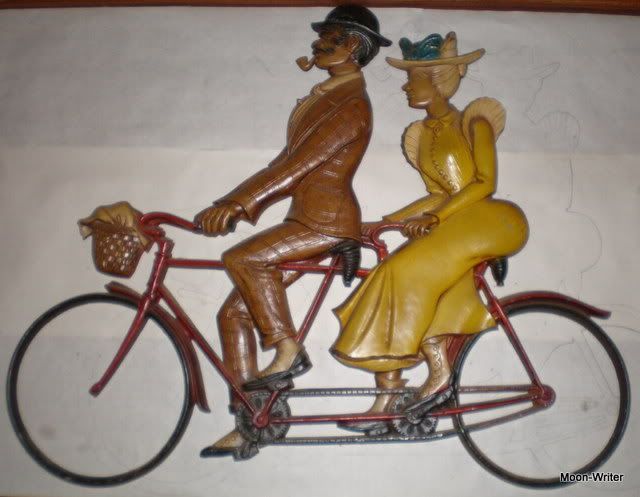

This is a metal bicycle that is 23 X 18 inches. As you can see in the pics below it actually comes apart in this one place. I want to make it out of wood. As can be seen I have outlined it and I have been stuck ever since. No matter how I try to fill it in so I can make it into a pattern I just cant. I have actually tried laying these pieces on my printer. I have placed tracing paper over it and tried to trace. I have used the long edge of crayons trying to get at least some MORE detail so I may be able to fill it in. But I can not even draw a stick man right, so I really need all the help I can get.
My question here is What am I not thinking of? There has got to be someway I can turn this into a flat paper pattern. Does anyone have any ideas for me. I know nothing about google sketch-up so that’s out. Matter of fact just about any way of doing it with a computer is out. It kinda just needs to be done some other way. I have even been thinking if there is a product like paint that I could put on it and then lay tracing paper over that, lifting off the pattern and then cleaning the bicycle.
Any help would be so appreciated. I have been wracking my brain (I know, I know, I do not have a whole lot of one LOL!!!) for the last 4 days trying to figure out something. I just know in my heart there is something easy out there that I am just not thinking of!
Again any help, thoughts, ideas would be so appreciated. I think this bicycle would look awesome out of wood!
Thanks and PEACE!!!

Oh gosh, I almost forgot, I want to make it Intarsia project, not a scroll project

Photobucket

Photobucket

Photobucket

Photobucket

-- Allison, Northeastern Ca. Remember, Amateurs built the Ark. Professionals built the Titanic!


23 replies so far

View TopamaxSurvivor's profile

TopamaxSurvivor

15065 posts in 2421 days


#1 posted 02-13-2009 07:24 AM

If I undersatand your problem correctly, laying it on a copy machince should get you a detailed picture. I have done this in the past with various objects. All the area not covered by the reflective cover come out black; so, laying a white paper over your objects should help with the quality a little. You may have to do this several times to get the entire pattern depending on the size of the original. Once you have the parts, you can adjust the size with a copy machine too. Hope this helps. good luck :-))

-- "some old things are lovely, warm still with life ... of the forgotten men who made them." - D.H. Lawrence

View TopamaxSurvivor's profile

TopamaxSurvivor

15065 posts in 2421 days


#2 posted 02-13-2009 09:04 AM

Hi Again Allison, I just happened to think about smoking the origianl piece. Use a candle to put soot all over the piece being careful not to burn it of course. After you get a good coat of soot on it, lay a paper on it to pickup the pattern being careful not to smear things around. That should do it if you can smoke it without damaging the original. I have used inletting black to find the high spots inletting stocks, but I think it would probably be too hard to clean off. You could maybe make some with charcoal?? Good Luck :=)) PS, put something down to catch the wax from the candle,, they burn fast when held sideways to smoke an item.

-- "some old things are lovely, warm still with life ... of the forgotten men who made them." - D.H. Lawrence

View robbi's profile

robbi

176 posts in 2700 days


#3 posted 02-13-2009 09:17 AM

Hey Allison,
I’m not sure exactly what detail you are looking for-I know nothing about intarsia but if you are trying for the detail on the faces and clothes and all that, how about chaulk? It’s kind of the same idea as crayons but sometimes it works better. There’s my 2 cents….I’m sure you will think of something, you do beautiful work!

-- robbi-Yadahooty!

View GFYS's profile

GFYS

711 posts in 2216 days


#4 posted 02-13-2009 09:50 AM

One could possibly import the photo into a cad program and trace it to a certain scale and print it with a grid. Do you want it 23×18?

View Allison's profile

Allison

819 posts in 2543 days


#5 posted 02-13-2009 10:17 AM

Yes I would like it the dimensions it is!

-- Allison, Northeastern Ca. Remember, Amateurs built the Ark. Professionals built the Titanic!

View Scott Michael's profile

Scott Michael

68 posts in 2141 days


#6 posted 02-13-2009 12:26 PM

Hi Allison. I do a lot of design work w/Photoshop. I’ll gladly copy the pic and see if I can print it out simply as a B&W line art picture. If I can do this, the pattern is pretty much done…......then it’s up to you to choose the wood types. All you would have to do is use the original picture as a guide to bring the 3-d look into the final project. I’ll keep you posted.

-- scmichael

View interpim's profile

interpim

1133 posts in 2203 days


#7 posted 02-13-2009 03:32 PM

You ever consider free handing using the grid method?

Take a photo of your original, second from bottom should work… draw a evenly spaced grid in it.
Draw another grid on your paper, you can increase the size on your paper. And start drawing each square individually. Once your done with all the squares, you will have a fairly accurate rendition.

Or, you could go to blockposters and make a large scale one after you get it digitally changed to black and white.

-- San Diego, CA

View Harv's profile

Harv

31 posts in 2138 days


#8 posted 02-13-2009 03:38 PM

Hi Allison

I can appreciate the problem you are having. My problem is that I can not draw a straight line with a ruler! My only suggestion is that if you can not figure out something yourself, you can have one of the fine Intarsia artists that are online draw it out for you. Im afraid I am doomed to create pieces from other artists. You do great work and Im sure you will come up with something you are happy with.
Harv

View Douglas Bordner's profile

Douglas Bordner

3971 posts in 2808 days


#9 posted 02-13-2009 07:27 PM

Photobucket

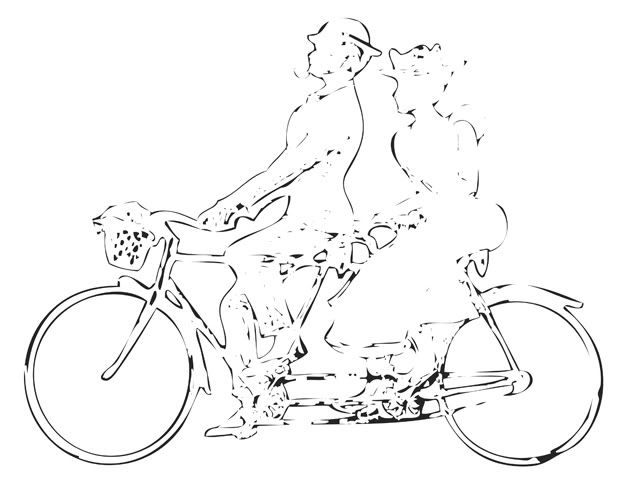

I saved you an 18x24 pdf document that you can print out at FedEx Office (formerly Kinko’s) on the architectural plotter, or they can scale the document to what ever standard paper size you are looking for.
Sorry, Ally, you’ll still have to draw in the individual pieces-but it’s a start.

-- "Bordnerizing" perfectly good lumber for over a decade.

View TopamaxSurvivor's profile

TopamaxSurvivor

15065 posts in 2421 days


#10 posted 02-13-2009 07:35 PM

Hmm! That is interesting. How hard was it to get from the photo to pdf?

-- "some old things are lovely, warm still with life ... of the forgotten men who made them." - D.H. Lawrence

View GFYS's profile

GFYS

711 posts in 2216 days


#11 posted 02-13-2009 07:39 PM

heh, you have more help than you need.

View Douglas Bordner's profile

Douglas Bordner

3971 posts in 2808 days


#12 posted 02-13-2009 08:48 PM

Photoshop:
Image>Adjust> Levels
Image>Adjust> Brightness Contrast
(knocks out the background)
Filter>Stylize>Find Edges
Image>Adjust> Levels
Image>Adjust> Brightness Contrast
Image>Mode>Bitmap>50% Threshold.

Illustrator:
File>Place object>Save Photoshop file as object
Object>Live Trace>Tracing Options>Black and White> Levels 157>Ignore white
File>Document settings>18×24 Landscape
Constrained Enlargement (Drag from corner with Shift Alt keys down.)
File>Save As: PDF

Voilá!

-- "Bordnerizing" perfectly good lumber for over a decade.

View Allison's profile

Allison

819 posts in 2543 days


#13 posted 02-13-2009 10:46 PM

Wow Thank you!!!!!

-- Allison, Northeastern Ca. Remember, Amateurs built the Ark. Professionals built the Titanic!

View TopamaxSurvivor's profile

TopamaxSurvivor

15065 posts in 2421 days


#14 posted 02-13-2009 11:49 PM

Thanks for the reply Doug. Sounds easy enough in Photoshop :=))

Allison, just being curious, may I ask what this outline drawing gives you that yours didn’t have other than the hat, arms and jaw lines?

-- "some old things are lovely, warm still with life ... of the forgotten men who made them." - D.H. Lawrence

View Douglas Bordner's profile

Douglas Bordner

3971 posts in 2808 days


#15 posted 02-14-2009 08:46 AM

Photobucket

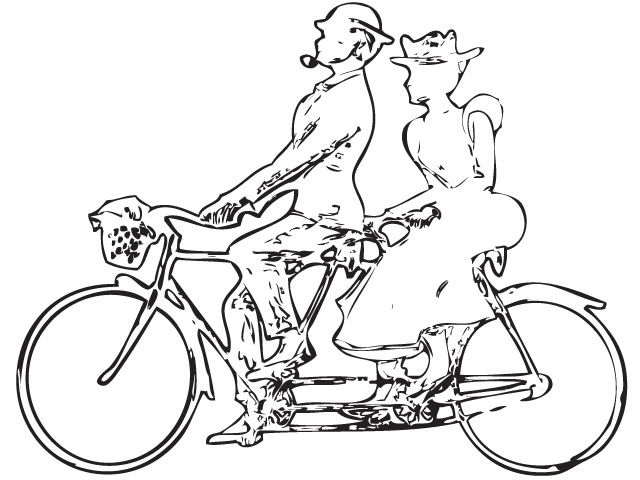

I choked the black back some more so it would be easier to pencil in individual pieces of wood. A full scale pdf is here.

At one point in this, TopamaxSurvivor, I thought the same thing. She already has a fine line contour of the outside shape. I’ve never done intarsia, but at minimum with the pdf you can print as many first generation, full scale digital prints as you want. With a little effort you could print in tiles at scale to have something to paste to the wood you’ll cut out. Or you could print a full scale print, pen in details and make copies (or a scan) of that.
With enough fiddling around you wouldn’t be cutting wood ‘til next November :^}
Anyway, I had fun on the a snowy indoors day even if it was a boondoggle.

-- "Bordnerizing" perfectly good lumber for over a decade.
