Two 'Whatizzits" from the Poopiekat Workshop:

  • Advertise with us

« back to Hand Tools forum

Forum topic by poopiekat posted 07-08-2012 09:34 PM 5229 views 0 times favorited 10 replies Add to Favorites Watch
View poopiekat's profile

poopiekat

4150 posts in 3039 days


07-08-2012 09:34 PM

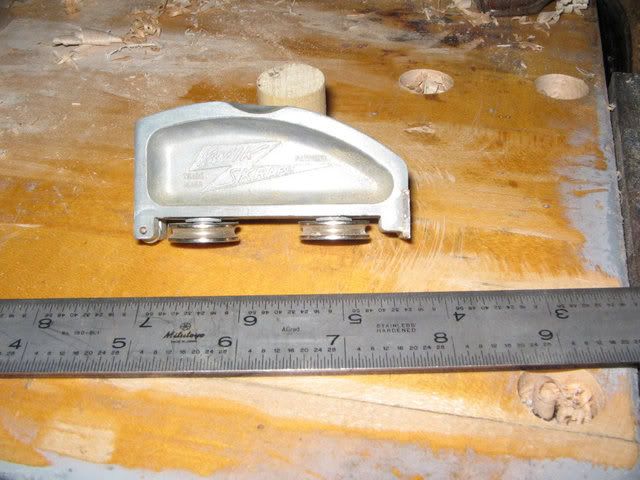

Ok.. I’m baffled, sorta, about what exactly these two little tools are. Dunno how they even came to be in my toolbox. anyway… here we go: 004-11
although hard to see perhaps in the photo, the name embossed into this is “QUIK-SCRAPE”. Now, to describe, those little wheels turn freely, it’s cast aluminum, and there is a deadly sharp little beveled scraper on the end. I thought, maybe removing putty from a bedded window glass, but when I actually got a chance to try it, well, it didn’t work so well for that purpose. Any idea?

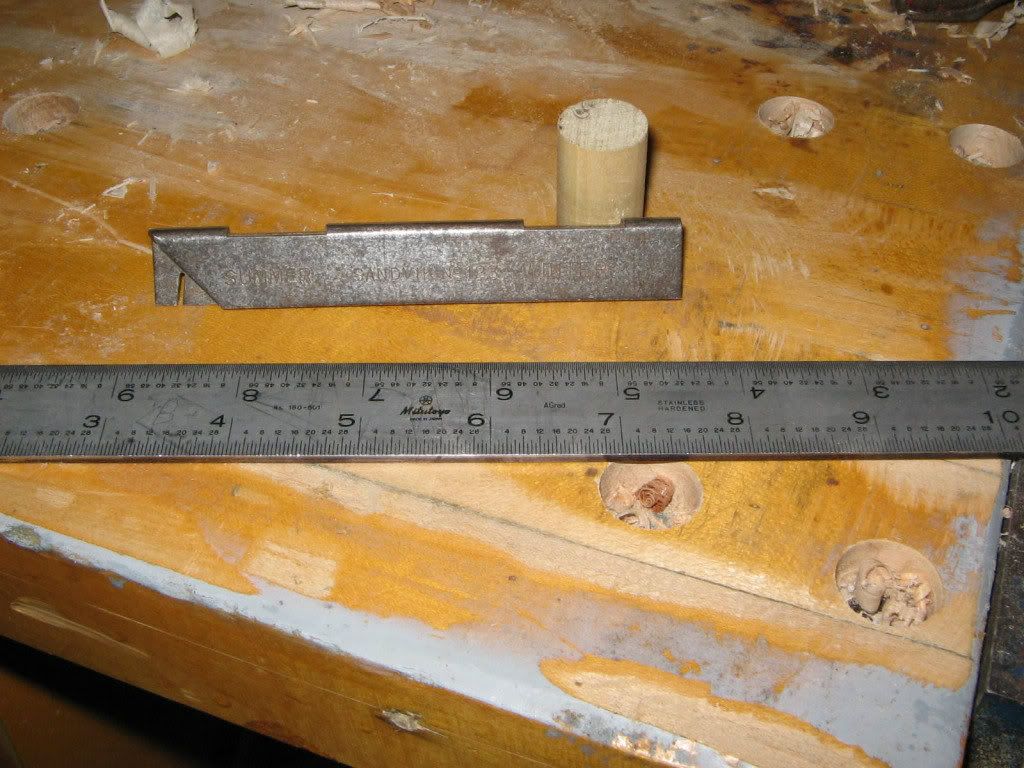

Now, #2: This is a “Sandvik #123” hmm, okay, no prob, go straight ot Google, but all the hits were for carbide tool holders, presumably for machine tool processing, and definitely for metal work. This item is simply .050” steel pressed over on itself, with two notches cut into the fold. The notches are marked ‘Summer’ and ‘Winter’ and of course the obligatory French markings for Canada on the other side. 003-17
Photobucket
Any idea? Please, no guesses that the item is a Mitutoyo scale…guffaw, guffaw. This Sandvik item, might it be one small part of something bigger? Any guidance appreciated!

-- Einstein: "The intuitive mind is a sacred gift, and the rational mind is a faithful servant. We have created a society that honors the servant and has forgotten the gift." I'm Poopiekat!!


10 replies so far

View mtenterprises's profile

mtenterprises

922 posts in 1997 days


#1 posted 07-08-2012 10:13 PM

The strange things that sometimes appear in our tool boxes. The shop elves sometimes drop them in the wrong tool box in the wrong shop in the wrong town in the wrong state just to cause a state of confusion.
MIKE

-- See pictures on Flickr - http://www.flickr.com/photos/44216106@N07/ And visit my Facebook page - facebook.com/MTEnterprises

View JJohnston's profile

JJohnston

1613 posts in 2595 days


#2 posted 07-08-2012 10:26 PM

The concave edged wheels on the first one look like the tool for pressing the rubber spline into the groove around the perimeter of a screen door/window. Maybe the scraper is actually for cutting window screen to size. Is the tiny wheel on the left a glass cutter?

The second one almost has to be part of a larger assembly. The difference between summer and winter is around 2”; I know from experience that the length of an average-sized bridge (steel or concrete) expands and contracts that much over a cycle of seasons. For something smaller, there almost has to be some kind of leverage, or reduction, to make settings that far apart useful. Or, lawnmower settings?

-- "A man may conduct himself well in both adversity and good fortune, but if you want to test his character, give him power." - Abraham Lincoln

View David Kirtley's profile

David Kirtley

1286 posts in 2302 days


#3 posted 07-08-2012 10:46 PM

Second one looks like a holder for straight edge razor blades like a box cutter. I will go with spline roller on first one.

-- Woodworking shouldn't cost a fortune: http://lowbudgetwoodworker.blogspot.com/

View Sylvain's profile

Sylvain

633 posts in 1803 days


#4 posted 07-09-2012 02:38 PM

I wander if the notch in the “winter summer” thing is genuine.
Otherwise it might have been modified as a crude instrument to give set to saw blades to mimick those ones.

on the picture it is difficult to see the other inscriptions.

-- Sylvain, Brussels, Belgium, Europe - The more I learn, the more there is to learn

View bandit571's profile

bandit571

12982 posts in 1987 days


#5 posted 07-09-2012 02:50 PM

Quik-Scraper: For cleaning out old putty around a window glass. Small wheel rides on the glass, two large ones rides along the edge of the wood, scraper digs out the old glazing. Wheels are there to keep one from digging into wood. Push, or pull along. Start in a corner, and pull towards the other corner.

As for #2: Seems there should be more parts to this one….....

-- A Planer? I'M the planer, this is what I use

View poopiekat's profile

poopiekat

4150 posts in 3039 days


#6 posted 07-09-2012 09:42 PM

Thanks, Everyone, for your great suggestions!
Looks like the Sandvik item is going to be the greater of the two mysteries, but I’m feeling pretty certain that Bandit571 is right on track with his reply on the Quik Scrape,though I didn’t get a very good result with mine; maybe somebody can suggest how to tune it up!
I’m sure most of you have been in a similar situation before… not sure whether to toss things into a yard sale box or hang onto it in case it is a part of something else. I’ll do a evaporust treatment on the Sandvik and post a few more pix of the result, either tonight or tomorrow. Thanks again, all!

-- Einstein: "The intuitive mind is a sacred gift, and the rational mind is a faithful servant. We have created a society that honors the servant and has forgotten the gift." I'm Poopiekat!!

View JayT's profile

JayT

4369 posts in 1515 days


#7 posted 07-09-2012 09:47 PM

According to it’s patent the Kwik Skrape is designed to remove paint from panes on glazed windows. Kind of interesting reading after you fumble through all the bureaucrat-ese.

-- "Good judgement is the result of experience. A lot of experience is the result of poor judgement."

View poopiekat's profile

poopiekat

4150 posts in 3039 days


#8 posted 07-14-2012 12:25 AM

Thanks, JayT!! I think you nailed it on the Quik-Scrape! This tool probably got used a lot by painters to clean up mistakes on window sash and mullions. Easier than masking tape too, for sure! LOL, it almost worked for scraping putty out of the sashes…

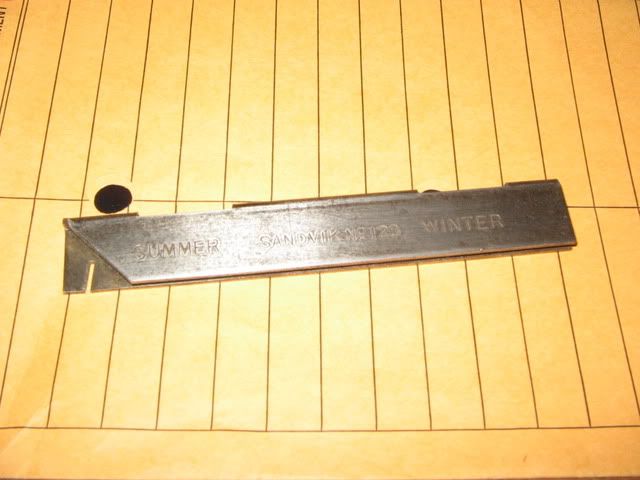

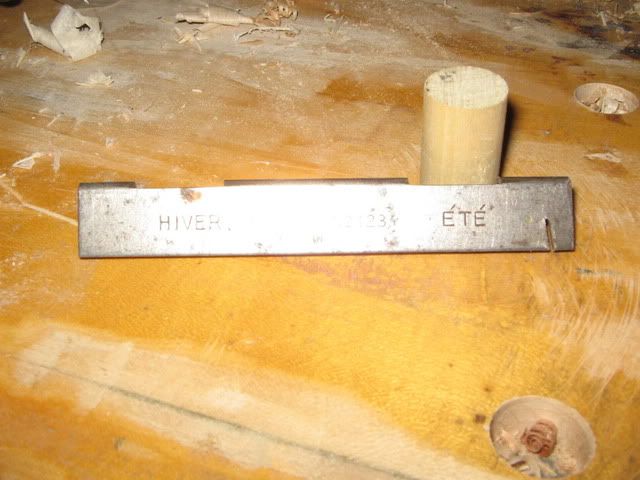

Here’s a few more pics of the Sandvik No. 123. Evaporust didn’t do the job, it must be stainless steel. So I cleaned it up a bit with stearated #320 grit paper. Here goes: 006-5 004-12 Photobucket
I think I recall buying this thinking that it was a scraper holder. most of my card scrapers are Sandvik, it seemed natural. But damn… that “Winter/Summer” thing…freaks me out. ANYONE... got more info on this li’l tool? Hey, now I see in Google there is somebody else with this same kind of tool, asking in different forums if somebody can identify theirs. Weird!

-- Einstein: "The intuitive mind is a sacred gift, and the rational mind is a faithful servant. We have created a society that honors the servant and has forgotten the gift." I'm Poopiekat!!

View Tootles's profile

Tootles

755 posts in 1806 days


#9 posted 07-14-2012 06:53 AM

Why not try e-mailing Sandvik directly?

-- I may have lost my marbles, but I still have my love of woodworking

View FredFritzson's profile

FredFritzson

1 post in 64 days


#10 posted 04-27-2016 06:52 PM

As for the first picture, all the details of the design and use can be found at http://pdfpiw.uspto.gov/.piw?Docid=2787056&idkey=NONE&homeurl=http%3A%252F%252Fpatft.uspto.gov%252Fnetahtml%252FPTO%252Fpatimg.htm where the patent application can be found.

This clever little gem is a window scraper designed to remove paint along the edge of a glazed window leaving a smooth, uniform edge without the sometimes uneven results.
