My rehabbed Bailey #5 Using gun blue

  • Advertise with us

« back to Hand Tools forum

Forum topic by SisQMark posted 04-26-2012 03:03 AM 2244 views 0 times favorited 24 replies Add to Favorites Watch
View SisQMark's profile

SisQMark

382 posts in 1320 days


04-26-2012 03:03 AM

Topic tags/keywords: plane bailey 5 plane restore

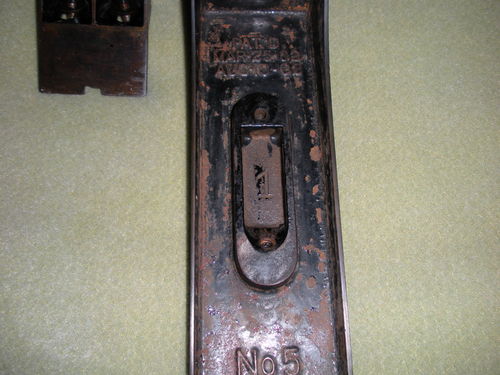

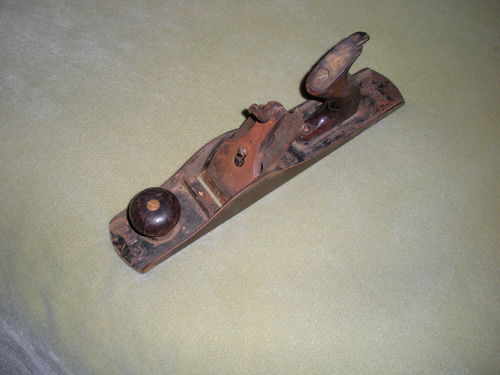

Well today I finished rehabbing my old Bailey #5 planner. It only took me 2 days to complete. This was handed down to me by 3 generations of wood workers in my family, one to the next with my Dad handing it off to me. It looked terrible, here is what I started with.

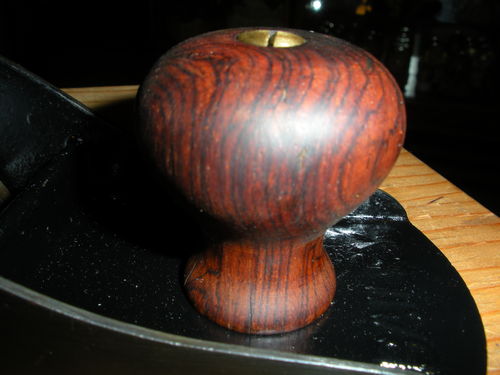

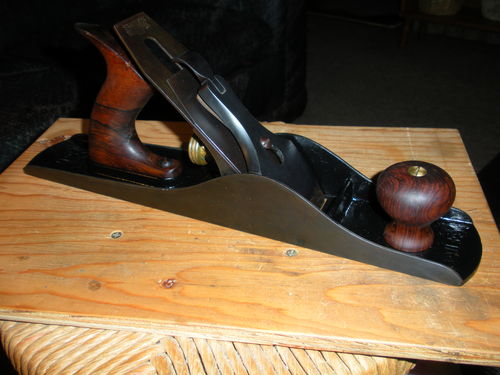

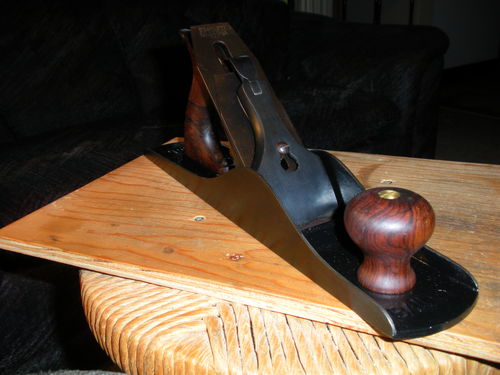

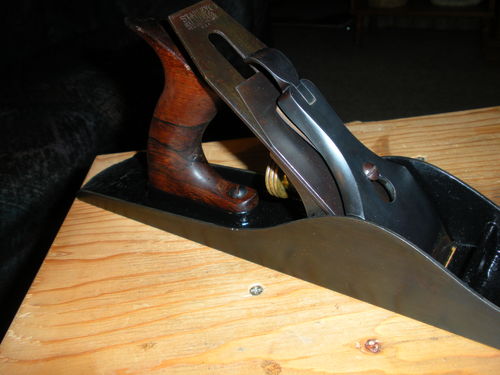

You can see I had my hands full to restore it. I painted the foot (I think that’s what it’s called) after some sanding. I also did something really different, I had some gun bluing solution left over from a rifle restore I did, so I blued my plane. I really think it turned out awesome! I just love it! The wooden handles look like rosewood, beautiful wood though. I even blued the screws & shined up the brass. Here is the final restore pictures.

As you can see I put some time into doing this as well as I could. The big handle was broken in half, so I used some tight bond 3 to glue it up. The frog is broken but it still holds the blade in. I need the part that allows the blade to move side to side, but over all, i’m happy with it. Thank you for looking, let me know what you think of it & if there is something missing I am unaware of. Have a good evening all.
Mark~

-- Don't waste today, it is yesterdays tomorrow!~SisQMark


24 replies so far

View David Kirtley's profile

David Kirtley

1281 posts in 1718 days


#1 posted 04-26-2012 05:28 AM

The lateral adjuster isn’t that big of a deal. The early planes didn’t have them. Honestly, I wouldn’t change a thing. Yes, you could replace parts but then it wouldn’t be the plane you had handed down. They are not that expensive so just buy another one if you want one that is perfect.

-- Woodworking shouldn't cost a fortune: http://lowbudgetwoodworker.blogspot.com/

View SisQMark's profile

SisQMark

382 posts in 1320 days


#2 posted 04-26-2012 06:01 AM

You know David, your right. It is exactly the way I received it from my Dad, except restored. Have a good night.
Mark~

-- Don't waste today, it is yesterdays tomorrow!~SisQMark

View stefang's profile

stefang

13524 posts in 2054 days


#3 posted 04-26-2012 09:04 AM

Great job on this. Looks almost new. Wonderful family heirloom.

-- Mike, an American living in Norway.

View ShipWreck's profile

ShipWreck

536 posts in 2472 days


#4 posted 04-26-2012 09:10 AM

I’d love to see that plane in better light. That bluing is awsome. Nice job sisQmark. :)

View David Craig's profile

David Craig

2135 posts in 1828 days


#5 posted 04-26-2012 09:29 AM

Beautiful rehab Mark. Three generations would be as proud as the next three are going to be.

-- There is little that is simple when it comes to making a simple box.

View SisQMark's profile

SisQMark

382 posts in 1320 days


#6 posted 04-26-2012 09:35 AM

Thank you for the praise. The bluing just came to me, I thought it would look cool & give it another element of uniqueness that I’ve never seen on a plane. I love it, it looks really good IMHO.
Mark~

-- Don't waste today, it is yesterdays tomorrow!~SisQMark

View Martyroc's profile

Martyroc

2708 posts in 1026 days


#7 posted 04-26-2012 10:20 AM

That came out great Mark. Looks like the extensive time & effort you put into that paid off.

-- Martin ....always count the number of fingers you have before, and after using the saw.

View racerglen's profile

racerglen

2363 posts in 1500 days


#8 posted 04-26-2012 10:26 AM

Very nice Mark !
A “new” family treasure.

-- Glen, Vernon B.C. Canada

View Don W's profile

Don W

15404 posts in 1287 days


#9 posted 04-26-2012 10:32 AM

it came out great. I love the grain in the wood. Nice job.

-- Master hand plane hoarder. - http://timetestedtools.com

View jaykaypur's profile

jaykaypur

3428 posts in 1128 days


#10 posted 04-26-2012 10:51 AM

You did a great job on this restore. It’s the same tool but…...........looks totally different. Every time I see old well-used tools, I cant help thinking about the movie Gran Torino with Clint Eastwood and his workshop.

You should be very proud of this job.

-- Use it up, Wear it out --------------- Make it do, Or do without!

View Dave's profile

Dave

11196 posts in 1560 days


#11 posted 04-26-2012 11:16 AM

Nice job well done.

-- Superdav "No matter where you go - there you are." http://chiselandforge.com

View Roger's profile

Roger

15039 posts in 1524 days


#12 posted 04-26-2012 01:44 PM

Beautiful restore

-- Roger from KY. Work/Play/Travel Safe. Kentuk55@bellsouth.net

View CharlieM1958's profile

CharlieM1958

15712 posts in 2938 days


#13 posted 04-26-2012 01:55 PM

Excellent restoration…. it looks fantastic!

If you wanted to use it, I would look for a cheap for-parts plane on eBay with a good frog and lateral adjustment lever, and swap out your broken one. But as an heirloom, it’s perfect just the way it is.

-- Charlie M. "Woodworking - patience = firewood"

View kaschimer's profile

kaschimer

89 posts in 1109 days


#14 posted 04-26-2012 02:41 PM

Great job! I, too, am working on restoring a #5. I’m not that creative though… lol well done

-- Steve, Michigan - "Every piece of work is a self portrait of the person who accomplished it - autograph your work with excellence!" - Author unknown

View Bill White's profile

Bill White

3532 posts in 2680 days


#15 posted 04-26-2012 03:00 PM

Well done sir. I would keep an eye open for a replacement frog (and BE SURE to keep the original).
Bill

-- bill@magraphics.us
