Blog entry by Kerry Drake posted 05-28-2010 04:02 PM 1416 reads 0 times favorited 9 comments Add to Favorites Watch

A few months back a member of my extended family (on my wife’s side) decided to sell their house and move south.  In the basement of the house was a collection of old tools from a grandfather who had passed away, and I bought a whole kitten-caboodle for $100.00 (see This Post from January).

Well, hidden in that lot was a little filthy dirty block plane that I didn’t really pay much attention to.  However I recently bought a set of dremel cleaning bits and decided to clean up some of this older stuff.

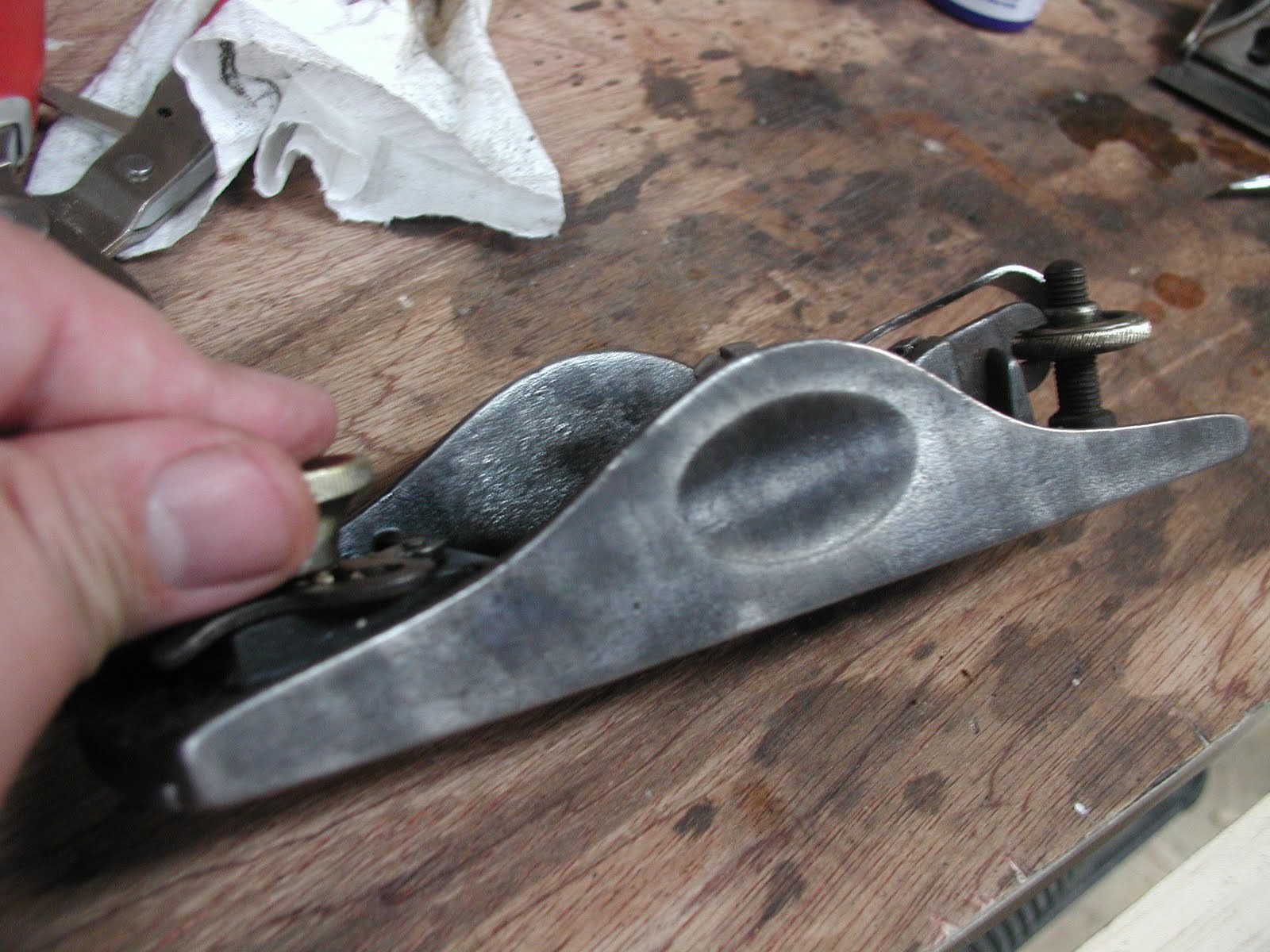

After really looking at this for first time I noted some unusual things about this block plane.  It has a lateral adjuster for the blade, the blade depth wheel is oriented horizontally:

And little tiny knob up front has some kind of adjuster I have never seen on a plane before:

I disassembled the plane, blew the dust out, and took every piece of it to my drill press that has a brass wire cleaning wheel installed in it right this second (I got it at the Big Blue store for $0.70).  After about 15 minutes I had everything de-gunked and pretty much rust free.

Imagine my surprise when I got enough gunk off of the cap iron to see the engraving stating this was a vintage Stanley Sweet Heart block plane.  I’m not sure exactly what the model is, I am pretty sure it is not a #102.

I’m also pretty sure it still works.

-- Kerry Drake, Loudon NH, http://thenickedfinger.wordpress.com/



9 comments so far

View Toolz's profile

Toolz

1004 posts in 3205 days


#1 posted 05-28-2010 04:24 PM

Sweet!

-- Larry "Work like a Captain but Play like a Pirate!"

View a1Jim's profile

a1Jim

115202 posts in 3040 days


#2 posted 05-28-2010 04:41 PM

enjoy they should last for years and years.

-- http://artisticwoodstudio.com Custom furniture

View PurpLev's profile

PurpLev

8523 posts in 3111 days


#3 posted 05-28-2010 05:55 PM

nice. looks like a very good user plane in great condition.

FYI: the adjuster on the front know is to open/close the toe to allow for finer/heavier cuts to go through the mouth opening, for a more controlled work.

-- ㊍ When in doubt - There is no doubt - Go the safer route.

View Dennisgrosen's profile

Dennisgrosen

10850 posts in 2578 days


#4 posted 05-28-2010 06:35 PM

niiiice score
now restore all the other goodies
so we can envy you…....lol

Dennis

View Shopsmithtom's profile

Shopsmithtom

788 posts in 3658 days


#5 posted 05-28-2010 07:30 PM

Nice job. If it’s 6” long it’s a Stanley #18 & if it’s 7” long, it’s a #19. You might want to check out this site. You can go through the planes by number & the pics are good. http://www.hansbrunnertools.gil.com.au/Stanley%20by%20numbers/Stanley%201.htm

Careful not to get addicted to these things. -SST

-- Accuracy is not in your power tool, it's in you

View Kent Shepherd's profile

Kent Shepherd

2717 posts in 2749 days


#6 posted 05-28-2010 08:27 PM

Nice job on the restoration. That can be so satisfying

Thanks

-- http://shepherdtoolandsupply.com/

View OttoH's profile

OttoH

891 posts in 2473 days


#7 posted 05-28-2010 09:51 PM

Awsome plane! Are there any other tools you have overlooked in there?

-- I am responsible for how I respond to everything in my life - - Deadwood SD

View stefang's profile

stefang

15512 posts in 2797 days


#8 posted 05-29-2010 01:11 AM

Great find and the same goes for the restore. Enjoy.

-- Mike, an American living in Norway.

View deeman's profile

deeman

379 posts in 2543 days


#9 posted 05-29-2010 03:18 AM

That a wonderful find. Thats almost as good as Christmas

-- Dennis Trenton Ohio And life is worth the living just because He lives!
