Chain Vise Kit

As I was blogging about my split Roubo bench build using BenchCrafted hardware, Jim (Boatman53) offered me a prototype of his chain drive for the leg vise. This is a chain that goes from the chop, through the front leg and then down to the parallel beam. It is really clever idea that eliminates the need for the parallel pin.

I’ve been using the chain vise for several months now and here are my thoughts.

Materials:

Obviously the kit comes with everything needed. I just want to add a note to the quality of the components. They are all heavy duty and well machined. I have no doubt that they will last for the generations that my bench should.

Installation:

There is really not much too it. However, since I was almost done with Bench Crafted leg vise I finished that and then installed the Chain Vise as a retro-fit. I drilled a 5/8” hole through the chop and front leg. The chop gets another 1” counter bore.

I did mortise the top sprocket but you can more easily do a surface mount.

Next, I cut out a notch on the top of the parallel beam to secure the chain attachment bracket. Once you thread the chain, you can adjust the tension to keep the chop parallel. You may have to remove some chain links depending on the length that you need.

Operation:

The only caveat to this system is that there seems to be a little more lateral play in the parallel guide. I copied Derek Cohen's idea placing an adjustable guide for the beam.

In the end, it is mindless and that is the point. Once you set the tension the chop can provide tremendous clamping force at any position. I have not noticed any detriment in the action or smoothness of the vise. It works.

Conclusion:

BenchCrafted now has their Crisscross for pinless leg vise operation. It looks pretty cool but requires a large mortise in the leg and vise. The real obstacle for me is that the Cricross requires a full length chop which I do not have. I really don’t want to make a new chop. The chain vise requires neither of these and is a lot easier to install.

For more complete info you can check out his website http://ancorayachtservice.com/?page_id=196

————————————————————————————————————————————————————————————

-- It isn't the mountains ahead to climb that wear you out; it's the pebble in your shoe. - Muhammad Ali




View lysdexic's profile

lysdexic

4749 posts in 1129 days



15 comments so far

View ksSlim's profile

ksSlim

928 posts in 1396 days


#1 posted 407 days ago

Clean, no fuss installation, great design.
Wish I’d have thought of that design first

-- Sawdust and shavings are therapeutic

View Boatman53's profile

Boatman53

795 posts in 703 days


#2 posted 407 days ago

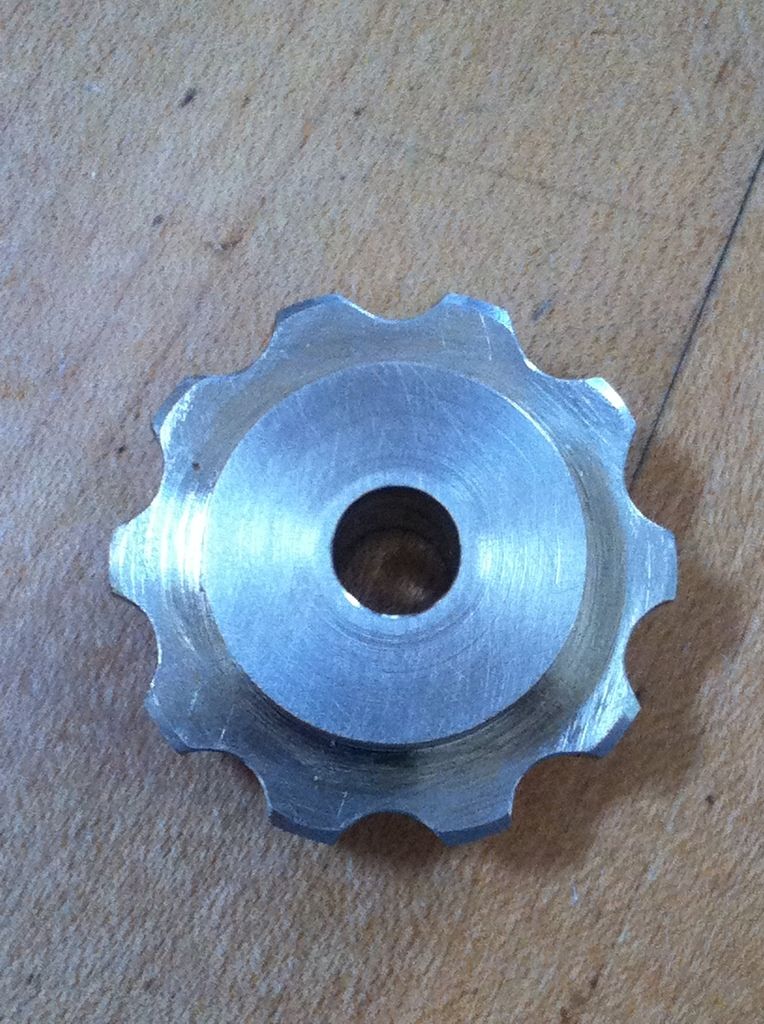

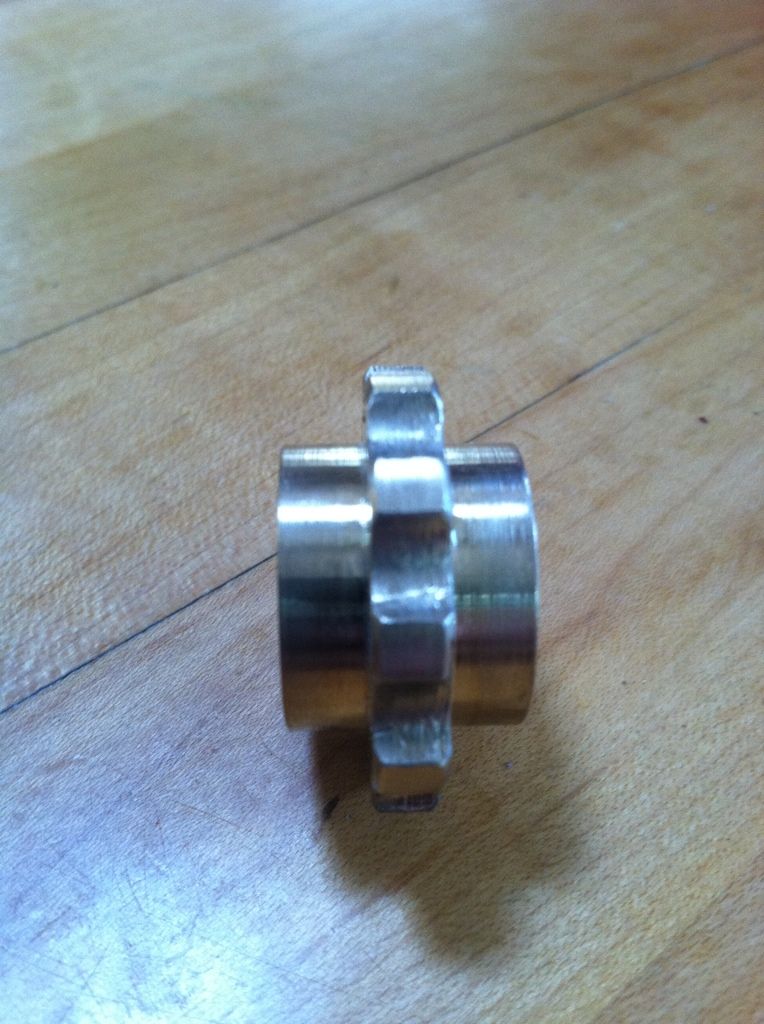

Thanks Scott, for your kind review. I would like to add again that the kit Scott installed was pre production and just had a roller at the bottom. While it worked I was concerned about crushing chain links. The sprockets now look like this.



And yes I did up grade Scott’s sockets, he just didn’t photograph them.
Jim

-- Jim, Long Island, NY Ancorayachtservice.com home of the chain leg vise

View woodklutz's profile

woodklutz

221 posts in 1275 days


#3 posted 407 days ago

Your vise is nicer than my whole shop. Great work, great review.

-- honing my craft one mistake at a time.

View balidoug's profile

balidoug

363 posts in 985 days


#4 posted 407 days ago

Hoping to start one of these next year. I’ll be using your posts as a reference for sure.

-- From such crooked wood as that which man is made of, nothing straight can be fashioned. Immanuel Kant

View Mauricio's profile

Mauricio

6694 posts in 1658 days


#5 posted 407 days ago

Great design. The other advantage to this parallel guide is that it can be retrofit to any leg vise even those with wooden screws. Also it lets you clamp a long board below the screw which the BC Crisscross cant do.

-- Mauricio - Woodstock, GA - "Confusion is the Womb of Learning, with utter conviction being it's Tomb" Prof. T.O. Nitsch

View terryR's profile

terryR

2591 posts in 815 days


#6 posted 407 days ago

Thanks for the review, Scott…I’m certain if Jim made the parts, they are top quality.

Sure looks nice and user friendly…If my wheels don’t help my leg vise operate smoothly, I’m gonna have to save some cash, and email Jim to place an order! :)

-- tr ...see one, do one, teach one...

View Tugboater78's profile

Tugboater78

927 posts in 698 days


#7 posted 407 days ago

Iam nowhere near getting started building me a bench, still in the mental planning stage,. After reading through your blog and admiring your beautiful bench, this looks like one of the areas where i will make financial room to install especially with current back problems, using the pin for the glide was not appealing to me.

-- Justin - the tugboat woodworker - " nothing changed me like the first shnick from a well sharpened, decent hand plane"

View yuridichesky's profile

yuridichesky

310 posts in 470 days


#8 posted 407 days ago

I have to say once again: perfect!

And I have a question: clamping pressure tightens the chain so it tries to pull bottom roller/sprocket away, and so those 8 screws have to be pretty well secured to hold it inplace. Did you ever need to re-tighten those 8 screws? Do you think that softwood-made legs (pine in my case) will work here?

-- Yuri (10x4 -- yeah, that's my tiny shop!)

View Boatman53's profile

Boatman53

795 posts in 703 days


#9 posted 407 days ago

Hi Yuri… I did not try it in pine. I did install one on a fir leg and tightened it far more than necessary, nothing moved. For pine legs I would definitely drill undersized pilot holes and perhaps use longer screws. Depending on the size of the leg it could be through bolted on the corner holes and the other holes with screws. The first one I made I through bolted because I just didn’t know the forces. Depending in the distance between the beam and the screw it can be 600 pounds that translates to less than 100 pounds per screw. The force is also at a 45 degree angle not straight out.
Jim

-- Jim, Long Island, NY Ancorayachtservice.com home of the chain leg vise

View yuridichesky's profile

yuridichesky

310 posts in 470 days


#10 posted 406 days ago

Thank you, Jim.

Though I’m aiming now to the pinned design (sending you kit up here to Russia will be way too costly), but I’m keeping in mind possible retrofit because there’re chances that I’ll to the US for a few days this summer with a business trip. How much time beforehand shall I contact you to be sure I won’t miss it during my trip?

-- Yuri (10x4 -- yeah, that's my tiny shop!)

View Boatman53's profile

Boatman53

795 posts in 703 days


#11 posted 406 days ago

Yuri….I ship them in a small priority mail flat rate box. It only takes a couple of days to anywhere in the US. I’ll check with the Post Office it might not be too bad unless you have additional taxes. I’ve shipped to Austraila, New Zealand, England, and Austria all were but 12$ USD additional for the shipping.
Jim

-- Jim, Long Island, NY Ancorayachtservice.com home of the chain leg vise

View yuridichesky's profile

yuridichesky

310 posts in 470 days


#12 posted 406 days ago

Jim, thanks a lot. PM-ed to you.

-- Yuri (10x4 -- yeah, that's my tiny shop!)

View AnthonyReed's profile

AnthonyReed

3697 posts in 947 days


#13 posted 406 days ago

I don’t think Jim could have found a stronger endorsement for his stellar product. Nice thing keeping it in the LJ family too.

-- ~Tony

View Brit's profile (online now)

Brit

4939 posts in 1349 days


#14 posted 404 days ago

Nice review Scott and a great design Jim. Congrats to both of you.

-- Andy -- Old Chinese proverb say: If you think something can't be done, don't interrupt man who is doing it.

View Boatman53's profile

Boatman53

795 posts in 703 days


#15 posted 404 days ago

Thanks Andy and Tony.
Jim

-- Jim, Long Island, NY Ancorayachtservice.com home of the chain leg vise
