Workshop #1: Lumber Storage

  • Advertise with us
Blog entry by randi posted 09-28-2010 01:47 PM 2729 reads 2 times favorited 6 comments Add to Favorites Watch
no previous part Part 1 of Workshop series no next part

P9262797w

I have been totally re-doing one of my fathers old workshops.
What one would call a full woodshop.
Aprox size 24×20. Ceiling height at one end is 14 ft, pitches down to about 10ft.
Major issue right now is storing materials up and out of the way.
Searched around online/on here, found a couple of cool ideas for shelves built with very little in the way of materials.
This will be a hybrid of the two.
On the wall that is 14 ft tall, I made 3-6ft long “shelf supports”
They are 2×4s laminated together with glue and screws with 5/8” plywood.
You leave a pocket wherever you want to make a shelf, the soze of a 2×4.
In my case I angled the pockets 5 degrees upward. This keeps round things from rolling, and seems to also focus the load more on the uprights, rather than the shelves.

Also the shelves are removeable they just sit in the pockets a nice friction fit, really I could have added more, as many on here have, but I ran out of 2×4’s and was trying to use materials I had on hand.

For the upper shelves I just used 2×4’s cut to about 16” total, and the lower ones I used scraps from the 5/8” plywood laminated with some 1/4” luan in between and they ended up being 24” long total.

In the spaces I between where the lumber is now I plan on drilling 1/2” holes for some round bar, angled 5 degrees and I can store even more stuff.
Lag Bolted each upright 4 times. drilled a countersunk hole with a forstner bit and pilot hole through the upright into the stud. They are on 32” centers.
I left enough space below to store 4ft wide sheet goods.

SO far so good, I put ALOT of heavy PT lumber on the top shelf just to be a sadist and see what happens.
the rest of what is on there is fairly heavy as well.
This isnt even half of the stock that I have right now, so more of the same will liekly go on the wall to the left up high to preserve floorspace.
Below is my drop zone, all the small bits and random pieces of sheet stock all placed on a 14 foot high series of shelves re-purposed from their former life as storage for cardboard boxes.

P9262798w

-- "A computer lets you make more mistakes faster than any invention in human history - with the possible exceptions of handguns and tequila." ~Mitch Ratcliffe



6 comments so far

View Camper's profile

Camper

232 posts in 2318 days


#1 posted 09-29-2010 03:38 AM

Nice design on the shelves. Can you post a close up picture of the pockets? Also I am not sure that I followed you on the “round bar” part. Thanks for sharing.

-- Tampa-FL

View Abbott's profile

Abbott

2570 posts in 2766 days


#2 posted 09-29-2010 03:54 AM

Looking good.

-- Ohh mann...pancakes and boobies...I'll bet that's what Heaven is like! ♣ ♣ ♣ ♣

View randi's profile

randi

43 posts in 2283 days


#3 posted 09-29-2010 01:32 PM

http://lumberjocks.com/projects/5688
Camper sort of a hybrid of what this guy did, but with less pockets.

As far as the round bar, round, steel stock 1/2” maybe 12” in length will be installed for more shelves for lighter items, like pipe/tubing etc…
I plan to drill into the face of the brackets, 5 degree angle upward, and make a series of holes for versatility.

I should have done this on the drill press prior to install, but I don’t even have the round bar yet.
I saw an example of this on here, but cannot find it.

-- "A computer lets you make more mistakes faster than any invention in human history - with the possible exceptions of handguns and tequila." ~Mitch Ratcliffe

View a1Jim's profile

a1Jim

115202 posts in 3040 days


#4 posted 09-29-2010 02:19 PM

Great Idea wood storage can be a big problem.

-- http://artisticwoodstudio.com Custom furniture

View 8iowa's profile

8iowa

1546 posts in 3224 days


#5 posted 09-29-2010 02:51 PM

Great use of available space, just be careful on that ladder tho.

-- "Heaven is North of the Bridge"

View randi's profile

randi

43 posts in 2283 days


#6 posted 09-29-2010 07:50 PM

Good point.

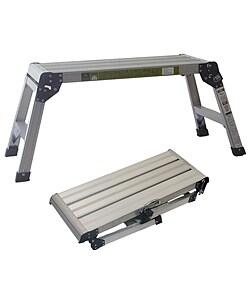

I use a folding aluminum platform for alot of work including accessing this rack.
Much like this one much safer than a ladder in my opinion:

Since I’m a little over 6ft tall, can reach the top layer of lumber easily on that.
Not a big fan of ladders.
Flashbacks to dads home built 20 ft wooden ladder that was used quite a bit when I was a child I guess. Hahha

-- "A computer lets you make more mistakes faster than any invention in human history - with the possible exceptions of handguns and tequila." ~Mitch Ratcliffe
