Arts and Crafts Mirror

  • Advertise with us
Project by BigRedKnothead posted 06-26-2013 09:01 PM 1306 views 2 times favorited 15 comments Add to Favorites Watch

Just an A&C mirror I made for some friends. I take no credit for the design. I’ve seen many A&C mirrors/picture frames with these elements. It’s definitely A&C, but it has Greene and Greene/Asian influence as well. The mirrors are just 2 store bought 24×30”. Started with those, and just tried to get the the proportions right.

As you can see from my work, I’m really fond of tapered legs/sides and QSWO. I wouldn’t mind switching it up a little but people keep asking for this….so I just give em what they want.

Construction: With flat pieces like this, I like to use different thicknesses of stock to add dimension. This piece has 5/4, 4/4, and 1/2”. All of the joints are pinned mortise and tenon. I use power tools for all the milling and mortise and tenon work. Then I used hand planes for the taper and smoothing. I love NOT using sandpaper.

The finish is dark walnut danish oil and satin lacquer. I was nearly done when I realized I hadn’t tried anything new with this piece(personal rule). So I took the advice of fellow LJ pintodeluxe and rubbed it out with paste wax and steel wool. I find that stuff to be a little finicky, but I like the end result.

Tried to get some decent pics. It’s hard to take good pics of a mirror without looking like the dork in the reflection. Oh well.

I bet my friends will like it. If they don’t, I’ll just keep it;-)

-- Red -- “I'm a furniture maker, I'm a woodworker, and I think woodworker's a very good word, and I like the word, it's an honest word, and that is what I am, a woodworker." --Maloof





15 comments so far

View ShaneA's profile

ShaneA

5409 posts in 1315 days


#1 posted 06-26-2013 09:07 PM

Looks great Red. You got some fine QSWO there, the more rays the better in my opinion.

View Brandon's profile

Brandon

4145 posts in 1668 days


#2 posted 06-26-2013 09:16 PM

Beautiful mirror. It really turned out nicely.

Oh and someone needs a tan. ;-)

-- "hold fast to that which is good"

View AnthonyReed's profile

AnthonyReed

4992 posts in 1157 days


#3 posted 06-26-2013 09:21 PM

You do beautiful work BRK. It is very nice.

-- ~Tony

View LukieB's profile

LukieB

940 posts in 1047 days


#4 posted 06-26-2013 09:23 PM

Damn, Brandon beat me to it, but I’ll give you a hard time too. That as a fine looking mirror…and some pasty white legs : } Seriously though, the mirror looks awesome. Very nice work.

-- Lucas, "Someday woodworks will be my real job, until then, there's this http://www.melbrownfarmsupply.com"

View pintodeluxe's profile

pintodeluxe

3512 posts in 1530 days


#5 posted 06-26-2013 09:26 PM

That is a great looking mirror. I like the curves, and you got the proportions just right.

-- Willie, Washington "If You Choose Not To Decide, You Still Have Made a Choice" - Rush

View BigRedKnothead's profile

BigRedKnothead

5535 posts in 699 days


#6 posted 06-26-2013 09:48 PM

Thanks guys. Ya, ya…I don’t really tan. I just get more freckles. But my grandma always told me they were angel kisses….lol.

-- Red -- “I'm a furniture maker, I'm a woodworker, and I think woodworker's a very good word, and I like the word, it's an honest word, and that is what I am, a woodworker." --Maloof

View Francois Vigneron's profile

Francois Vigneron

263 posts in 1036 days


#7 posted 06-26-2013 10:10 PM

I’d like my friends to build that for me ! Nicely done. Thanks for sharing.

-- Francois Vigneron, Gif-sur-Yvette, France & Altadena, CA

View MaroonGoon's profile

MaroonGoon

280 posts in 675 days


#8 posted 06-26-2013 10:34 PM

Great job, Red! Very clean and elegant. White oak is one of my favorite trees and the QSWO looks great with this mirror. I’d certainly put that in my house.

-- "Only put off until tomorrow what you are willing to die having left undone." -- Pablo Picasso

View Don W's profile

Don W

15395 posts in 1284 days


#9 posted 06-27-2013 12:46 AM

it’s all been said, the beautiful work, the QSWO, and of course the pale white.

-- Master hand plane hoarder. - http://timetestedtools.com

View widdle's profile

widdle

1467 posts in 1716 days


#10 posted 06-27-2013 01:55 AM

very nice Red…

View theoldfart's profile

theoldfart

4627 posts in 1168 days


#11 posted 06-27-2013 02:04 AM

BRK, real nice work. As for the comment “As you can see from my work, I’m really fond of tapered legs”, i’ve never heard anyone describe their legs that way! The picture of them told the whole story, skinny legs and all.

-- "Aged flatus, I heard that some one has already blown out your mortise." THE Surgeon ……………………………………. Kevin

View Douglas's profile

Douglas

309 posts in 1277 days


#12 posted 06-27-2013 12:46 PM

A classic! Well done. Hard to tell from your pics, but did you route the groove / rabet for the glass after assembly?

-- Douglas in Chicago - http://dcwwoodworks.com

View BigRedKnothead's profile

BigRedKnothead

5535 posts in 699 days


#13 posted 06-27-2013 01:14 PM

Yep Douglas, I did it after.. with this bugger. The different sizes of bearings are very helpful.
I’ve done it both ways, but making the rabbets beforehand means they have to be “stopped,”which just takes more time. You have to chisel out the corners this way, but that’s not a big deal.

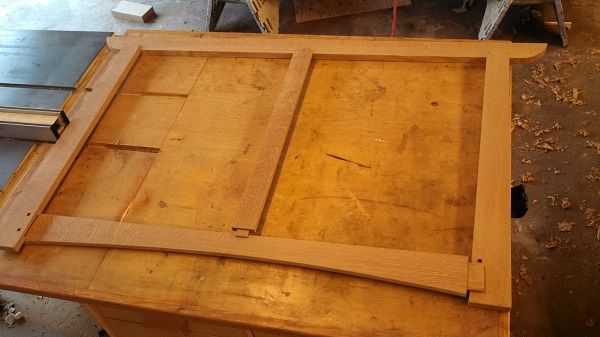

Don’t have any pics of that. Here’s one of the m&t’s before smoothing and glue-up.

-- Red -- “I'm a furniture maker, I'm a woodworker, and I think woodworker's a very good word, and I like the word, it's an honest word, and that is what I am, a woodworker." --Maloof

View Mosquito's profile

Mosquito

5017 posts in 1009 days


#14 posted 06-27-2013 04:18 PM

Very nice BRK. I think you’ve got the A&C thing down pat lol

-- Mos - Twin Cities, MN -- Stanley #45 Evangelist - www.youtube.com/MosquitoMods

View Mauricio's profile

Mauricio

6867 posts in 1868 days


#15 posted 06-27-2013 04:33 PM

Nice design Red! I love me some white oak.

-- Mauricio - Woodstock, GA - "Confusion is the Womb of Learning, with utter conviction being it's Tomb" Prof. T.O. Nitsch
