Neck Shaping Jig for Ukulele to Bass

  • Advertise with us
Project by wingate_52 posted 03-15-2013 04:58 PM 2083 views 4 times favorited 11 comments Add to Favorites Watch
Neck Shaping Jig for Ukulele to Bass
Neck Shaping Jig for Ukulele to Bass No picture No picture No picture No picture No picture
Zoom Pictures

Simple ply construction, plenty of areas to clamp and hold. Adjustable angle for head.





11 comments so far

View Jim Jakosh's profile

Jim Jakosh

11451 posts in 1759 days


#1 posted 03-15-2013 06:16 PM

Nice jig!!

-- Jim Jakosh.....Practical Wood Products...........Learn something new every day!! Variety is the Spice of Life!!

View Boatman53's profile

Boatman53

839 posts in 850 days


#2 posted 03-15-2013 11:12 PM

Nice, I like the openings in the jig for clamps to the bench. Does the neck angle lock down firmly so you can work on the head without the clamp in the way?
Jim

-- Jim, Long Island, NY Ancorayachtservice.com home of the chain leg vise

View wingate_52's profile

wingate_52

219 posts in 1223 days


#3 posted 03-16-2013 06:00 AM

The head can be tightened by use of the pair of hex headed caps on a threaded axle. I did not have my smaller clamps with me at school. What work do you want to do on the head?

View Ripthorn's profile

Ripthorn

759 posts in 1639 days


#4 posted 03-16-2013 01:29 PM

I’ve been thinking of making something just like this (minus the adjustable headstock angle) for some time. I shape with rasps and scrapers, so I need plenty of access around the heel and volute area. I’ve got another guitar build coming up soon, so maybe I’ll finally get around to doing one of these.

-- Brian T. - Exact science is not an exact science

View Boatman53's profile

Boatman53

839 posts in 850 days


#5 posted 03-16-2013 04:40 PM

Hi wingate, I have seen some banjos with inlay work on the back of the headstock plus just just fairing in the neck to the flat of the headstock. With your permission can I share how I hold uke necks on my jig? Your jig is more versatile than my dedicated jig and I would have built another like mine but bigger when I start the guitar, but after seeing yours I will be combining the two. I understand if you want me to start another thread, no worries.
Jim

-- Jim, Long Island, NY Ancorayachtservice.com home of the chain leg vise

View wingate_52's profile

wingate_52

219 posts in 1223 days


#6 posted 03-16-2013 06:14 PM

Go for it, it is all about development. I am sure that I make more jigs than projects these days.

View Boatman53's profile

Boatman53

839 posts in 850 days


#7 posted 03-16-2013 09:05 PM

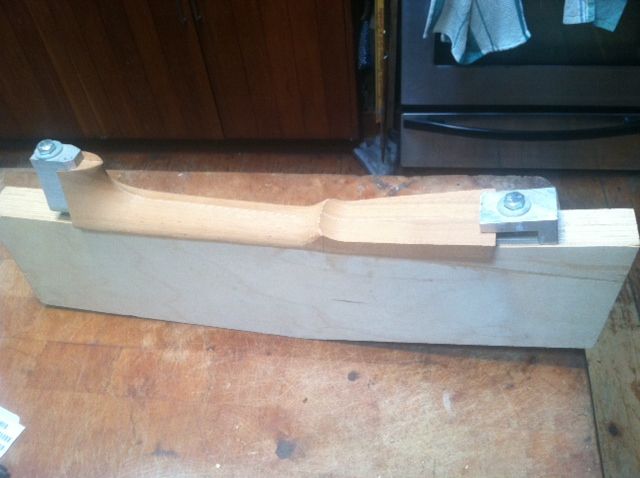

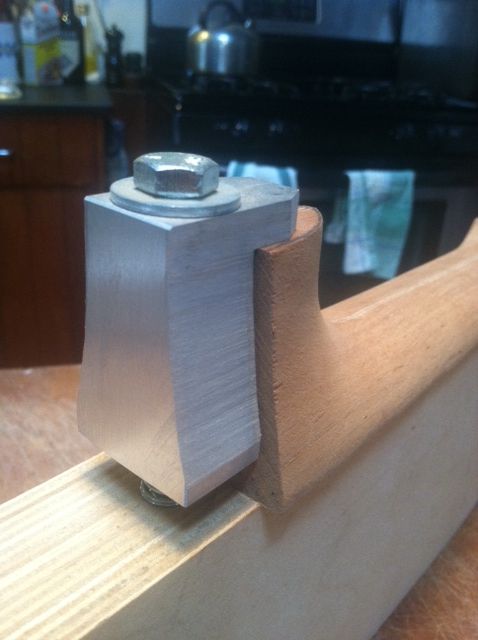

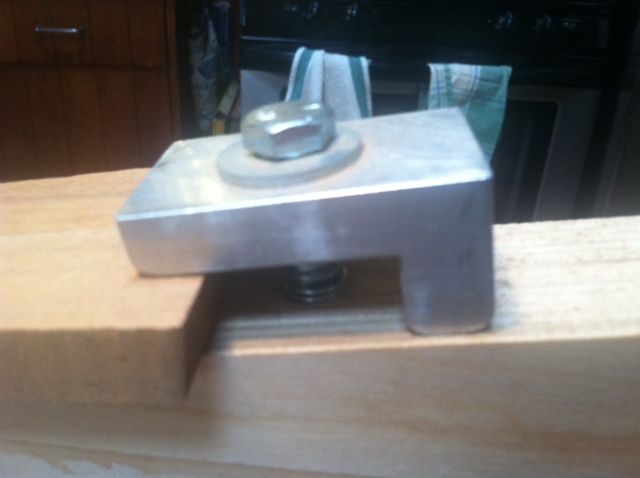

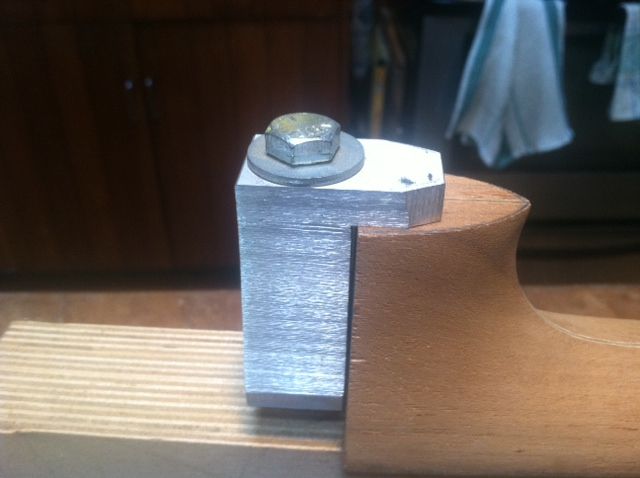

Thanks wingate..here is the jig I made for uke necks. It is sized for the concert length. It gives me lots of access for shaping. The end clamps I made in my shop. They are from aluminum. I cut them out with the table saw, band saw. And drill press. There are springs under the clamps to hold them up when the bolt is loosened, a nut driver works great. If these were combined to your jig with maybe a tee track for sliding the clamps I think it would be great. That is infact what I most likely build.




Thanks for sharing your jig.
Jim

-- Jim, Long Island, NY Ancorayachtservice.com home of the chain leg vise

View wingate_52's profile

wingate_52

219 posts in 1223 days


#8 posted 03-16-2013 10:21 PM

Thanks for sharing yours. The idea of some T-track set in a routed groove with wood/plastic or metal spring mounted hold downs is a winner. Brilliant idea. Many thanks for sharing.

View ericspaw's profile

ericspaw

22 posts in 2126 days


#9 posted 03-19-2013 05:55 PM

Tell us about your clamps. i am not familiar with them.

Eric

-- I keep cutting and it is still too short. http://mypam.blogspot.com/

View wingate_52's profile

wingate_52

219 posts in 1223 days


#10 posted 03-19-2013 06:03 PM

Just an inexpensive qr clamp, similar to the mechanism of sealant gun.
http://www.axminster.co.uk/solo-solo-speed-clamp-prod364432/

View wingate_52's profile

wingate_52

219 posts in 1223 days


#11 posted 03-22-2013 05:40 PM

So here is the Mark 2 jig with additions as advised above. Works better, thanks for the advice all.
