Project by Jim Jakosh posted 08-31-2012 01:35 PM 1713 views 0 times favorited 22 comments Add to Favorites Watch

My son in law is a volunteer fireman and he just got a new truck and asked me if I could build a console for his light and siren controls. A wood project?? Of course!!
He brought me this cardboard template cut to fit the hump in the floor and I went from there with some 1/2” Baltic birch.
He had the truck with him so I used my copy cat to get the radius of the hump and changed the shape of the front piece with a radius on each side to make the console hug the floor.

The case is put together with lock miter joints on all the corners. Routing the angled edges on the sides was tricky because because the pusher I use for a square parts would no longer work. I had to push the piece half way through the cut and then add a 1/16” shim on the outfeed side of the fence to support it so it would not push into the cutter once it left the right half of the fence. It is glued with Titebond 3.

He wanted the front on pins to remove it rather than screws because the whole thing is going to be upholstered. So I put four brass bushings in the case and transferred their locations to the front which has 4 mating brass pins.

After cutting locations for all the components, I added a shelf for each one and then put sides on for reinforcement which have holes for mounting .

I’ll post a shot of it in the truck after it gets upholstered.

-- Jim Jakosh.....Practical Wood Products...........Learn something new every day!! Variety is the Spice of Life!!





22 comments so far

View Sodabowski's profile

Sodabowski

2012 posts in 1490 days


#1 posted 08-31-2012 01:54 PM

That stuff looks rock-solid!

-- Holy scrap Barkman!

View rance's profile

rance

4132 posts in 1817 days


#2 posted 08-31-2012 01:55 PM

Nice job with that one. It is nice to do things for other, just because we can.

-- Backer boards, stop blocks, build oversized, and never buy a hand plane--

View Woodwrecker's profile

Woodwrecker

3611 posts in 2232 days


#3 posted 08-31-2012 02:08 PM

Great job Jim !

-- All glory comes from daring to begin. ~ Eugene F. Ware

View Doe's profile

Doe

980 posts in 1487 days


#4 posted 08-31-2012 03:20 PM

Nice job. What’s copy cat?

Thanks, Doe

-- Mother Nature talks, I try to listen

View degoose's profile

degoose

7014 posts in 2011 days


#5 posted 08-31-2012 05:24 PM

Solid!

-- Drink twice... and don't bother to cut... @ lazylarrywoodworks.com.au For lovers of all things timber...

View DBoltz's profile

DBoltz

122 posts in 1036 days


#6 posted 08-31-2012 05:25 PM

Looks good. And functional. I also was wondering what a copy cat is.

-- Dan, Virginia Beach

View majuvla's profile

majuvla

3425 posts in 1524 days


#7 posted 08-31-2012 05:38 PM

Who wouldn’t do that for his son in law.Nice

-- Ivan, Croatia, Wooddicted

View Roger's profile

Roger

14601 posts in 1461 days


#8 posted 08-31-2012 05:45 PM

Nice build Jim. That will definitely hold up for a long long time. Thank your son-in-law for his service as a voluteer fireman.

-- Roger from KY. Work/Play/Travel Safe. Kentuk55@bellsouth.net

View peteg's profile

peteg

2896 posts in 1480 days


#9 posted 08-31-2012 10:08 PM

Funny thing aye Jim, when any of the family want anything customised they always come to the “go to” guy :: ))
I hope they have a long life as an ornament and not required in action :)
Pete

-- Pete G: If you always do what you always did you'll always get what you always got

View Jim Jakosh's profile

Jim Jakosh

11483 posts in 1762 days


#10 posted 08-31-2012 11:43 PM

Thanks for all the nice comments. It was fun to build! He is also a Marine who just like helping people.
For those who asked about the copy cat. Here is it in its normal state- just a bunch of small round rods:

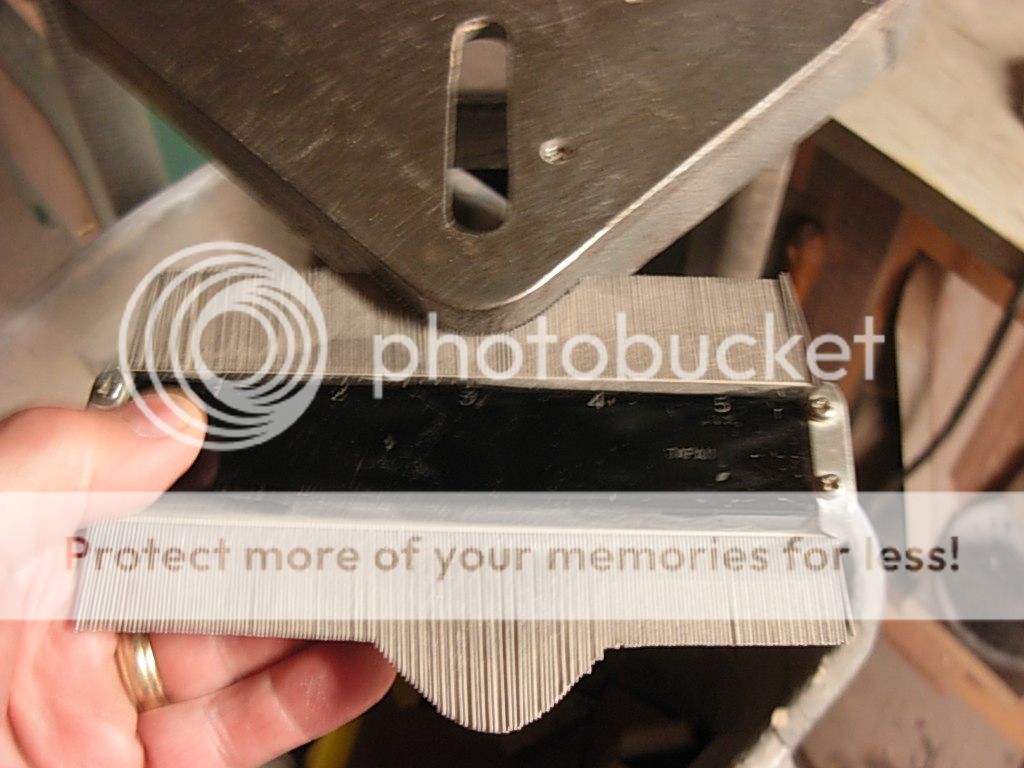

Here it is copying the radius on my drill press table:

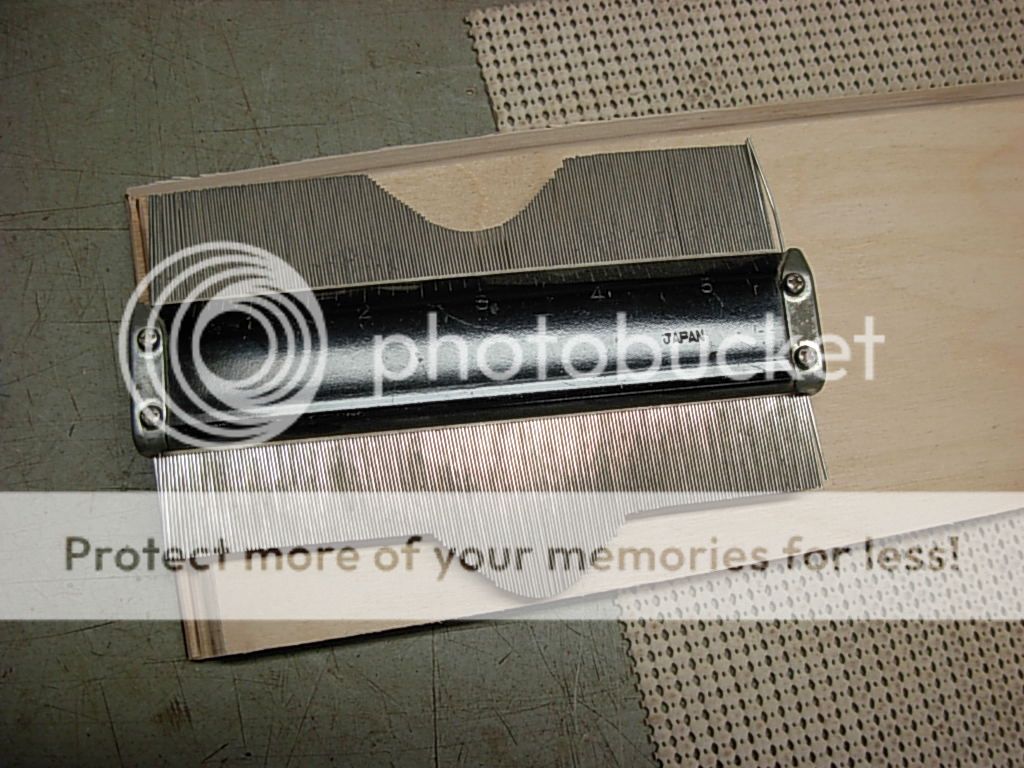

And here it is ready to trace on a mating piece:
