Project by Harold posted 03-01-2008 06:43 PM 5070 views 21 times favorited 13 comments Add to Favorites Watch

Hows that old saying go,”you can never have enough clamps”. I use a simple clamping system that is very affordable, flexible and most importantly repeatable. I use alot of curves and this is how I glue them up. One of the drawbacks to the common Male/Female forms used is that the laminations or parts must be milled perfectly in order to work with in the jig, as I began to use more and more tapered sections this became a constant struggle. I thought that if I could use one reference form and somehow work from this edge, the opposite edge could vary. For example, my chair rockers use the bottom edge for obvious reasons, the back leg jig however uses the inside radius, as this allows me to duplicate the arm and seat connection.
I use a flexible metal caul on the top and tighten the bolts or all thread with my cordless drill and then a ratchet.

-- If knowledge is not shared, it is forgotten.





13 comments so far

View CharlieM1958's profile

CharlieM1958

15706 posts in 2905 days


#1 posted 03-01-2008 07:38 PM

Ingeneous! (did I spell that right?)

-- Charlie M. "Woodworking - patience = firewood"

View GaryK's profile

GaryK

10262 posts in 2675 days


#2 posted 03-01-2008 07:46 PM

Very cool! Kind of like a violin glueing fixture.

-- Gary - Never pass up the opportunity to make a mistake look like you planned it that way - Tyler, TX

View Thuan's profile

Thuan

203 posts in 2504 days


#3 posted 03-01-2008 08:58 PM

That is one clever idea, it’s a giant french curve! So It inspires me to think about the possibiitie, Maybe I’ll blow up my french curve template, and make your jig to be the same shape, only human furniture scale. Then design would match production….

-- Thuan

View Scott Bryan's profile

Scott Bryan

27251 posts in 2508 days


#4 posted 03-01-2008 09:29 PM

Very ingenious. (Charlie note the spelling). I have a template for that will work with this type of setup. Thanks for giving me something to consider.

-- Challenges are what make life interesting; overcoming them is what makes life meaningful- Joshua Marine

View MsDebbieP's profile

MsDebbieP

18615 posts in 2847 days


#5 posted 03-02-2008 01:38 PM

looks brilliant… thanks for sharing

-- ~ Debbie, Canada (https://www.facebook.com/DebbiePribeleENJOConsultant)

View snowdog's profile

snowdog

1132 posts in 2669 days


#6 posted 03-02-2008 02:44 PM

I enjoy looking at the pictures and trying to figure out what I am looking at before reading what it is . Wow you had me there. My first flash was a crazy harpsichord form star trek <laugh>

Great idea

-- "so much to learn and so little time"..

View Harold's profile

Harold

310 posts in 2534 days


#7 posted 03-02-2008 06:52 PM

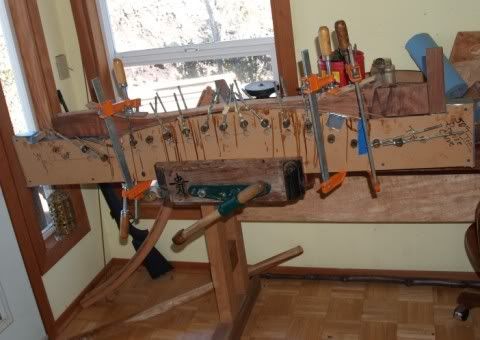

Here’s a couple more pictures that may help explain the problem I was trying to over come. Many of the glue up’s I wanted to do incorpate several pieces as well as complex curved scarf joints.Photobucket

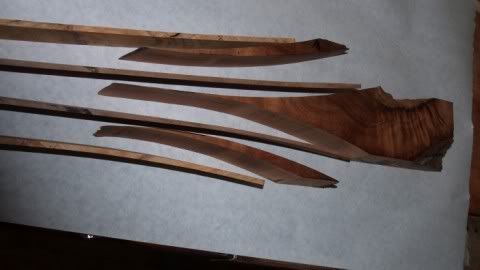

These above pictures are for a handle

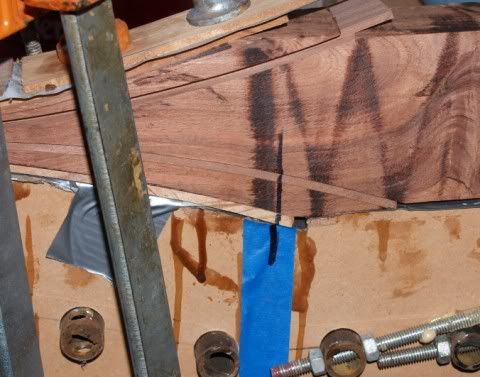

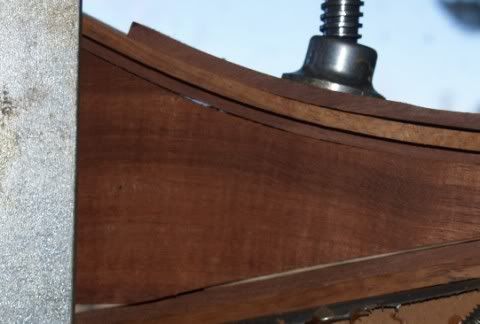

To achieve a perfect joint it does take a couple fittings, the picture below shows a slight gap that resulted from a poor radiusPhotobucket

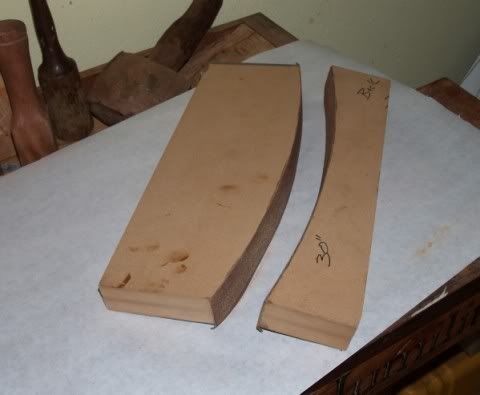

I have several simple sanding jigs that clean up the various radius scarf joints, I made these up out of scrap medex and used old sandpaper from the belt sander. I use a contact adhesive to attatch the sand paper, that way when the sandpaper does completely wear out I can use a heat gun to remove it and stick on a new piece.Photobucket
This picture shows the joints after I have sanded and fitted the pieces. Also show is the rough reference line I use to line up the pieces when I am ready to glue up.Photobucket
This picture shows the final fitting, I will remove all the pieces and glue it up, this glue up will be 8 seperate pieces Photobucket
Now I took these pictures yesterday and I will send a couple more this evening after I clean up the piece.

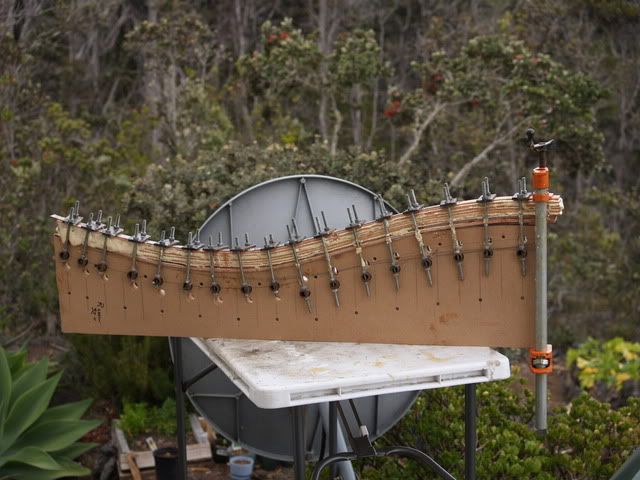

This picture is of a rocking chair runner using the same type jig, but obviously a different shape.rocking chair runner in jig

-- If knowledge is not shared, it is forgotten.
