Project by TRYPHON974 posted 07-05-2011 04:09 PM 2038 views 4 times favorited 5 comments Add to Favorites Watch

I drawed it first on sketchup some time ago. It was time for action, I grabbed an old broom, machined some aluminum, grinded an allen wrench and here it is the marking gauge. It passed the exam, accurate enough for me :).





5 comments so far

View DaddyZ's profile

DaddyZ

2432 posts in 1795 days


#1 posted 07-05-2011 04:21 PM

Neat Idea !!!

-- Pat - Worker of Wood, Collector of Tools, Father of one

View drewnahant's profile

drewnahant

222 posts in 1843 days


#2 posted 07-05-2011 04:28 PM

Looks great, and I like the idea of a gauge with a handle like that. My only concern is that every other gauge has a flat surface to ride on the edge of a bard, to ensure that it stays perpendicular to the edge, otherwise the distance changes.

View Bertha's profile

Bertha

12951 posts in 1447 days


#3 posted 07-05-2011 05:08 PM

Very cool! I want to be able to say, “I machined some aluminum”. I really need a metal lathe!

-- My dad and I built a 65 chev pick up.I killed trannys in that thing for some reason-Hog

View TRYPHON974's profile

TRYPHON974

74 posts in 1536 days


#4 posted 07-05-2011 05:23 PM

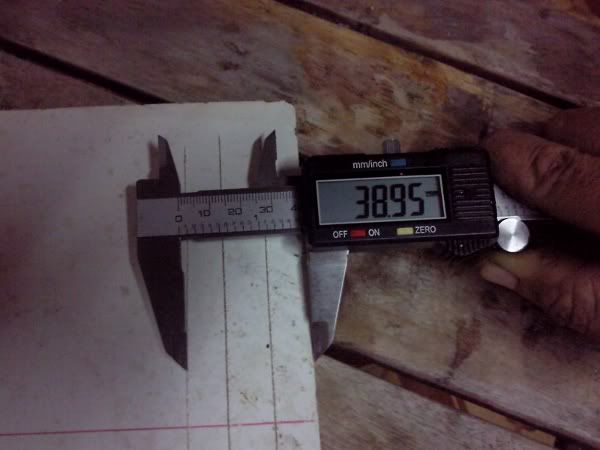

Thanks for the kind comments. I’m not sure I can claim it is my own design as it is very similar to a fly cutter, but the broom handle is an idea of my own :) . I was concerned too about the accuracy as it hasn’t a flat surface. I thought on sanding a flat side but I first made a test of accuracy. I drew three 50cm (20”) lines. And I took my caliper: at the top

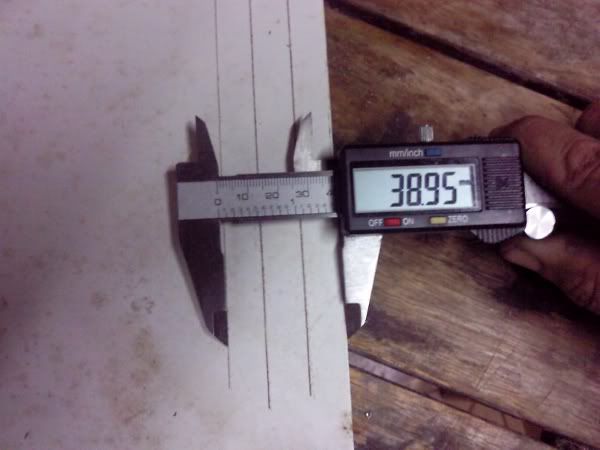

at the bottom

Believe me or not ;). It would be ridiculous to say that it can handle the 1/100mm (0.0004” !) as it is difficult to use the caliper but it proves that it is rather accurate. Or that I’m very lucky…

View brazjuca's profile

brazjuca

54 posts in 1325 days


#5 posted 07-05-2011 10:40 PM

Congratulations very good project, I ask permission to copy.

-- Brazjuca guarapari Brasil. All worth it when the soul is not small. (Fernando Pessoa)
