EOD Jewelry Box

  • Advertise with us
Project by Mikesawdust posted 1187 days ago 2112 views 1 time favorited 15 comments Add to Favorites Watch

This one was a jewelry box for an EOD troop. The case is Caribbean rosewood with the top made of figured ash. I did the EOD badge inlayed on the top and then lined the interior with Black silk. The interior has two book matched trays,





15 comments so far

View Gene Howe's profile

Gene Howe

5365 posts in 2024 days


#1 posted 1187 days ago

Mike, that box is exquisite! The wood choices are wonderful.
Is this one for an auction, too?
Can’t decide which ones I like the best. All of them are so nice.
Your work exhibits great skill and attention to detail.

-- Gene 'The true soldier fights not because he hates what is in front of him, but because he loves what is behind him.' G. K. Chesterton

View grizzman's profile

grizzman

6766 posts in 1899 days


#2 posted 1187 days ago

wow this is a beautiful box, the inlay is fantastic, you should feel proud for doing such a great job, thanks for sharing it with us…

-- GRIZZMAN ...[''''']

View Mikesawdust's profile

Mikesawdust

150 posts in 1634 days


#3 posted 1187 days ago

This one was commisioned, I used the proceeds to help cover the cost for the auction boxes. I did learn coving rosewood with a table saw is really hard in the blade. The troop I made it for wanted it as dark a wood as I could find, I later discovered Wenge is a lot darker. She was very happy with the result though. As far as the inlay, I had this one cutout by laser and used the PSA type veneer, so it just took a lot of patience. I would be too embarassed to show the first 2 or 3 tries at different methods and I gave away the first two tries at this method. I am trying to keep each box very distinct, the badge is the one thing I can’t get much variation.

Thank you for the praise on these, I spend a lot of time marvelling at the talent of the woodworker on lumberjocks and trying to copy the methods I find here. I owe a lot of the success with the design to the people on this site I have taken as inspiration (ruthlessly copied any idea I could incorporate into the design:-)).

View bigike's profile

bigike

4031 posts in 1884 days


#4 posted 1186 days ago

another great looking box, what did you use to make the feet?

-- Ike, Big Daddies Woodshop, http://www.icombadaniels@yahoo.com

View Mikesawdust's profile

Mikesawdust

150 posts in 1634 days


#5 posted 1186 days ago

The feet were actually from FWW mag, the face shape is done on a router to a long pice of stock. Then I cut four lenths about 6 inches. Next I drilled a whole at a fixed point from each end and the same hieght. I made a small themplate for the shape and held it in place withe a pice of dowel through the whole to mark the shape on the flat side of the stock, cutting that with the jig saw. Once that;s done the pices were cut at a set lenth from the end with a mitter saw and each set was glued together. It sounds complicated but is rather easy and looks really good. I did have the bennifit of a doulble mitter framing saw and a framing press nailer, that really helped. I also found if you round over the top edge of the stock about 1/6” and slice the top one blade width, removing the material all the way from the rear top top the rounded chamfer on the front top, but leaving the roundover- When you finish the corners will fit against the box perfectly for alignment.
I know what I just wrote is probably indecipherable, I’ll try and track down the issue number on the leg design.

View itsmic's profile

itsmic

1419 posts in 1714 days


#6 posted 1186 days ago

Another Beautiful and Tasteful Box, I like the feet also, and the wood choice and inlay work, very nice indeed, I am thinking on trying some feet myself, they add a real completion to the box, elegant look, thanks for sharing
ps. yes more explanation would help me, with pics lols

-- It's Mic Keep working and sharing

View Mikesawdust's profile

Mikesawdust

150 posts in 1634 days


#7 posted 1184 days ago

Making ogee bracket feet

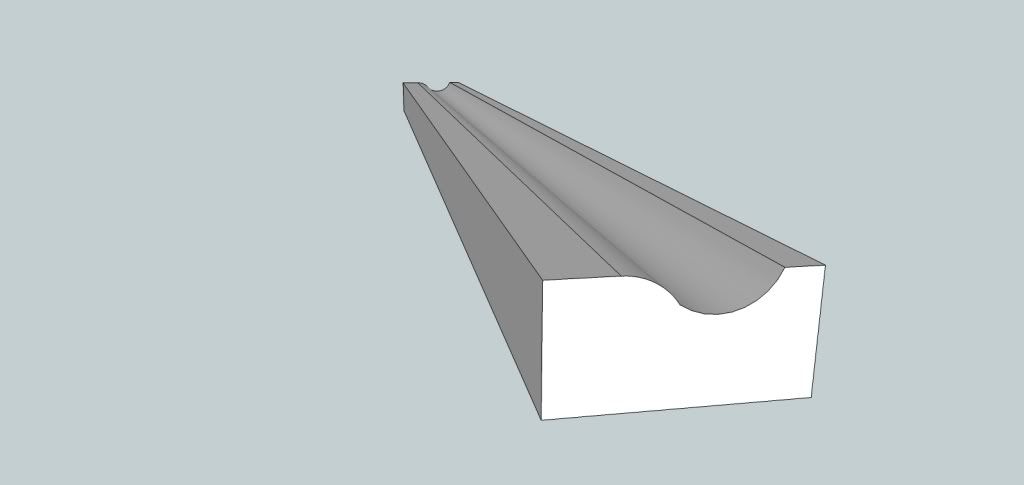

Step 1: get a blank aproximately 1×2x24, and route a concave down one of the 2’ sides the complete lent, making sure to leave the top and bottom edges intact (this will later be the face of your legs!

Step 2: From what is not the back of you blank choose the edge which will later become the top of the foot and remove one blade with about 1/16 from completely through (the picture explains it better)

Step 3, cut you blank into four sections, about 6 inches each

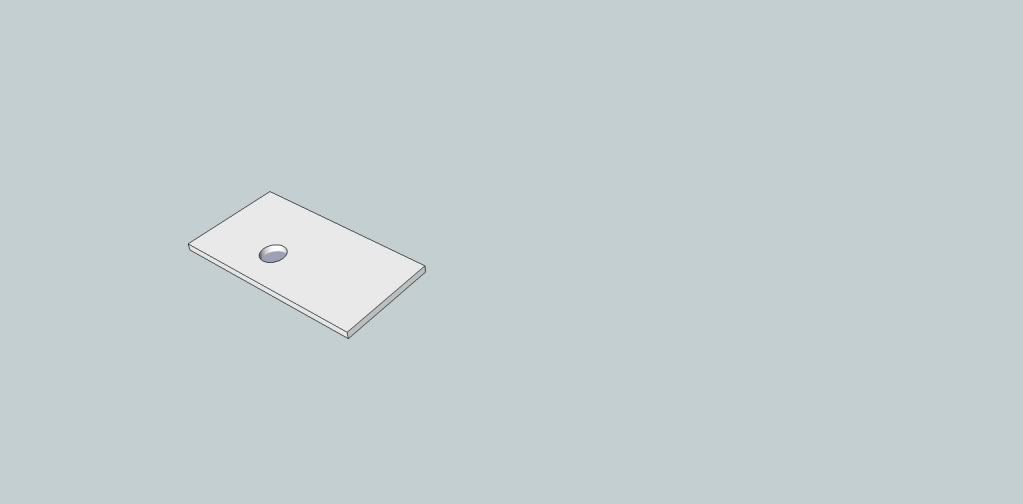

Step 4, Make a template. This will be from 1/8” ply or anything else that you prefer. it will 3’x2’. Frirst Mark a spot about 3/4 inch from the long side and 1-1/2” from the short side (the exact measurement isn’t that inportant as long as you can duplicate it later. Drill a 1/4” hole here.

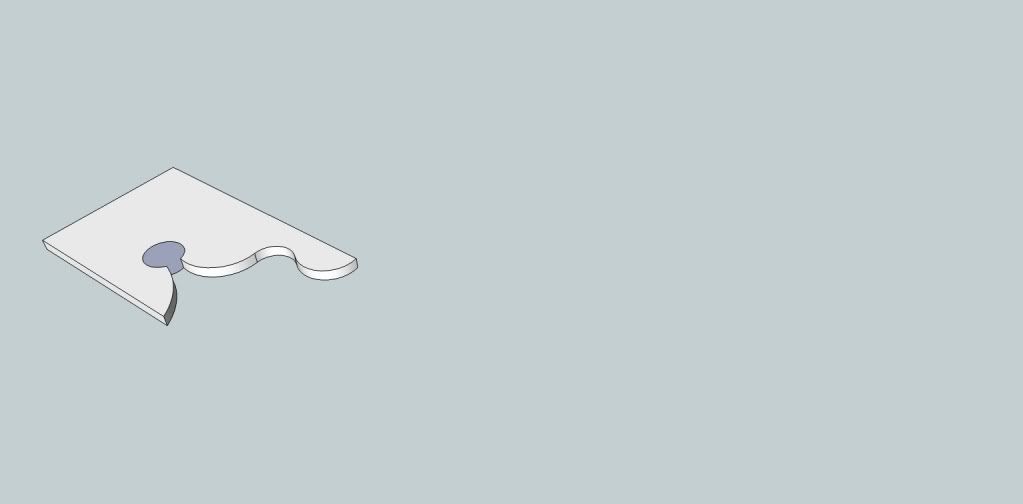

Step 5 Cut the template aproximately as shown with the jig saw(remember the larger side is the top of the template

Step 6 Make the matching holes measureing from each end of you blank (make sure you keep the top in the right direction, once all the holes are drilled place a piece of 1/4 inch dowel in the wholes of the blanks from the rear and use this to align your template, Mark the outlint and cut them in the jigsaw

Step 7 Cut each piece in half making sure to keep them paired. Each set will be mittered together.

I hope this is understandable

View Mikesawdust's profile

Mikesawdust

150 posts in 1634 days


#8 posted 1184 days ago

Please note the sizes above are an example, I think My legs are about 1” tall and 1/2” thick, but I’ve seem axamples up to 4” tall on Chests and other furninture. Fine woodworking has a great guide to these and I’ll try to get back to you with the issue and page info. The piece I cut from the top is something I started doing for aligning them easier on the box.

View Ken90712's profile

Ken90712

14821 posts in 1784 days


#9 posted 1183 days ago

Well done Great post!

-- Ken, "Everyday above ground is a good day!"

View itsmic's profile

itsmic

1419 posts in 1714 days


#10 posted 1183 days ago

@ Mikesawdust——Thanks for the excellent explanation of the leg construction, that is very considerate and informative, going to give that a try in the future, now I have detailed plans, thanks again

-- It's Mic Keep working and sharing

View Mikesawdust's profile

Mikesawdust

150 posts in 1634 days


#11 posted 1183 days ago

I hope you find them easy to produce, I am lucky to have access to the equipment I use. The dual mitter framing saw and an under pinner for framing work great on the feet. I couldn’t find an on-line source that discribes the process on these in a public forum, I’ll get the reference for FWW though.

View Mikesawdust's profile

Mikesawdust

150 posts in 1634 days


#12 posted 1179 days ago

If you can get a copy of FWW issue 119, page 79 has a good description on making the ogee bracket feet. Issue 21 page 62 shows another way of doing it, basically they miter and join the wood into a frame first, then do all the router shaping to the outside. then they cut it into four pices and finish at the scoll saw, I might try this wasy and see if ir makes it easier.

View Mikesawdust's profile

Mikesawdust

150 posts in 1634 days


#13 posted 1179 days ago

I also used these feet on the display cabinet, note that I added a center foot on that case just mirroring the shape to make sure I had enough support across the front.

View dvrmo's profile

dvrmo

1 post in 238 days


#14 posted 238 days ago

Hey Mike, I am the Event Coordinator for the EOD Warrior Foundation and am putting together a list of individuals to request items for donation at the EOD Auction this May. I saw your wood work and I have to say I am really impressed. Would you be interested in donating a piece for this years EOD Memorial Weekend?
You can reach me via email at melissa@eodwarriorfoundation.org

Thank you for your consideration and again, you have some amazing wood work displayed here!

Have a great Holiday Season!

R/

Melissa Tackitt

View Mikesawdust's profile

Mikesawdust

150 posts in 1634 days


#15 posted 237 days ago

Melissa, I’ll contact you by email, but yes I plan to build something this year.
