Mission Bookcase

  • Advertise with us
Project by sandhill posted 01-24-2008 10:43 PM 3048 views 2 times favorited 14 comments Add to Favorites Watch

About 4 weeks ago I was going through some of my more recent WOOD magazines and came across issue 180 Nov 2007. I have a lot of 4/4 Red Oak so I thought “So why not build this, what could it take, A week?) So I set off to build it. After a LOT of gluing up 2 and 3 boards to around 13” X 55” then planning them to 3/4” I was ready to start the fun stuff, squaring and dimensioning to the final sizes of the “Materials List” ; not such an easy task! First I thought it was me, and then I thought it was the tools out of square, and then I realized it was the wood. I never saw such movement in wood. It grew 1/16” in a matter of one week, I cut it again then a week later is was 1/8” to short, so I glued up a few more plus some extras. Well I checked and tweaked all my tools, sharpened my chisels now I was ready to do battle with the Red Oak. I am posting some photos of the first dry fit I did plus some photos of the Rough sawn lumber (Red Oak) I am using for this project. After I get a little closer to completion I will post some more for viewing. I sure hope this thing comes out good. I have learned a lot doing this project and the education has been valuable thus far.

-- Bob Egbert AKA Sandhill http://www.sandhillwoodworks.com/





14 comments so far

View rikkor's profile

rikkor

11295 posts in 2529 days


#1 posted 01-24-2008 10:46 PM

Looks like a mighty good start. Keep posting your progress.

View GaryK's profile

GaryK

10262 posts in 2642 days


#2 posted 01-24-2008 10:51 PM

Looking good so far! Yea, wood moves.

-- Gary - Never pass up the opportunity to make a mistake look like you planned it that way - Tyler, TX

View Grumpy's profile

Grumpy

19455 posts in 2505 days


#3 posted 01-24-2008 11:21 PM

That wood is only short one end but you will get there.

-- Grumpy - "Always look on the bright side of life"- Monty Python

View Scott Bryan's profile

Scott Bryan

27251 posts in 2476 days


#4 posted 01-24-2008 11:45 PM

Yes I agree that wood moves. It can be frustrating. I have roughed out pieces in the past and let them sit for a couple of week to acclimate and still have some parts move and twist after cutting to final size. (These were originally kiln dried and stored in my shop for over two years before I started working on them.) At times working with wood can be frustrating to say the least. I wonder why Norm never has this problem on his shows?

Keep us posted on your woodworking journey.

-- Challenges are what make life interesting; overcoming them is what makes life meaningful- Joshua Marine

View CharlieM1958's profile

CharlieM1958

15696 posts in 2872 days


#5 posted 01-24-2008 11:54 PM

Looks good. I’m envious of that stash of oak.

-- Charlie M. "Woodworking - patience = firewood"

View Grant Davis's profile

Grant Davis

615 posts in 2562 days


#6 posted 01-25-2008 01:43 AM

Looking forward to seeing this thru to completion

-- Grant...."GO BUCKEYES"

View sandhill's profile

sandhill

2122 posts in 2578 days


#7 posted 01-29-2008 06:58 AM

I got some shop time in so I thought I would post some more pic’s of the progress. The weather has changed a bit and everything went back to what it was when I cut it but only after it was sanded and wiped down with mineral spirits I guess the sanding operation helped the boards fit better in the dadoes & the rabbits are all on the back so I am not real concerned about those. I logged on to http://www.woodmagazine.com/fairing to see how to make a fairing stick so I could make the front and back arches and really enjoyed using the band saw with the ceramic guides http://lumberjocks.com/jocks/sandhill/blog/2071 I had a post about them and how they worked for re-sawing, which works well for me. So here are the photos as promised.

Photobucket!

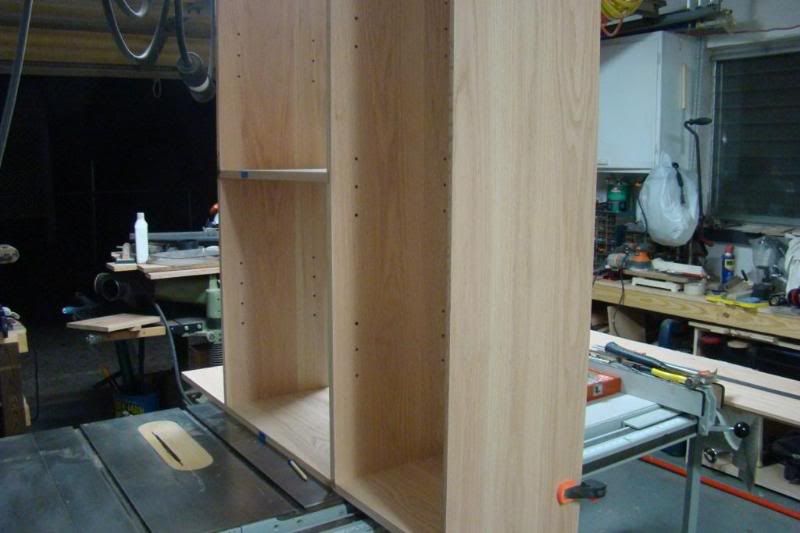

Part of the case glued up

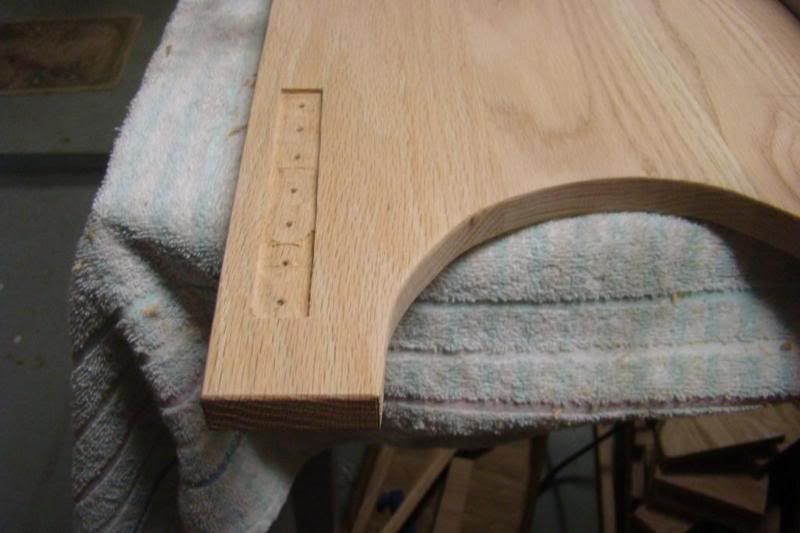

Prepairing for the faux tenons

-- Bob Egbert AKA Sandhill http://www.sandhillwoodworks.com/

View sandhill's profile

sandhill

2122 posts in 2578 days


#8 posted 01-30-2008 11:21 PM

The back of the book case calls for 1/4” plywood but I don’t want to use plywood. Does anyone know if I would have a problem with sold boards this size (1/4”T X 4W +” X54”H) I would use a lap joint vertically no glue, do you think it would buckle, twist or warp? It’s too late to cut the dadoes deeper because the case is assembled. I guess I could make the back boards thicker and cut dadoes tat the top and bottom but that would not look good IMO.

-- Bob Egbert AKA Sandhill http://www.sandhillwoodworks.com/

View sandhill's profile

sandhill

2122 posts in 2578 days


#9 posted 02-20-2008 06:30 AM

Here is the sort of finished book case. The glass was a sticker shock $200+/-, reason being is it is art glass and it is tempered. The hardware was around $50 bucks as well so it will be a while before I can order it.

-- Bob Egbert AKA Sandhill http://www.sandhillwoodworks.com/

View gizmodyne's profile

gizmodyne

1763 posts in 2744 days


#10 posted 02-20-2008 07:43 AM

Did you go with the ply back?

-- -John "Do I have to keep typing a smiley? Just assume it's a joke." www.flickr.com/photos/gizmodyne

View sandhill's profile

sandhill

2122 posts in 2578 days


#11 posted 02-20-2008 04:42 PM

Yes I had the rabbits all cut at 1/4” and did not want to resaw 4/4” red oak to 3/8”. I think it would have given me a problem as far as being stable. . The doors are just sitting there in place until the hardware come but the glass will have to wait.

-- Bob Egbert AKA Sandhill http://www.sandhillwoodworks.com/

View Paul's profile

Paul

649 posts in 2747 days


#12 posted 02-20-2008 05:06 PM

Looks great!

-- Paul, Texas

View Beginningwoodworker's profile

Beginningwoodworker

13341 posts in 2327 days


#13 posted 11-24-2008 03:14 AM

Thats a nice Mission Bookcase.

-- CJIII Future cabinetmaker

View sandhill's profile

sandhill

2122 posts in 2578 days


#14 posted 11-24-2008 05:17 AM

Thanks, the plans were in an old issue of a magazine it was fun to build and as allways you learn as you build each project.

-- Bob Egbert AKA Sandhill http://www.sandhillwoodworks.com/
