Silver maple natural edge vase

  • Advertise with us
Project by BarbS posted 05-28-2010 04:34 AM 1596 views 0 times favorited 24 comments Add to Favorites Watch

My first attempt at a natural-edged vessel. This is silver maple, about 6” high and 4” in diameter. I’d never deep hollowed anything before, or worked around a natural bark edge, so I was learning with every step on this one. I had some trouble with tear out and gouge marks on the inside. Finished with wax. Suggestions and comments always welcome.

-- http://barbsid.blogspot.com/





24 comments so far

View WoodSparky's profile

WoodSparky

200 posts in 1848 days


#1 posted 05-28-2010 05:06 AM

A sharp scraper and light cuts may help with the tear out. Nice job on the 1st one. There will be a 2nd and a 3rd, right?

-- So Many tools, So little time

View Bearpie's profile

Bearpie

2592 posts in 1764 days


#2 posted 05-28-2010 05:07 AM

Nice job Barb! I, too, had problems with some tear outs till someone showed me the proper way to sharpen my chisels. The key is to keep them sharp, if you think they don’t need sharpening, that’s the time to sharpen. Sharp tools=less sanding. That’s huge when you cut your sanding down by 75%. When you start to see tear outs, sharpen.

Erwin Jacksonville, FL

-- Erwin, Jacksonville, FL

View janice's profile

janice

1085 posts in 2171 days


#3 posted 05-28-2010 05:14 AM

Well, I hate to be the first one to comment and I’m probably not now after sitting here looking at it for 10 mintues. But I think it’s a work of art. It’s very pretty and I love the natural edge. I have a few bowls that I bought like that, but never seen anything like this. You should be very proud. It doesnt look like a first attempt of anything.

-- Janice

View janice's profile

janice

1085 posts in 2171 days


#4 posted 05-28-2010 05:16 AM

See, I knew it! I wouldn’t be the first.

-- Janice

View BarbS's profile

BarbS

2434 posts in 2831 days


#5 posted 05-28-2010 05:23 AM

Wow Janice, you swell my head! Thank you!
Thanks, BearPie. I felt like I sharpened a lot, but obviously I may have needed to do it more.
And WoodSparky, yes, I’d say there will be others:

-- http://barbsid.blogspot.com/

View a1Jim's profile

a1Jim

112828 posts in 2323 days


#6 posted 05-28-2010 05:35 AM

Very nice work Barbs

-- http://artisticwoodstudio.com Custom furniture

View Mytoya's profile

Mytoya

210 posts in 1961 days


#7 posted 05-28-2010 05:43 AM

WOW!!!! Great Job!!

View imallchalkedup's profile

imallchalkedup

393 posts in 1727 days


#8 posted 05-28-2010 06:02 AM

very good, and you finished off the bottom nice too.

-- RStadler

View Jim Jakosh's profile

Jim Jakosh

12328 posts in 1851 days


#9 posted 05-28-2010 06:34 AM

Hi Barb. That is a beautiful vase -especially the first one. I love the look of the silver maple, too
I also have had problems with tear out and catches with a bowl gouge when I do internal cutting. Sharping just before the final cuts helps a lot but I have found that I tip my gouge so the top side is almost hitting the surface but is 1/32 away and use a scrape cut and it will not catch and you can smoothy level out the surface with ease. Also, use a support that goes in close to the inside surface so the gouge is well supported.

Good turning. We look for more in the future! Thanks for sharing.

-- Jim Jakosh.....Practical Wood Products...........Learn something new every day!! Variety is the Spice of Life!!

View BarbS's profile

BarbS

2434 posts in 2831 days


#10 posted 05-28-2010 06:39 AM

Thank you Jim. I am trying to do all that, but perhaps am not sharpening enough. I tend to concentrate so seriously on the slow cutting I am doing, I forget to head to the grinder, I guess. This silver maple is harder than any wood I’ve tried to turn so far, too. I’ve done fruit woods and mahogany, and this stuff beats me to death all the way through. I’m using a small flat platform screwed on the tool rest post, which reaches inside the turning to about three inches, but beyond that I’m reaching in unsupported. Are you doing a scrape cut all the way to the rim on the inside?

-- http://barbsid.blogspot.com/

View tdv's profile

tdv

1121 posts in 1816 days


#11 posted 05-28-2010 09:28 AM

Hi Barb that’s a nice job I would at that stage use an internal scraper to smooth out the tool marks I’ve never found sanding really satisfactory on something thats scored it just seems to follow the score marks & using it on a block of wood you have to push too hard & usually knock it out of true in the chuck. Having said all that the last waney edge vessel I made shattered whilst hollowing out, could have cried, it taught me however that it was better to scrape from the bottom & pull out towards the rim that way the tip of your scraper doesn’t immediately collide with the waney edge & grab it may work for you. Anyway well done to you.
Trevor

-- God created wood that we may create. Trevor East Yorkshire UK

View albachippie's profile

albachippie

542 posts in 1781 days


#12 posted 05-28-2010 10:29 AM

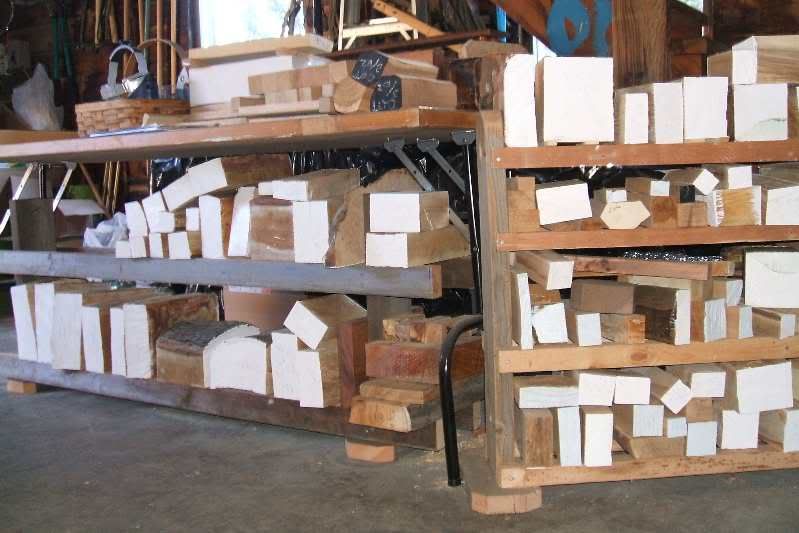

Great vase, and a fine collection of blanks too!

-- Garry fae Bonnie Scotland - https://www.facebook.com/pages/Garry-Macdonald-Woodwork/425518554215355?ref=hl

View 4woodturning's profile

4woodturning

187 posts in 1727 days


#13 posted 05-28-2010 11:32 AM

BarbS, sounds like you have gotten some good tips on inside hollowing. If i may add one also, Pro turner Ray Key shown me a tip on tear out. once you get close to your finial depth use a thin layer of paste wax will act as lubrication so your scraper will have a less tendency to grab on problem areas, like end grain tear out.

Your first natural edge vessel done very nice, I agree with imallchalkedup nice finish bottom to your vessel. cant wait to see more.

-- Jeff, Missouri ,"Just because your not bleeding, dont mean your turning safely!"..............http://www.4woodturning.com

View Loucarb's profile

Loucarb

2388 posts in 2191 days


#14 posted 05-28-2010 11:50 AM

Great job Barb. Love that natural edge.

View michelletwo's profile

michelletwo

2290 posts in 1761 days


#15 posted 05-28-2010 12:35 PM

Hi Barb..for a first, ya done good, girl. Tear out at grain changes is pretty normal for all of us..shear scraping, keeping tools sharp and not being afraid of sandpaper (it is a tool) and lots of practice, will tame that beast. Do you have a tool rest you can get down inside? And still get a tool in there? Narrow vases are a bear to do…that’s why I segment!!! Keep them coming…

-- We call the destruction of replaceable human made items vandalism, while the destruction of irreplaceable natural resources is called development.

showing 1 through 15 of 24 comments
