Project by mikedddd posted 1559 days ago 3325 views 17 times favorited 20 comments Add to Favorites Watch

I built this router table a couple of years ago now, last winter I added a Woodpecker router lift and a Porter Cable 7518. Just recently I decide to build a door for the front since I had no need to work under the table any more. I seen an article in a recent issue of Fine Woodworking where they use a router jig to make some neat looking lattice (#211 I think). I decided that would look good in my router table. The router table has a built in mobile base, the cabinet is built out of 3/4” MDF, the drawers are made out of 1/2” Baltic Birch plywood with Western Birch for drawer fronts and trim, the grill on the door is made out of a left over piece of Purple heart, the table top is two pieces of 3/4” MDF glued and screwed with a Veritas fence. This thing is rock solid and a pleasure to use. Thanks for looking.

-- Mike





20 comments so far

View sras's profile

sras

3820 posts in 1762 days


#1 posted 1559 days ago

I have GOT to make myself one of these! Seeing all those router bits organized in drawers looks so nice! Well done!

-- Steve - Impatience is Expensive

View Walt M.'s profile

Walt M.

243 posts in 1643 days


#2 posted 1559 days ago

very nice job I like that lattice looks cool

View CharlieM1958's profile

CharlieM1958

15691 posts in 2851 days


#3 posted 1559 days ago

Super rendition! Gotta love the matching grain on the drawer fronts.

-- Charlie M. "Woodworking - patience = firewood"

View Dave Price's profile

Dave Price

90 posts in 1608 days


#4 posted 1559 days ago

that is really nice Mike

-- Dave Price , Roswell New Mexico

View Greg..the Cajun  Box Sculptor's profile

Greg..the Cajun Box Sculptor

5016 posts in 1942 days


#5 posted 1559 days ago

That’s really slick. Nice router table and well designed.

-- If retiring is having the time to be able to do what you enjoy then I have always been retired.

View Rick  Dennington's profile

Rick Dennington

3323 posts in 1827 days


#6 posted 1559 days ago

Greetings Mike, Stellar job on the router table. I always like wood grain that matches. You really stepped up to the plate on this one. I really like classy shop furniture… that’s how I try to build mine.

-- " I started with nothing, and I've still got most of it left".......

View Rembo's profile

Rembo

408 posts in 1583 days


#7 posted 1559 days ago

View DonDA's profile

DonDA

113 posts in 1864 days


#8 posted 1559 days ago

Really great job. Like the bit storage!!

-- Don, Saginaw Mi

View Kindlingmaker's profile

Kindlingmaker

2654 posts in 2160 days


#9 posted 1559 days ago

Outstanding cabinet/table for the shop!

-- Never board, always knotty, lots of growth rings

View a1Jim's profile

a1Jim

112016 posts in 2210 days


#10 posted 1559 days ago

Looks like nice funiture, well done a fine tool that should last a long time

-- http://artisticwoodstudio.com Custom furniture

View michelletwo's profile

michelletwo

2233 posts in 1649 days


#11 posted 1559 days ago

I agree with Jim., that’s shop FURNITURE

-- We call the destruction of replaceable human made items vandalism, while the destruction of irreplaceable natural resources is called development.

View Bluepine38's profile

Bluepine38

2876 posts in 1718 days


#12 posted 1559 days ago

Great looking router center. How did you set up the radius jig for making the curved lattice?

-- As ever, Gus-the 75 yr young apprentice carpenter

View mikedddd's profile

mikedddd

145 posts in 1863 days


#13 posted 1558 days ago

Thanks for having a look and the coments,

The bit starage trays are removable, I can store fourteen 1/2” bits in one tray,

Photobucket and twenty 1/4” bits in a tray.
Photobucket

-- Mike

View mikedddd's profile

mikedddd

145 posts in 1863 days


#14 posted 1558 days ago

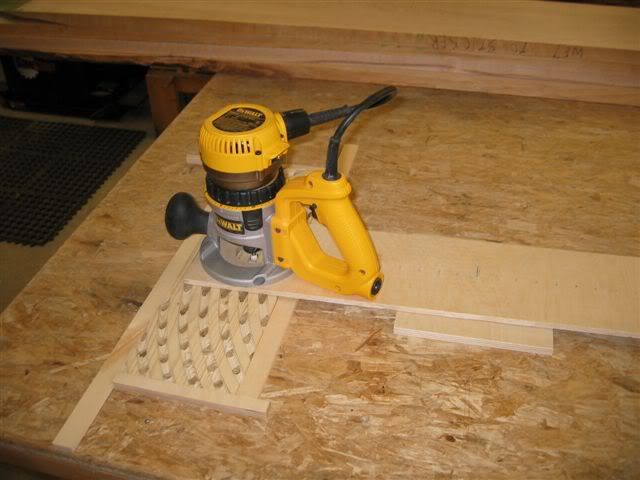

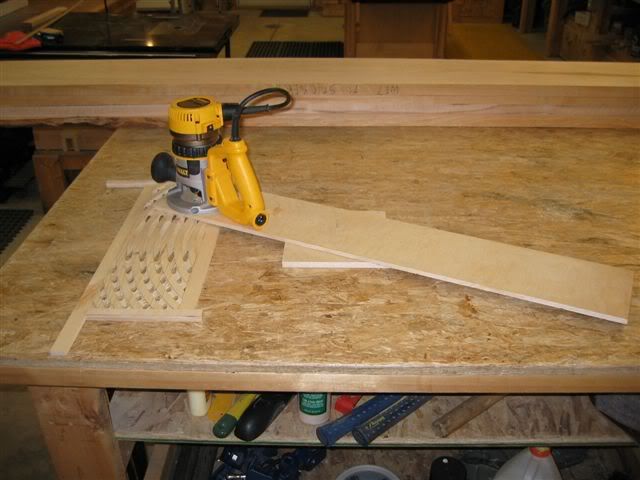

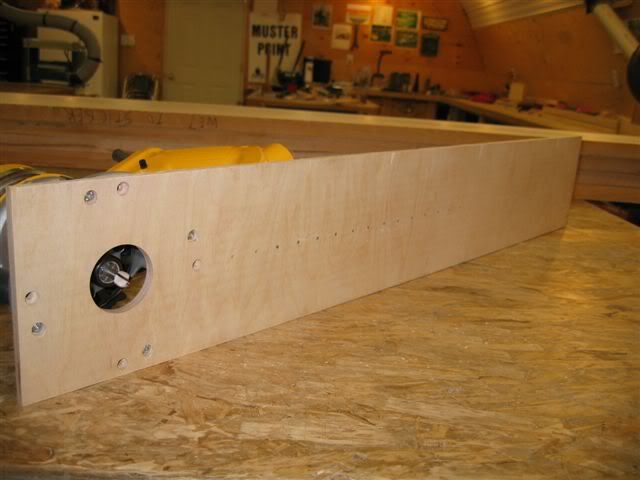

Bluepine38, This is for sure one of the easiest jigs I’ve ever built and used, all you need is a couple of pieces of plywood. I took the base plate off of my router and used it to mark out the holes on some 3/8” plywood and marked out a hole for the bit, in my picture you can see I have extra holes to mount the router, thats because at first I had the handle of the router lined up with the plywood, but then realized it had to be turned a little to be able to use all the holes. Then I drilled holes every inch all the way down th 3/8” plywood. I used a piece of half inch plywood with a roofing nail drove through from the bottom for a pivot point. Then with finishing nails you nail some scraps that are the same thickness as your panel down around the outside to hold it in place for routing, I also nail down the pivot point. Then you just keep moving your jig to another hole on the pivot point. Check before each pass to make sure your not going to run into a nail. Then just flip it over and do the same from the other side, your bit will need to be set more than half the thickness of your material to get the lattice effect. Here are some pictures.
Photobucket
Photobucket
Photobucket
http://www.finewoodworking.com/ProjectsAndDesign/ProjectsAndDesignPDF.aspx?id=33324

Here is a link to the article online, but I think you have to be a Fine Woodworking member to download it.

-- Mike

View PawPawTex's profile

PawPawTex

53 posts in 1626 days


#15 posted 1558 days ago

Excellent job! That’s a mighty fine looking router cabinet. Love the lattice door. Thanks for sharing.
