My first lathe 2nd project

  • Advertise with us
Project by snowdog posted 10-17-2007 10:56 PM 2254 views 1 time favorited 15 comments Add to Favorites Watch

Here is the second thing I did on the lathe. I had some learning experiences with the Nove3 chuck. It would slip out of alignment when I tried to carve the inside of the cup. I needed to adjust the shoulder on the part that clamps. Seems like big shoulders helps to keep it more stable in the jaws of the clamp. I am open to all recommendations :)

I think the wood is maple from the back yard, it was destine to be firewood but got detoured.

-- "so much to learn and so little time"..





15 comments so far

View Thos. Angle's profile

Thos. Angle

4438 posts in 2683 days


#1 posted 10-17-2007 11:22 PM

Well, Dog, it looks like you’re on your way. Having fun.

-- Thos. Angle, Jordan Valley, Oregon

View relic's profile

relic

343 posts in 2657 days


#2 posted 10-17-2007 11:24 PM

Congrats on the lathe snowdog. A lidded container for a second project, wow. I can’t wait to see how you will incorporate your carving with the lathe.

-- Andy Stark

View Greg Mitchell's profile

Greg Mitchell

1381 posts in 2789 days


#3 posted 10-17-2007 11:39 PM

Great job! You must be a fast learner.

-- Greg Mitchell--Lowell, AR--gdamitchell@sbcglobal.net

View mot's profile

mot

4911 posts in 2757 days


#4 posted 10-17-2007 11:50 PM

I was just thinking, a lidded box for a second turning is ambitious! It looks good. Congrats!

-- You can discover more about a person in an hour of play than in a year of conversation. (Plato)

View GuyK's profile

GuyK

356 posts in 2800 days


#5 posted 10-17-2007 11:51 PM

Very nice, my friend. Now when if I ever get the chance to stop by, I will have something to have my coffee out of HA HA.
PS: I stopped at the mill today, Bill is having some sales on Cherry, Maple and Red Oak if you need any.

-- Guy Kroll www.thelandsathillsidefarms.org

View WayneC's profile

WayneC

12300 posts in 2818 days


#6 posted 10-18-2007 12:36 AM

Very nice work. Great to see you jumping right in…

-- We must guard our enthusiasm as we would our life - James Krenov

View CharlieM1958's profile

CharlieM1958

15712 posts in 2939 days


#7 posted 10-18-2007 02:23 AM

Great job! I’d like to try my hand at turning some day.

-- Charlie M. "Woodworking - patience = firewood"

View ThreeJs's profile

ThreeJs

82 posts in 2660 days


#8 posted 10-18-2007 03:38 AM

You did a great job on that. One thing I learned about my nova chuck is that the jaws (depending on the set you have on it) are tapered. If you taper the wood to match, and dont let it bottom out (make the tenon longer or as long as the jaws) it wont slip. I tossed more than a couple cups, bowls, and whorls across the garage, before I learned that. Actually heard it on the woodturners workshop show, and said “duh…”

Keep up the good work. You can do a lot on a Jet midi. I know, as that is all I have myself.

Looking at the picture, it looks like the tenon holding you piece to the chuck is flush with the bottom, and has no shoulder to support it. You would be surprised on how short a tenon will hold if you have the angle on it right.

-- David, Charlotte NC (http://beechcreeknaturals.etsy.com)

View ThreeJs's profile

ThreeJs

82 posts in 2660 days


#9 posted 10-18-2007 03:56 AM

Nub
This is the nub of a 8” long x 2” wide piece of maple that I had in my nova chuck, to turn Christmas ornaments.

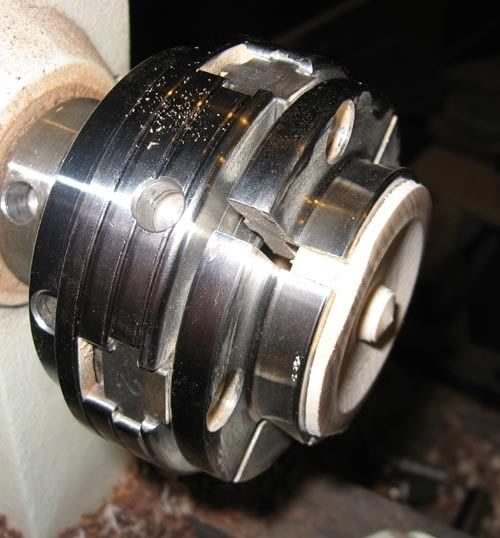

This is how it sits in the chuck, you can see a gap at the bottom, so the wood is not bottoming out, and the jaws are supporting it. That way if you snag, it is less likely to knock the wood loose. Notice I left a bit of a shoulder so that I knew that it would not bottom out, and it helps with support.

On expansion, this is all the lip you need to hold very small stuff. (I would want much much more for anything heavier than this 1/2oz piece of wood)

-- David, Charlotte NC (http://beechcreeknaturals.etsy.com)

View scottb's profile

scottb

3648 posts in 3047 days


#10 posted 10-18-2007 06:37 AM

Very ambitious for a second project… my first couple dozen are freeform spindles – odd unmatched pieces in a large alien chess set ;)

Thanks for that info ThreeJ

-- I am always doing what I cannot do yet, in order to learn how to do it. - Van Gogh -- http://blanchardcreative.etsy.com -- http://snbcreative.wordpress.com/

View Dorje's profile

Dorje

1763 posts in 2717 days


#11 posted 10-18-2007 07:51 AM

Way to go snowdog! That’s impressive…

-- Dorje (pronounced "door-jay"), Seattle, WA

View snowdog's profile

snowdog

1132 posts in 2703 days


#12 posted 10-18-2007 01:31 PM

Thanks for all the words of encouragement that cup started out a bit thicker <laugh> I had to adjust it each time it would snag and move out of center until I found the trick of making the shoulder bigger. The thought of turning it into a baseball and throwing it across the shop was one option (at first <grin>) but I thought better of it and tried again (actually several times).

I’ll search more but off hand:
Does anyone have advice on how to cut the tenon to the correct angle so it holds the wood in the jaws better?

BTW it was not a lidded container, after I cut the cup of I figured I would cut the scrap and see if I could hone my skill a little more. carving out the inside of the cup was a lot harder than I thought it would be. I probably should have tried it on a bigger piece of wood :)

-- "so much to learn and so little time"..

View ThreeJs's profile

ThreeJs

82 posts in 2660 days


#13 posted 10-18-2007 02:01 PM

When I first started, I would use my 1/8” parting tool to get the tenon to width, and diameter, then use my scew chisel to set the angle on it. Now I have a 1/4” parting tool, that I cut in at a slight angle, and then clean up the shoulder. It doesn’t have to be exact, and you can eye ball the angle. Just get it as close as you can.

-- David, Charlotte NC (http://beechcreeknaturals.etsy.com)

View Dorje's profile

Dorje

1763 posts in 2717 days


#14 posted 10-19-2007 04:15 AM

Here’s another tool that works – and that you can make yourself out of an old file. And – let me see if I can put this into words: overall the point (or “nose” of the tool) is 90 degrees but the whole point is offset by 15 degrees away from edge of the tool (look at the short edge of the point)... Do you see what I mean?

There’s more info here.=

-- Dorje (pronounced "door-jay"), Seattle, WA

View Dick, & Barb Cain's profile

Dick, & Barb Cain

8693 posts in 3020 days


#15 posted 01-25-2008 01:16 AM

You’re doing great Dog !

-- -** You are never to old to set another goal or to dream a new dream ****************** Dick, & Barb Cain, Hibbing, MN. http://www.woodcarvingillustrated.com/gallery/member.php?uid=3627&protype=1
