Carry-all for 3 point hitch

  • Advertise with us
Project by TopamaxSurvivor posted 11-22-2009 07:33 AM 8903 views 3 times favorited 9 comments Add to Favorites Watch

I made this carry-all to fit the 3 point hitch on the tractor. It is designed to hold itself together so it wouldn’t be dependant on fasteners and hardware. The bottom is mounted to a crossbar. The front drops in front of the platform and behind the crossbar so it is captive. The 2 side braces are cut on compound dovetails so they will hold the whole thing together with out any fasteners and it is easy to disassemble to use the 3 point hitch for other equipment. The long narrow neck is required to allow the braces to enter and escape the compound dovetail lock.

It is made of fir and/or hemlock lumber and painted to protect from UV deterioration. It is 5 feet wide and bout 3.5 feet deep and high. I cut the dovetails for the braces on the table saw at a tilt of 9 degrees. Only one side can be cut on the table saw table. I free handed the other side with the saw set at 90 degrees. I suppose I could have just dovetailed one side, but both assure it will not come apart not matter how it gets abused.

I found the easiest way to cut the compound dovetail recess was with the sawzall, then clean the bottom up with a chisel. I started with a hand saw but with the 2x wood frame having both cross cut and rip cuts together, it didn’t work very well.

Edit: The compound dovetail keeps the side braces form coming out sideways as well as holding laterally along the brace.

One has to keep ones wits about themselves laying these cuts out. I was lucky to only make on upside down! Notice in the layout picture with the framing square, the layout lines are offset about a half inch to the inside. This is to allow for where the square will not allow the proper line to be drawn.

I forgot to mention I need to move the cross bar a ¼ inch to allow the front to drop down, then the dovetail on the bottom will tighten up and the carrier will be more stable. I took the picture when I first assembled it on the tractor hitch.

-- "some old things are lovely, warm still with life ... of the forgotten men who made them." - D.H. Lawrence





9 comments so far

View Karson's profile

Karson

34902 posts in 3125 days


#1 posted 11-22-2009 07:37 AM

Great use of woodworking skills around the farm!

-- I've been blessed with a father who liked to tinker in wood, and a wife who lets me tinker in wood. Southern Delaware karson_morrison@bigfoot.com †

View TopamaxSurvivor's profile

TopamaxSurvivor

15030 posts in 2400 days


#2 posted 11-22-2009 08:05 AM

Well Karson, when I was an apprentice, my first foreman would start to explain something, pause, then say, “You’re a farm kid, i don’t need to tell you this.” :-))

-- "some old things are lovely, warm still with life ... of the forgotten men who made them." - D.H. Lawrence

View studie's profile

studie

618 posts in 1871 days


#3 posted 11-22-2009 08:20 AM

Nice work Bob! It’s like a jig for a Gitiney like my Dad used to say. He grew up on a farm in Ohio. I was raised in Iowa on farms & can appreciate the need for ingenuity like yours. We are lucky to be able to make tools whatever they need be!

-- $tudie

View stefang's profile

stefang

13530 posts in 2059 days


#4 posted 11-22-2009 11:48 AM

A great way to use your woodworking skills Bob. I like useful stuff and this looks like a great idea.

-- Mike, an American living in Norway.

View a1Jim's profile

a1Jim

112549 posts in 2302 days


#5 posted 11-22-2009 06:15 PM

Good job

-- http://artisticwoodstudio.com Custom furniture

View Dennisgrosen's profile

Dennisgrosen

10850 posts in 1840 days


#6 posted 11-22-2009 06:19 PM

great ide but how did you connect it to the top to the tractor

Dennis

View TopamaxSurvivor's profile

TopamaxSurvivor

15030 posts in 2400 days


#7 posted 11-22-2009 11:16 PM

The third leg of the 3 point hitch goes to the top. If you look closely at the first picture, you can see the connection. I’ll take a coupe more pictures and post them. We have it home for the winter now.

Thanks for the comments everyone. I have mostly been a pragmatic woodworker but intend to get in something with a little more finesse.

-- "some old things are lovely, warm still with life ... of the forgotten men who made them." - D.H. Lawrence

View TopamaxSurvivor's profile

TopamaxSurvivor

15030 posts in 2400 days


#8 posted 11-23-2009 01:59 AM

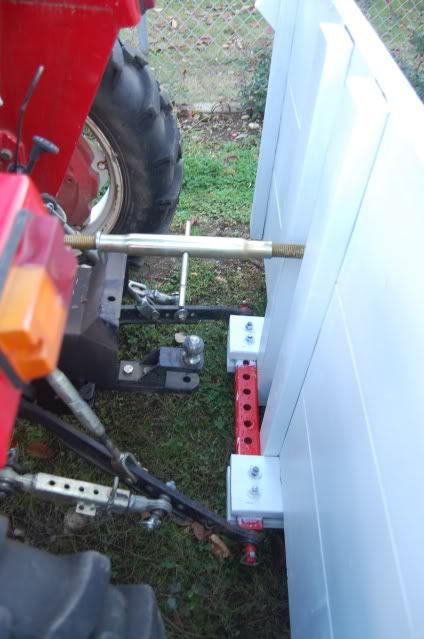

Dennis, Here is a pic of the tractor connection
