Project by patron posted 09-19-2009 01:39 AM 8413 views 30 times favorited 34 comments Add to Favorites Watch

i posted this as a project , because it really has been .
after blowing all my money on wood to augment the rosewood from bibb and deni ,
all i could do was start cleaning my shop , as all my tv and internet was turned off .
this happened 7 days ago .
saturday i was surprised to see my friend doug , ( currently he has joined LJ’s ,but i don’t know his handle yet ) .
drove in to my yard with a trailer and this crosscut saw on it .
he said i could have it , as it took up to much room in his little shop !
it didn’t have a top on it , and the box it was mounted on was pretty bad .
i’m not one of those guys that are afraid of crosscut saws , as i have used them most of my 45 years in
woodworking .i got some money from 1 of those boxes with the art splines in it , and ran to blue box and got 2 sheets of 3/4” particle board for $40.00 .
i made the cab out of one of them , and the top out of the other .
i had to tweek the top , as the arm wouldn’t quite come to square ,
i never move the arm or cut up my stop . but as you can see , i turned on the saw and let it down 1/8”
into the top , and ran it all the way out then pivoted it to cut a semi-circle and then plowed back to the fence .
this way i can crosscut or rip ( when the table saw is tied up ) , without raising the saw .
the saw is totally inside the table edge , so it isn’t exposed at any time .
i made the right side drop down , so i can get around my workbench , and plan on making drawers for the
cab , more storage .
i will make a designated dado jig , that rides higher than the fence , so as not to cut into the fence .
and do miters from both sides with pivoting stops .
all of this in preparation for the projects using the rosewood and the curly maple ,
i want to have the tools in good shape , and everything where i can find it .
most of my mistakes come from rushing , and rigging some other way to do something , cause i can’t get to the tools , or find supply’s i already have .

thanks , please work safe .

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle





34 comments so far

View grizzman's profile

grizzman

7011 posts in 1958 days


#1 posted 09-19-2009 01:50 AM

alright dave a new tool in the shop…....now there will be even less sleep…well if it were me i would be out there playin with it…..tool giving friends are great to have…..there kinda like the ones who send wood out to folks…..just good hearted people…well have fun with it…...it looks nice…...grizzman

-- GRIZZMAN ...[''''']

View BarryW's profile

BarryW

1015 posts in 2561 days


#2 posted 09-19-2009 01:56 AM

I had one in my first shop and loved it….and now seeing yours…well, I’m jealous….green with envy…etc…etc….great score…and excellent table. I wouldn’t have room now for one…but I can be jealous If I want….

-- /\/\/\ BarryW /\/\/\ Stay so busy you don't have time to die.

View patron's profile

patron

13034 posts in 1996 days


#3 posted 09-19-2009 01:58 AM

i been out there for a week ,
getting up from 1:30 to 4:00 every night !
i did get my 13” belt sander on wheels ,
and the 13” planer also .
now they are out of the way against the wall .
it opened up a space in the shop floor about 8’ x 10’ .
but i’m still only 1/3 rd through cleaning .

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle

View davidroberts's profile

davidroberts

1002 posts in 2141 days


#4 posted 09-19-2009 02:14 AM

patron, i’m so happy you got a new saw, well new to you, and a sweet table you made. i’ve been anguishing over whether to buy a RAS these past few months. There must be 25 on craig’s list at the moment and seemingly cheap at about $100 to $150 average. i have the room but do i have the need? i’ve read some horror stories about how difficult they can be to keep aligned, but with proper setup, I’d think they can work a good as a TS. maybe i’m naive. are you going to dedicate the RAS to make just dado cuts, or miter cuts on longer boards?

-- God is great, wood is good. Let us thank Him for wood......and old hand tools.

View patron's profile

patron

13034 posts in 1996 days


#5 posted 09-19-2009 02:28 AM

when i’m in a project ,
the tools may have jigs on them ,
so i will use the RS for crosscuts / rips / dados / miters ,
so i can make any jigs the projects require ,
without messing with the other setups .
as stated ,
i made sure the arm is 90 deg. to the fence ,
and will not ever change that ,
i never cut my fence but once .
that is where a lot of the problems with RS saws came from ,
guys moving the arm for miters and compound cuts .
they never made a dedicated table for them ,
just whacked the one that came with it ,
until they were trashed , and dangerous .
as i make more jigs for it ,
i will post them here .
a radial arm saw is just like any other tool ,
set up right , and used correctly , it’s a joy !

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle

View littlecope's profile

littlecope

2908 posts in 2157 days


#6 posted 09-19-2009 02:36 AM

Great Friend, Great Saw, Great Set-up!! Looks like the Shop’s coming along too.
Good for You, David!!

-- Mike in Concord, NH---Unpleasant tasks are simply worthy challenges to improve skills.

View okwoodshop's profile

okwoodshop

442 posts in 1830 days


#7 posted 09-19-2009 02:48 AM

been thinking about tweeking my rad, saw. I really like the fold down part of the table, and the clamp rack behind the saw. i have really got a lot of ideas from joining this site great job and thanks

View a1Jim's profile

a1Jim

112089 posts in 2232 days


#8 posted 09-19-2009 03:25 AM

Hey David
This is a great table for your new RAS . your shop is looking great. That’s lots of work cleaning the shop but it’s making a big difference. I hope things get better for you in the $ department . It’s no fun when things get tight. Hang in there Bud

-- http://artisticwoodstudio.com Custom furniture

View Karson's profile

Karson

34876 posts in 3055 days


#9 posted 09-19-2009 03:31 AM

David: good luck on the new saw. I loved mine when I had it.

-- I've been blessed with a father who liked to tinker in wood, and a wife who lets me tinker in wood. Southern Delaware karson_morrison@bigfoot.com †

View patron's profile

patron

13034 posts in 1996 days


#10 posted 09-19-2009 03:37 AM

the way i see it ,
i made it this far .

no sense in worrying now !

i do have a lifetime guaranty !

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle

View Bricofleur's profile

Bricofleur

1147 posts in 1848 days


#11 posted 09-19-2009 04:07 AM

I just love your new setup, particularly the fold down tabletop ! The curves give it sex appeal !
I also like your clamp rack. Handy !

When I saw your RAS I ran into my shop to see if mine was still there. They are identical. Do you have the owner’s manual to set it right? If not I can send you or post the few lines I wrote recently about that for someone.

Keep on cleaning David, one day after the other. Well, it applies to everything I believe !

Best,

Serge

http://www.atelierdubricoleur.spaces.live.com

-- Learn from yesterday, work today and enjoy success tomorrow. -- http://atelierdubricoleur.wordpress.com

View patron's profile

patron

13034 posts in 1996 days


#12 posted 09-19-2009 04:24 AM

thanks serge ,
i do have the manual ,
and something i just remembered for all the worriers about ripping
with the RAS ,
make shure the guard is down on the work ,
it keeps the work from lifting while it is being cut !

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle

View Rich99's profile

Rich99

60 posts in 1827 days


#13 posted 09-19-2009 04:55 AM

I’m drooling over your RAS set-up. I want to do the same thing, and have a place for a choip saw and a router as well, all built-in. Storage below, dust collection, etc., just like the one Norm built a few years ago.

My RAS was the first tool I bought when I bought this place. A year later I had seven stitches right over my left eyebrow. Didin’t use it for many years, but I got back on that horse and am riding it regularly now (with the blade guard in place and not placing off-cuts on top of the arm anymore).

Anyway, Patron, nice project! Use it in good health.

Rich, in Corinna, Maine

-- Far-North Wood-Works (a fantasy company)

View patron's profile

patron

13034 posts in 1996 days


#14 posted 09-19-2009 05:04 AM

rich ,

glad to hear you are back at it ,

we all get ahead of ourselves sometimes .

i think that is what we are learning ,

slow down , and smell the sawdust !

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle

View patron's profile

patron

13034 posts in 1996 days


#15 posted 09-19-2009 07:25 AM

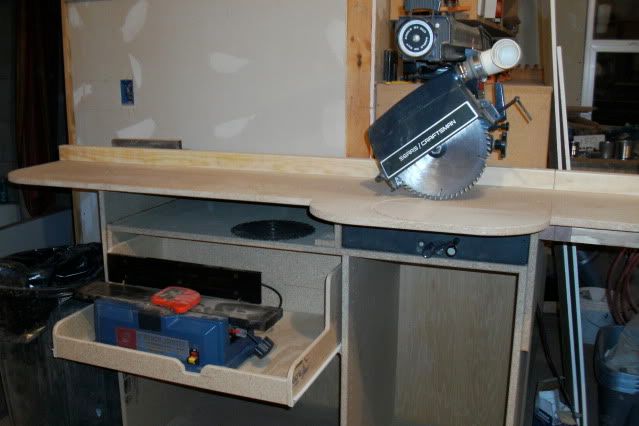

here is a drawer made with this RAS ,
to hold a 4” toy jointer i got for small inlay parts .
i can pull it out ,
( it will have a lock and vacuum ) ,
and slide back out of the way !

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle
