Keyed Miter Sled

  • Advertise with us
Project by Kevin Depies posted 08-02-2009 10:09 PM 3823 views 18 times favorited 19 comments Add to Favorites Watch

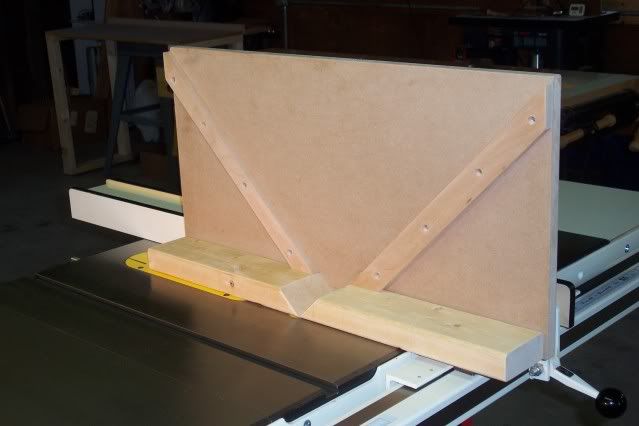

I thought I’d post a shop project. It just a table saw sled that holds pieces on an angle to cut the slot for a keyed miter joint. Simple, but effective. I could run a dado blade through it as well, but just haven’t needed to yet. For the project shown in the pictures, I just clamped a block inside the cradle to use as a stop, made all 8 cuts, then moved the stop over a bit and made the 8 cuts again to widen them.
