An oval hand mirror

  • Advertise with us
Project by Bob #2 posted 01-19-2009 02:13 AM 3899 views 4 times favorited 13 comments Add to Favorites Watch

I have been wanting to try one of these for a while now and got the first pattern off the paper in into wood today.
First thing to do is determine how much border you want to encircle the mirror and then cut and accurate pattern of the actual glass to serve as a template for your router inlay kit.

From mirror oval

I sticky back taped the mirror to bandsaw a piece of 1/4”MDF and trimmed it to the shape with a bearing guided router bit.

From mirror oval

Next step was to refine the mirror back template so the oval would line up with the axis of the handle.
Once the recess for the mirror was routed the body could be cut out on the bandsaw and refined

From mirror oval

The thickness sander brought us to the right thickness and refined the surfaces.
From mirror oval

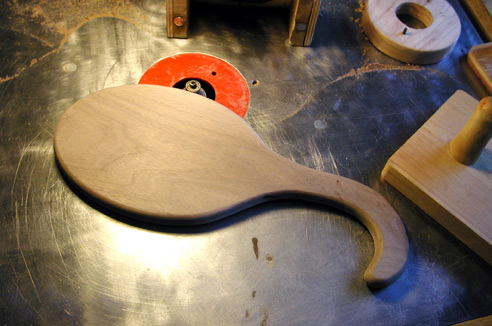

A light skip around the router table witha round over bit and we are starting to see daylight.
From mirror oval

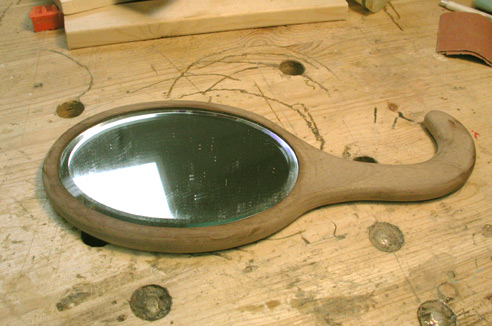

The mirror seems a good fit and the bezel looks relatively even round it.
From mirror oval

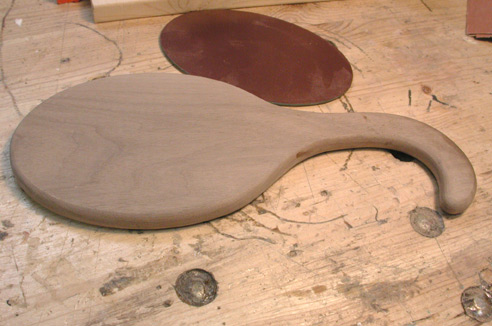

here’s the back with the mirror out on the side.
I am contemplating an inlay for the back to kind of dress it up a bit.

From mirror oval

... to be continued.
