Hey everybody, after a few personal messages here is my version of a how to on a Drunken Checker Board. I of coarse bow to the Chairman of the Board and pay tribute with beer. This is a Off-Checker pattern I call “Drunken Alice in Wonderland” The “serendipitous” nature of this piece is appealing in a far out sort of way. Here Goes…

So first I prepare the Material. I am using Hard Maple and Walnut both are surfaced flat and cut 1” x 9” x 14” You only need ONE piece of each, for two boards. (In this multi part blog I’ll be making four boards).

I’m also using 1/8” Cherry strips for the outline in between the blocks. I rip some 3/16” x 1” x 28” long. and surface each side to 1/8” on my planer so both faces are smooth.


We will be making 5 rips and 6 cross cuts in two boards so make plenty of strips the first time so they are all uniform.

Then Double sided tape one Walnut and one Hard Maple blank together, flat and square, to run through bandsaw.

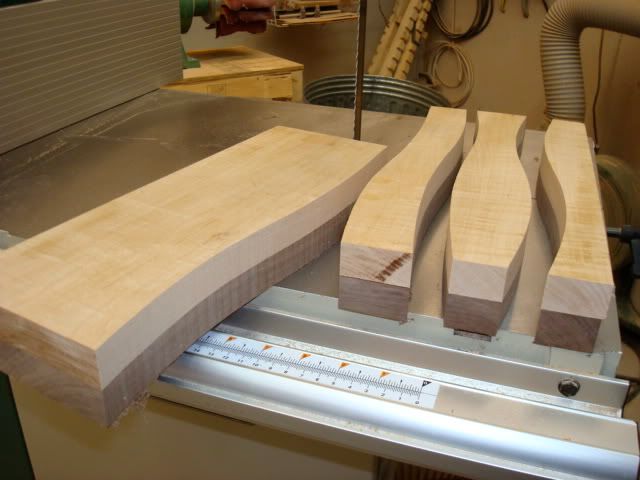

I make 5 length-wise rips with a S shape and a Opposing S shape making what I call a vase shape. Your Imagination is your only limit here and the fact that you have to clamp it back together.


I then lightly sand the cuts smooth trying not to change the shape of the cut at all.

In a orderly fashion pull pieces apart and alternating pieces lay out two matching boards.

Place Cherry strips in between each cut. Glue everything in between, and clamp till dry.


I surface our curvy blanks flat and square so we can tape them back together.
Ok, we now have two curvy blanks with strips. Half-way there.

Double sided Tape them back together. (This is where the serendipity happened for me).
Tape them together so a dark color is over a light color this will create the checkerboard part during the next series of cross cuts. For the Drunken Alice in Wonderland effect when taping the two together make sure the curves also oppose each other the stripes will not match up.


Make Six cross cuts using the same style a S cut and a opposing S cut or Vase cut like so.

Once again sand, pull apart in order, alternate pieces making two boards with a checkerboard pattern.
Add Strips, glue, and clamp. When clamping I try to line up the edges of the pieces as best I can this is important to get a good tight fit in the curves, through heavy pressure, to avoid any gaps I use my big pipe clamps

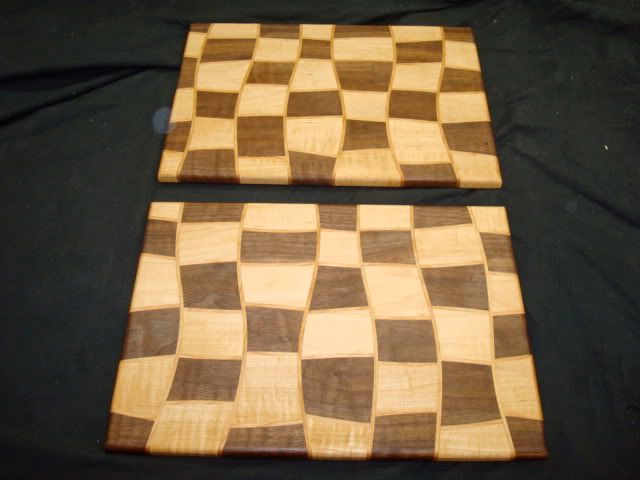

I trim, surface, sand, rout edges, and apply mineral oil.


Part two of this blog will be much the same process however I will illustrate how to produce a smooth flowing Drunken checkerboard pattern, Where the strips line up in a smooth wave.
Ok, I thank you all for the inspiration you have given me and I will challenge you all to come up with the different possibilities this basic design offers. We are only limited by our imaginations and clamping capacities.
I dedicate this post to my grandfather Theodore M Porosky who taught me the joys of woodworking, 20 years ago by making cutting boards in his work shop.
-- There's many a slip betwixt a cup and a lip.--Scott





















21 comments so far
blackcherry
home | projects | blog
731 posts in 723 days
posted 81 days ago
Nice review I’m sure the Chairman of the Board is raising his Toucans to this Blog…Blkcherry
huff
home | projects | blog
1630 posts in 185 days
posted 81 days ago
I’ll drink to that! When I sober up I want to try one of those. Seriously, Thanks for a great blog and I really do have this on my list of things to do. Thanks for sharing.
-- John @ Myrtle Beach
patron
home | projects | blog
2465 posts in 241 days
posted 81 days ago
is it something like this ?

-- david ,new mexico ,allheart
poroskywood
home | projects | blog
198 posts in 264 days
posted 81 days ago
Ok David, I think you got it. OMFG! I now have a beer for David our CEO.
-- There's many a slip betwixt a cup and a lip.--Scott
patron
home | projects | blog
2465 posts in 241 days
posted 81 days ago
test question :
if you do 3 boards , how many do you get ?
if you do 4 ?
or 5 ?
how about 6 ?
thats what this started as 6 boards
just count the different kinds of wood .
so how many boxes ?
-- david ,new mexico ,allheart
a1Jim
home | projects | blog
17211 posts in 477 days
posted 81 days ago
Cool blog good Job well done
-- Jim from Heirloom Woodshop, custom furniture ,maker, woodworking school, heirloomwoodshop.com
poroskywood
home | projects | blog
198 posts in 264 days
posted 81 days ago
6 boxes? (I reserve the right to edit this to the correct answer) 1 box a board?
This is pure genius or complete insanity! Great, Inspiring Idea! I see it now. I was thinking when I was making these, you could make a table or panels out of these because the boards match up you could join a bunch together for a lid to a box or a door for that matter. I feel like we are drinking beers in the woodshop together.
-- There's many a slip betwixt a cup and a lip.--Scott
Matt Vredenburg
home | projects | blog
48 posts in 314 days
posted 81 days ago
Awesome Scott. Thank you for sharing!
-- Matt, Arizona
patron
home | projects | blog
2465 posts in 241 days
posted 81 days ago
the higher the stack ,
the more careful the cut .
if the blade gets to whipping , the top board ,
and the bottom board have slight irregulars in them .
your answerer is correct ,
how ever there are only 2 like this one ,
after the first cut and glue up i used the other matches for other stacked cuts
-- david ,new mexico ,allheart
woodisit
home | projects | blog
61 posts in 142 days
posted 81 days ago
Great blog, nice camera work.
-- Woodisit
degoose
home | projects | blog
2029 posts in 255 days
posted 81 days ago
I will be trying this for myself.
I am so happy for you Scott. You have finally realised that …....!
You have taken what we have shown you and you have made it your own ….. well done…
-- Drink once, cut twice. New website up.... lazylarrywoodworks.com.au
ellen35
home | projects | blog
542 posts in 332 days
posted 81 days ago
Scott,
This tutorial is great! It is so easy to understand and follow. I’ll be trying my hand at this soon.
Thanks for the instruction… with kudos to David and Larry!
Ellen
-- Ellen on Cape Cod
Scott Bryan
home | projects | blog
20809 posts in 722 days
posted 81 days ago
Scott, this is a nice blog on the construction of these boards. I have been meaning to try one (of course I have to clear out some of my other “commissions” that my wife has given me) and this has been both an inspiration and a well documented tutorial. I will be following this series.
-- With God's help all things are possible- even woodworking. Woodworking is not just a hobby, it is an (expletive deleted) expensive hobby.
Charles Maxwell
home | projects | blog
160 posts in 707 days
posted 80 days ago
very clever! i learned something in this post. Thanks so much for sharing.
-- Max the "night janitor" at www.hardwoodclocks.com
Dusty56
home | projects | blog
3518 posts in 588 days
posted 75 days ago
Both Curly Maple AND Curly Walnut !!! You’re my hero , Scottie : ) Thanks for simplifying this process for the weak at heart like myself : ) Your blog and photos are excellent and I am looking forward to your next post on this subject. What size blade are you using and do you draw lines to follow , or just freehand your curves ?
That’s a nice sanding drum that you have there . What’s the model # ?
-- You know you're getting old when you know the difference between you're (you are) and your (belonging to you) AND how to use them in a sentence .
poroskywood
home | projects | blog
198 posts in 264 days
posted 74 days ago
Len, 1/2” Timberwolf. would do this fine. For this blog I left on my 1” 3tpi resaw blade. (lazy) I cut the curves free hand with out lines in a semi specific way due to the lack of any nessasary pattern. All I have is Curly wood I can’t help it. It’s the Grizzly drum and flap sander I think its a 4” drum, VERY handy for the cost.
When are we going to see your next project post? get to work.
-- There's many a slip betwixt a cup and a lip.--Scott
Dusty56
home | projects | blog
3518 posts in 588 days
posted 74 days ago
Thanks for the feedback , Scott. I still haven’t posted my last project , because I’m going to Tewksbury to retrieve it on my way to Lexington and the LJ picnic this Saturday . I want to get some pics of it in the daylight and now the young couple have decided which side of the board that they want the juice groove cut into.
That’s one of the boards that I ordered some sweet Curly Maple from Poroskywood.com on Ebay for.
Ever hear of them ? The owner is one HECK of a nice guy and the products couldn’t be better.!!
Also , the fast shipping and care taken with packaging the products can’t be beat. : )
I try to avoid changing my bandsaw blade as well unless I really have too…I don’t think it’s a laziness issue as much as it is a necessary evil : )
-- You know you're getting old when you know the difference between you're (you are) and your (belonging to you) AND how to use them in a sentence .
cowdog80
home | projects | blog
32 posts in 46 days
posted 46 days ago
Does it say anything about my sobriety if that board looks straight to me?
Eric
Greensboro, NC
Woodworkers Store
-- http://woodworker.com
Karson
home | projects | blog
25871 posts in 1300 days
posted 45 days ago
A great tutorial. Nice job on the creation and esign.
-- What happens in the workshop stays in the workshop. No wait that doesn't sound right. Karson Southern Delaware karson_morrison@bigfoot.com †
mtkate
home | projects | blog
664 posts in 225 days
posted 38 days ago
This is a great how-to. I might have to have a drink and try it out. Maybe not in that order…
abadr
home | projects | blog
8 posts in 38 days
posted 38 days ago
very cool…
-- A.B. -- "Good judgment comes from experience. Experience comes from bad judgment" -- Mark Twain
