rail and stile door on the table saw #1: here's my quick cab door version , JANICE !

  • Advertise with us
Blog entry by patron posted 01-10-2010 08:48 PM 10831 reads 20 times favorited 25 comments Add to Favorites Watch
no previous part Part 1 of rail and stile door on the table saw series no next part

janice asked for help making cab doors , http://lumberjocks.com/projects/26191 .

this is by way of showing how i make cab doors my way .
i don’t do raised panels , unless the customer orders them to match or just ‘cause they like that style .
i allways tell them that unless they really want to spend more money ,
like twice as much for the panel wood ,
and all the time it takes to do ( i am worth something ! ) .
so i make the rails and stiles straight forward on the table saw , with a dado set ,
( they can be made with just a single blade , just have to move the work over more ) .
then i can embellish as needed to highlight the work .
the panels , i make by re-sawing my 3/4” stock and planing/sanding to 1/4” ( twice as much wood , less money ) .
i usually make the parts of the panels the same width as the rails and stiles , just for further ease , ( less
milling and messing with different sizes of wood , save more money and time ) .
sometimes i do cut outs ( as in this demo ) ,or grove and paint the pieces , sky is the limit .
so here goes .
here are the rails and stiles to start , ( i just grabbed some ripped particleboard for this demo ) .

.
rip a dado in the center of the pieces , ( this can be done with a single blade too , by spinning the parts around
and ripping from both sides .

.
only on the rails , ‘sneak up’ on the tenon thickness , by raising the saw lightly ( you are removing wood from both faces or the rail , its easy to take off to much when you double it ) .
the tenon length is from the fence to the left side of the saw .
slide rail way from fence and cut to the end , as many times as needed .

.
now we have frame parts ready to go together , with a dado grove all the way around inside .

.

.
i cut my panel slats 1/16” under length , and 1/8” each side , for panel expansion .
i center them by ripping off of both sides equally for this , some panels are even ,
and some are odd number of parts , adjust accordingly .
notice the left slat has a drawing on it . this is my pattern for the cutouts .

.
i cut the pattern piece , and use it to mark all the others ,
i always mark the parts so that they enter the scroll saw or the band saw from the same way ,
that way i get a practice rhythm going , and don’t run into problems with the direction changes in the tools

.
you can’t see them to well in the picture ,
but i use ’ space balls ’ for panel centering , ( they are 1/4” rubber bb’s ( rockler , etc. )

.
and viola !

.
i won’t be around for a while , as it is my turn to row the boat ,
for not paying my satellite bill in time !
bye .

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle



25 comments so far

View jack1's profile

jack1

1924 posts in 2678 days


#1 posted 01-10-2010 08:56 PM

This is a really nice thing to do for people. Step by step and great photos. Kudos!

-- jack -- ...measure once, curse twice!

View zlatanv's profile

zlatanv

689 posts in 1885 days


#2 posted 01-10-2010 08:57 PM

That was quick, nice work. I like the way you use heart detail to cut out the knot. Looks good.

-- Z, Rockwall, TX

View stefang's profile

stefang

13017 posts in 1985 days


#3 posted 01-10-2010 09:02 PM

Janice will surely appreciate your nice tutorial. It was very well done (except for the particle board). We (I) forgive you. Just don’t sin again and all will be well. I’m in “criticism” mode this evening. Hope you don’t take it seriously. Have a nice day.

-- Mike, an American living in Norway.

View Scott Bryan's profile

Scott Bryan

27251 posts in 2473 days


#4 posted 01-10-2010 09:19 PM

David, this is a nice tutorial. It is well documented and explains the process well.

-- Challenges are what make life interesting; overcoming them is what makes life meaningful- Joshua Marine

View nailbanger2's profile

nailbanger2

960 posts in 1795 days


#5 posted 01-10-2010 09:22 PM

Thanks from someone not named Janice! But of course, every answer deserves two questions. I thought spaceballs were for expansion/contraction control, and they are 1/4”. Do you put them in both rails and stiles? Or just one of each, since the width is 1/8” less than total. Also, how long is the recommended tenon? Yours appear to be 1/2”?

I actually have a lot more questions, as I have only done mitered doors with biscuits, but these will do for now.

-- Wish I were Norm's Nephew

View degoose's profile

degoose

7010 posts in 2006 days


#6 posted 01-10-2010 09:34 PM

Nice blog David even I could follow it… LOL

-- Drink twice... and don't bother to cut... @ lazylarrywoodworks.com.au For lovers of all things timber...

View patron's profile

patron

13033 posts in 1992 days


#7 posted 01-10-2010 09:38 PM

thank you all ,
nail , yes , i do 1/2” tenons , makes it easier to measure ,
i do the ‘space balls ’ space for 1/8” both sides and use them there , both sides ,
it centers the panel by squeezing them some .
for length i only go 1/16”overall , as wood doesn’t expand in length very much .
mike , i didn’t need a door , and grabbed what was handy , and hey , your critique is always welcome .

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle

View janice's profile

janice

1083 posts in 2076 days


#8 posted 01-10-2010 09:42 PM

Oh wow, David. This is crazy! You are way to nice to go thru all of this! I should have just hired you, they’d be done already. I marked it as a favorite, this better not go away. Like I said, I have my homework to do. I’ll be looking at everyone’s suggestions. Thanks so much.

-- Janice

View patron's profile

patron

13033 posts in 1992 days


#9 posted 01-10-2010 10:04 PM

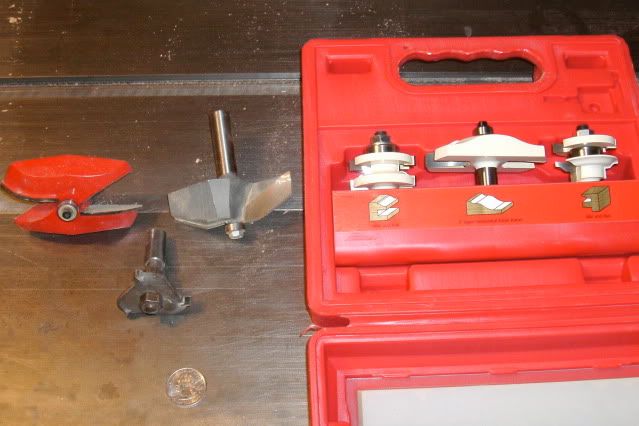

here are some of the options ,
