Useful jigs for your shop #1: A cradle for changing router bits on a Triton router

  • Advertise with us
Blog entry by Bob #2 posted 12-25-2008 11:52 PM 7202 reads 5 times favorited 18 comments Add to Favorites Watch
no previous part Part 1 of Useful jigs for your shop series Part 2: A landing apron for your miter jig. »

I got tired of chasing my big router around the bench when changing bits or setting depth of cut so today I grabbed a piece of 1×4” and a chunk of 1/4” mdf and made a cradle.
I traced around the router and cut the MDF out in a rough pattern on the bandsaw then tuned it a bit with the spindle sander.

From wood stuff 2009

Next I put a brace inside to support the router top and covered it with a bit of foam to prevent scratching.

Heres the finished cradle held on the bench with a couple of clamps.

From wood stuff 2009

I can reef on the change wrench without having to embrace the tool each time I change the bit.

From wood stuff 2009

Could have been fancier but it works.

Bob

-- A mind, like a home, is furnished by its owner



18 comments so far

View lew's profile

lew

10088 posts in 2440 days


#1 posted 12-26-2008 12:25 AM

Now, That’s Cool!

-- Lew- Time traveler. Purveyor of the Universe's finest custom rolling pins.

View Karson's profile

Karson

34884 posts in 3086 days


#2 posted 12-26-2008 02:14 AM

Neat router holding jig. Great job Bob

-- I've been blessed with a father who liked to tinker in wood, and a wife who lets me tinker in wood. Southern Delaware karson_morrison@bigfoot.com †

View Thos. Angle's profile

Thos. Angle

4437 posts in 2647 days


#3 posted 12-26-2008 03:20 AM

It’s a dandy, Bob.

-- Thos. Angle, Jordan Valley, Oregon

View Dusty56's profile

Dusty56

11663 posts in 2373 days


#4 posted 12-26-2008 04:58 AM

Nice jig but I have to wonder why you need to “reef” on your wrench(s) Doesn’t the collet hold properly without over tightening the nut ? Does that model have a spindle lock or two wrenches ?

-- I'm absolutely positive that I couldn't be more uncertain!

View DocK16's profile

DocK16

1140 posts in 2772 days


#5 posted 12-26-2008 05:36 AM

very ingenius

-- Common sense is so rare anymore when you do see it, it looks like pure genius.

View Bob #2's profile

Bob #2

3808 posts in 2707 days


#6 posted 12-26-2008 05:58 AM

Dusty,
After scoring a few bits ( particularly the 1/4” and 8mm sizes I take tightening very seriously.
The collet uses a spindle lock on this models which mean I have to use the router body as the other wrench.
I was chasing it around the bench on occasion when there was not enough room.
This gets me back to getting ample torque without the arm wrestle.
p.s. I do keep the collet slots aligned.

Bob

-- A mind, like a home, is furnished by its owner

View Dusty56's profile

Dusty56

11663 posts in 2373 days


#7 posted 12-26-2008 08:45 PM

I have two routers with spindle locks and honestly I’d rather use two wrenches . I always wonder if the collet is tight enough or if I’m going to break the lock first…..It’s like walking a tightrope ! LOL….I use my Porter Cable routers the most (2 wrenches) I have 3 of those ,1 in a router table and 1 set up for special operations , the 3rd one does everything else . 1 little old Sears R2D2 model 5/8HP, 1 VS Bosch in a router table and the 1hp Bosch Colt EVS and also my son bought me a Dremel tool with all of the attachments and bits. So far I haven’t broken anything or had any bits loosen up on me… just lucky I guess . Is that a homemade wrench in the picture ? I had to “customize” some wrenches back in the day when I used to be a mechanic . Have a great weekend .

-- I'm absolutely positive that I couldn't be more uncertain!

View Bob #2's profile

Bob #2

3808 posts in 2707 days


#8 posted 12-26-2008 10:17 PM

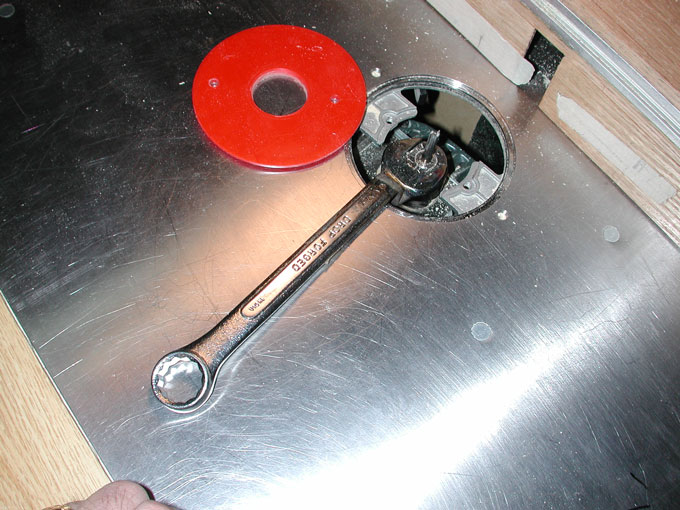

Dusty the wrench was born when I had trouble getting to the collet nut on my Hitachi M12V when mounted in a Lee Valley steel top.
