A cabinetmaker's workbench (in pine) #1: Planing and glueup of flitches

  • Advertise with us
Blog entry by TravisCorcoran posted 10-14-2009 10:42 PM 1399 reads 0 times favorited 2 comments Add to Favorites Watch
no previous part Part 1 of A cabinetmaker's workbench (in pine) series Part 2: two flitches done »

Ordered (5) 18′ long 2×12s.

Cut them to half length, yielding (10) 9′ long 2×12s.

Ripped each into three equal pieces, yielding (30) 9′ 2×4s.

Planed the faces of each, reducing thickness to 1 3/8″.

Picked 24 good ones, divided into 4 groups of 6.

Started gluing up the four flitches (each will be 8 1/4″ wide x 3 1/2″ thick).

Each will be allowed to cure for 24 hours, then will be run through the planer.

Then the four bench segments will be glued together.

for about $100 in materials and $0 in labor (less, actually, because I’d be willing to pay for the experience!).

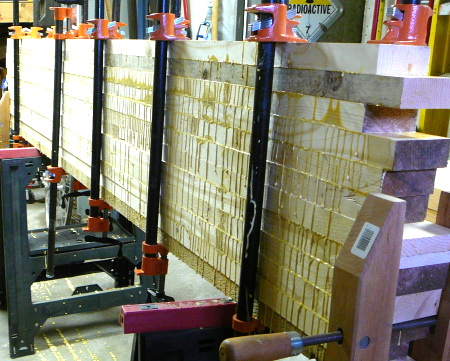

Here are two flitches being clamped at the same time (the difference between two 8 1/4″ flitches, and one extra wide 16 1/2″ flitch ? There’s one set of adjacent 2×4s in there that aren’t glued to each other!)

-- http://SmartFlix.com / http://Woodturner-U.com / http://Woodcarving-U.com



2 comments so far

View a1Jim's profile

a1Jim

115202 posts in 3039 days


#1 posted 10-14-2009 11:09 PM

Good start.

-- http://artisticwoodstudio.com Custom furniture

View Gary's profile

Gary

8968 posts in 2895 days


#2 posted 10-15-2009 04:39 PM

Just a little glue leakage there. Good thing you have a supply of pipe clamps. Looking forward to seeing the finished product.

-- Gary, DeKalb Texas only 4 miles from the mill
