Aviary #1: Just getting started...

  • Advertise with us
Blog entry by ShannonRogers posted 02-29-2008 03:56 AM 1919 reads 0 times favorited 7 comments Add to Favorites Watch
no previous part Part 1 of Aviary series no next part

My sister-in-law loves birds and has several lovebirds. After visiting a relative in a nursing home recently she came home raving about the beautiful aviaries they had at the facility. Well, she is set to graduate from her PhD program soon and I thought that this would make a lovely gift.

I have gotten started on the bottom case and discovered that I wanted to share this so I apologize that that part is not documented. In keeping with The Wood Whisperer’s recent “design on the fly” end table series, I thought I would put up this blog detailing that same process as I really only have vague images in my head as to what the finished product will look like and I am hoping the LJ community might help me focus those images.

My sister-in-law loves asian design so I have decided to do a black lacquer finish on this so I chose inexpensive poplar to make this. Plus I got a great deal on some returned cabriole legs at Lowes (of all the places!) and that is what got me started down the Queen Anne style. I’m all about fusion, so why not an Asian finish on Q.A. style?

The lower case is all mortise and tenon joinery and I had to use a lot of shims to secure the preformed legs to my mortiser bed, but it can be done. I built the drawer runners using pocket screws and will attach the top to the case with the same because that will all be hidden joinery. Take a look at the first dry fit:

Aviary construction front

Aviary construction side

I designed the scalloped edges using my french curve and by looking at some Google image examples. I built a small template out of plywood and flush trimmed the final pieces with a router.

I intend to build the top case with frame and panel construction with the front and back panels made from glass or acrylic (open to suggestions here) and the side panel made from PVC coated wire mesh that is pretty common with animal cages. The sides will have inset doors with locks so that she can let the birds out to play.

Obtaining some of this wire mesh is going to be my next step and possibly biggest stumbling block because I am having trouble finding it in small rolls. The 250 foot rolls I have seen are $300 + and ebay only has weird colored rolls. I am looking for black. I need to get some of this stuff so I can know the size of the grooves for the frame and panel set up as well as to get an idea of it’s properties and possible pitfalls.

The drawer in the front will pull out to allow cleaning as the bottom of the upper case will be open and you can see that it will rest into the rabbet on the top. I also think that having these two parts separate will make it easier to transport down to VA to give it to her. I figure a small molding set at the height of the top of the rabbet will conceal the edge nicely once the two cases are put together.

So that is where I am on my first blog. I am interested to hear some thoughts and definately some ideas on glass or acrylic and sources for PVC wire mesh. Has anyone ever made one of these and what were your experiences? What to do about the top? Crown molding, add in a light, etc. Also, I need to think about ways to secure perches and food dishes as well. I can’t wait to hear some ideas.

Shannon

-- The Hand Tool School is Open for Business! Check out my blog and podcast "The Renaissance Woodworker" at www.renaissancewoodworker.com



7 comments so far

View GaryK's profile

GaryK

10262 posts in 2735 days


#1 posted 02-29-2008 04:08 AM

Nice looking job! It will be interesting to see how the finish turns out.

-- Gary - Never pass up the opportunity to make a mistake look like you planned it that way - Tyler, TX

View Scott Bryan's profile

Scott Bryan

27251 posts in 2569 days


#2 posted 02-29-2008 05:14 AM

This is a really nice looking piece. I agree with Gary. It would be nice to see it with a finish on it.

-- Challenges are what make life interesting; overcoming them is what makes life meaningful- Joshua Marine

View Loogie's profile

Loogie

99 posts in 2527 days


#3 posted 02-29-2008 04:07 PM

Very interesting project! It looks great so far! You should post picture of one of the ones she was raving about – or something similar. Personally, I’m not familiar with aviaries but if we could see where you were headed I’m sure you’d get some great feedback.

-- Mark

View ShannonRogers's profile

ShannonRogers

540 posts in 2535 days


#4 posted 03-01-2008 12:34 AM

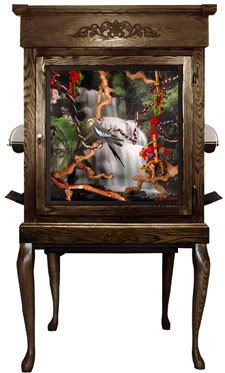

Here is one I found on the Internet that surprisingly has the same Q.A. look. I don’t much like the top, but this should give you can idea of the general look. A lot of the others I have seen have cabinet bottoms like an aquarium and that is just too heavy looking. I am looking for something more elegant.
aviary example

-- The Hand Tool School is Open for Business! Check out my blog and podcast "The Renaissance Woodworker" at www.renaissancewoodworker.com

View Rxmpo's profile

Rxmpo

251 posts in 2492 days


#5 posted 03-27-2008 06:05 AM

Looks like this is going to be a wonderful gift! Keep the posts coming!

View rikkor's profile

rikkor

11295 posts in 2622 days


#6 posted 03-27-2008 12:42 PM

That is beautiful. Good job.

View dlcarver's profile

dlcarver

270 posts in 2477 days


#7 posted 05-17-2008 09:27 PM

Shannon, this stuff is beautiful !!! I can’t believe that you are just starting out. Excellent Work !!!

Dave
PS. Thanks for commenting on my blog…..WEDDING CROSS!!!!!

-- Dave Leitem,Butler,Pa.,http://dlcarver.etsy.com
