Just looking for critique (don't hold back)

  • Advertise with us
Blog entry by Merk posted 07-03-2010 06:55 PM 1166 reads 0 times favorited 12 comments Add to Favorites Watch

My wife has a jewelry business (and I am trying to start a woodworking business), so she asked me to make her some jewelry boxes. My design consisted of approximately 24” X 36” closing cases which were made from various material. A few were made from 3 X 1/2” pine, 3 X 1/2” poplar, 3 X 1/2” ash and I am ready to make some from a heavier type of wood (probably red oak). Next was the design phase – we wanted something that would be sturdy in the base (1/4” birch plywood). So we cut a dado around all the wood (1/4” deep on my router table) for the bottom section and also the top section (which is 2 X 1/2” stock). Next – we mitered all the end pieces and cut biscuit slots in them for added stability. After all that, we stained the wood and then glued everything together (sliding in the bottom and the plexiglas top section). Final touch was the heavy duty hinges. I’ll get a picture or two for critiques as soon as I figure that part out.

Cheers,
Denis



12 comments so far

View MOJOE's profile

MOJOE

548 posts in 2730 days


#1 posted 07-03-2010 07:00 PM

Upload your pix into an outside photo site (photobucket), then just click to add a pic and paste the url into the body of your blog…....I think…..it’s been a while since I posted any pix.

-- Measuring twice and cutting once only works if you read the tape correctly!

View stefang's profile

stefang

15512 posts in 2795 days


#2 posted 07-03-2010 08:51 PM

I think that your idea is good commercially. Now you just have to design and construct the boxes so you can sell them at a price point your wife’s customers will go for and still make you and your wife a reasonable profit. I would just add here that if you can do that, then you should also sell to other similar jewelry business’s not in your wife’s marketing area, unless of course, she isn’t selling from a store location. You probably want more to hear our opinion about the design, so of course we are interested in seeing you photos. Good luck with your new venture.

-- Mike, an American living in Norway.

View PurpLev's profile

PurpLev

8523 posts in 3109 days


#3 posted 07-03-2010 08:59 PM

looking forward for the pics. although based on description it sounds good.

Biscuits sure will make things faster (glue and align), but if you want added strength and a distinct look – I’d drop the biscuits, and use splines – this will actually present you with long-grain to long-grain gluing surface of hardwood compared to biscuit material, and add a nice design touch to the finished box.

-- ㊍ When in doubt - There is no doubt - Go the safer route.

View mtkate's profile

mtkate

2049 posts in 2786 days


#4 posted 07-03-2010 09:08 PM

Agreed on the splines. They add class and interest.

View Merk's profile

Merk

8 posts in 3158 days


#5 posted 07-03-2010 09:10 PM

Okay – I think I can upload the pictures now.

View PurpLev's profile

PurpLev

8523 posts in 3109 days


#6 posted 07-03-2010 09:26 PM

very cool. all in all it looks very good.

one things is asked for – the green box miter seems out of square, leaving the joint open. this only is visible on one of the joints.

are you cutting all the parts to size, and then cut the miter on each part?

you may find it easier to get all the parts mitered the same waay, if you cut the miters first, and then rip the parts to width. this will ensure your parts are all the same length and will match up on the joinery.

another thing you could use is a shooting board to clean up those miters before assembly to make sure they are all precise.

Other than that – I think those look great!

-- ㊍ When in doubt - There is no doubt - Go the safer route.

View SCOTSMAN's profile

SCOTSMAN

5839 posts in 3046 days


#7 posted 07-03-2010 10:27 PM

Nice looking work well done young sir.

-- excuse my typing as I have a form of parkinsons disease

View stefang's profile

stefang

15512 posts in 2795 days


#8 posted 07-03-2010 10:47 PM

I guess i dropped the ball on that one, probably didn’t read it carefully enough. I thought you meant small jewelry boxes that your wife could sell alongside her jewelry.

-- Mike, an American living in Norway.

View Merk's profile

Merk

8 posts in 3158 days


#9 posted 07-03-2010 10:49 PM

Thanks for the positive comments. I will try a couple of splines and see how that works out. Purplev – that silly biscuit maker slipped and that is why the ends did not align (oh I am anal about those joints). But thanks for that input. I was thinking of strengthening the miters by using a finger bit for the router. I saw one in a ShopNotes from the winter and it looked pretty sturdy. Must experiment with that first though.

View tyskkvinna's profile

tyskkvinna

1310 posts in 2447 days


#10 posted 07-04-2010 01:07 AM

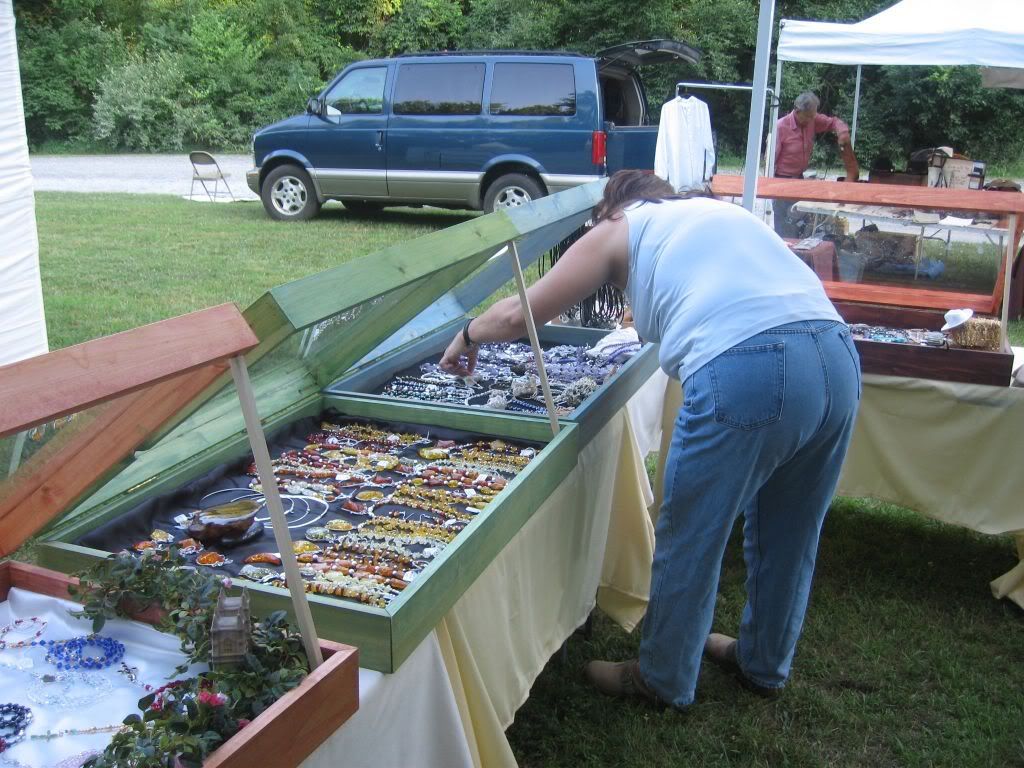

I love those – it looks like a great way to display the jewellery. Just unusual enough! I like that you stained them different colours.

-- Lis - Michigan - http://www.missmooseart.com - https://www.etsy.com/people/lisbokt

View Merk's profile

Merk

8 posts in 3158 days


#11 posted 07-04-2010 05:10 AM

shopguryl – I have that bit for my router, however, when I use it it chews up all the corners so I set it aside. Perhaps now that I have a nice kreg table, it might work better.

tyskkvinna – I argued with my wife about the colors and wound up doing it anyways. It certainly did pay off (she’s snickering right now as I write this).

Thanks Scotsman

Thanks for all your advice – looks like I have a bit more work to do (no pun intended)

View Pete_Jud's profile

Pete_Jud

424 posts in 3214 days


#12 posted 07-04-2010 06:48 AM

Great job, but I think that I would have mortesd the hinges in so that when packing up the boxes they would fit flush in the back of her rig, and not scrape the finish off the other ones.

-- Life is to short to own an ugly boat.
