Cutting Board - in progress

  • Advertise with us
Blog entry by Matt Vredenburg posted 03-01-2009 12:28 AM 2200 reads 5 times favorited 5 comments Add to Favorites Watch

Here are a few in process pictures of the cutting board. It’s pretty straight forward to build. You just need to spend the time figuring out the measurements that will work for you, cutting each of the pieces and gluing each of the setup blocks and then the entire piece.

Also, spend extra time to fill in any gaps you have with glue and fine sawdust. I found the plan for this on Lumberjocks site. There’s a few examples out there.

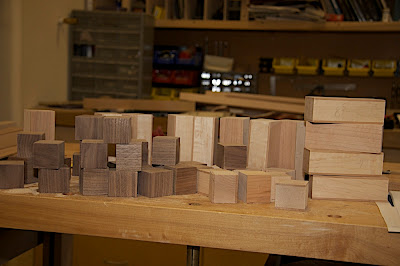

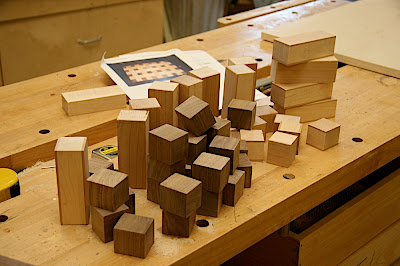

Here are the blocks cut into small pieces.

From Cutting Board Pictures

From Cutting Board Pictures

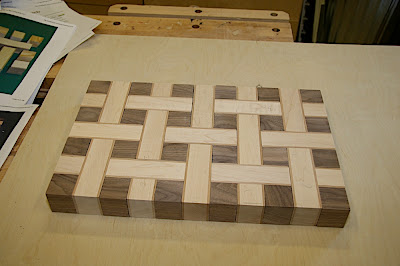

Rough layout before glue up

From Cutting Board Pictures

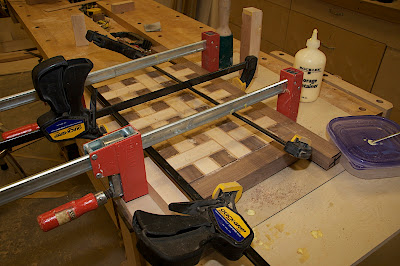

Glue up process – don’t over tighten the clamps – you want the final piece to be as flat as possible.

From Cutting Board Pictures

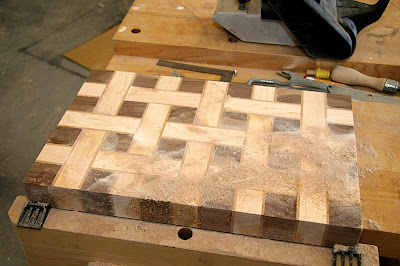

Here’s the sanding process. I used a hand belt sander to do sanding (go on an angle and make sure not to push too hard)

From Cutting Board Pictures

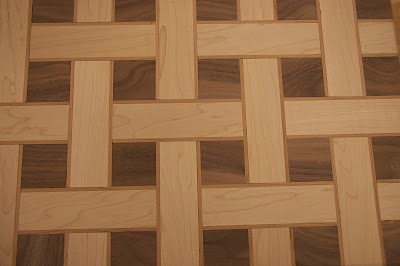

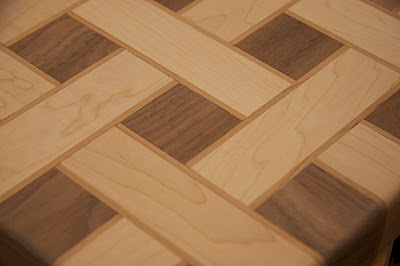

See the little gaps – that is because the cut (table saw) was off a bit but I was able to fill them so you don’t see the gaps in the final product. To prevent this, make sure you check your saw to ensure it’s square to the table top.

From Cutting Board Pictures

From Cutting Board Pictures

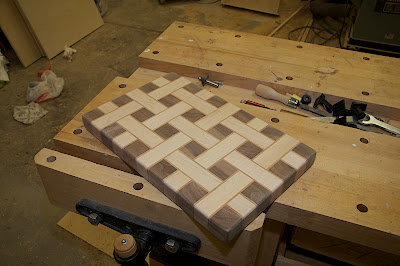

After doing the rough sanding with a hand belt sander and palm sander, I went to my woodworking supplier (Woodsource in Phoenix) to have them run the entire piece through a large belt sander. This make the entire piece completely flat. Keeping the cutting board flat is important when you consider it will be sitting on a honed granite counter top.

From Cutting Board Pictures

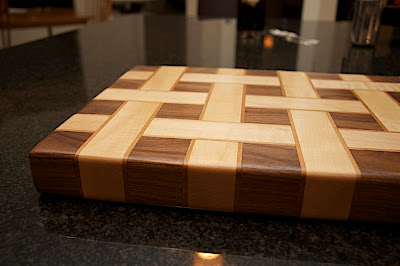

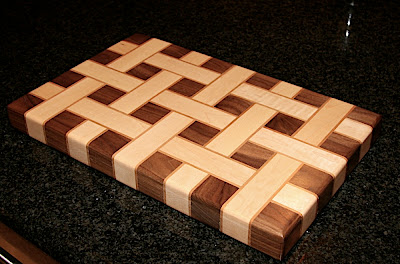

Here is the final product which I also included in the completed project section.

When I showed up with this in the kitchen, my wife refused to cut on it at first, but I broke it in the other night and it worked great and still looks beautiful. I made the piece pretty thick so I can re-sand and finish the piece when the cut marks show up too much. I figure that wont be for years though.

From Cutting Board Pictures

From Cutting Board Pictures

From Cutting Board Pictures

Many thanks to Dan Walters and Tony for the instructions.

Check out Tony's blog entry for step-by-step instructions.

-- Matt, Arizona



5 comments so far

View EricW's profile

EricW

86 posts in 2981 days


#1 posted 03-01-2009 02:23 AM

im not seeing the pictures.?

View Gary Fixler's profile

Gary Fixler

1000 posts in 2847 days


#2 posted 03-01-2009 02:33 AM

Matt, this looks so neat! I love the idea of using cherry between the lighter and darker maple and walnut woods. Nice job! You got a great series of pics of the progression here, too.

-- Gary, Los Angeles, video game animator

View Tony's profile

Tony

978 posts in 3495 days


#3 posted 03-01-2009 03:45 PM

Hi Matt

The pictures are not showing in my browsers

-- Tony - All things are possible, just some things are more difficult than others! - SKYPE: Heron2005 (http://www.poydatjatuolit.fi)

View Tony's profile

Tony

978 posts in 3495 days


#4 posted 03-01-2009 07:14 PM

The pictures are now showing OK, except for “Final Clean up before finishing”. Nice to see my notes next to your work, I am happy that they helped you along the way, to produce a nice looking board.

-- Tony - All things are possible, just some things are more difficult than others! - SKYPE: Heron2005 (http://www.poydatjatuolit.fi)

View Canadian Woodworks's profile

Canadian Woodworks

702 posts in 2535 days


#5 posted 02-25-2010 04:14 AM

Hey looks good, i’ll be trying that design very soon I hope

-- Paul Lemiski, Ontario Canada, Custom Wooden Rocking chairs and tables http://www.canadianwoodworks.com
