I guess about ten years ago I made a second router table for certain applications. Mostly it was to be used with Incra jigs and accessories.

This table is a little fancier than the last one I posted ands does have a few advantages.

For example there is no back to this cabinet. Both sides have the same door arrangement, so accessing the router is easier to make height adjustments.

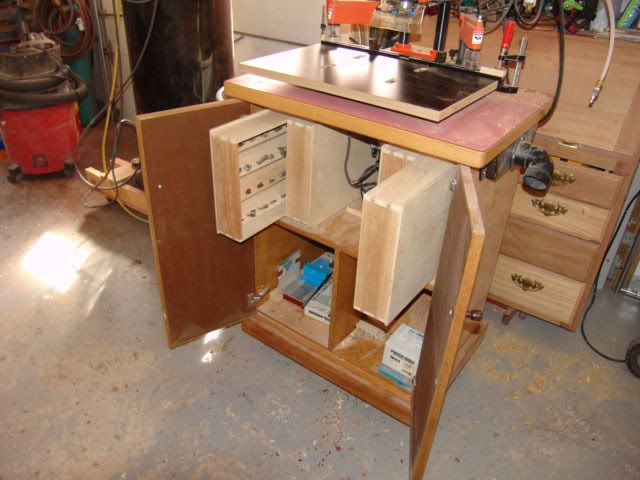

Also there is a lot of bit storage in the four vertical pull outs. These too can be pulled out to either side so your able to access them easily.

The mounting plate was originally made from 1/4” Lexan, however there was too much flexing taking place for really accurate work. I replaced the Lexan with 1/4” aluminum plate. This is rock solid and provided the stability to do really intricate and precise work, as the Incra jigs are designed to do.

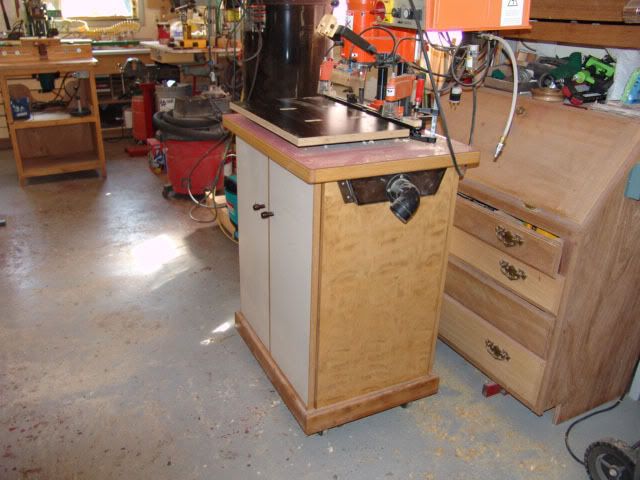

In the picture the table is sitting on a furniture dolly. Since having bought a shaper this table, like the last one is rarely used. Now it supports a Blum hinge machine, which is very heavy. Having it on wheels make it easy to move around the shop.

While this cabinet does have dust collection, and it works fairly well, it’s not as effective as the one on the other table.

By the way, the laminate was left over from a job. (I don’t want anyone thinking I bought this color for a router table)

Photobucket - Video and Image Hosting

Photobucket - Video and Image Hosting

Photobucket - Video and Image Hosting

Photobucket - Video and Image Hosting

Photobucket - Video and Image Hosting

Photobucket - Video and Image Hosting

Photobucket - Video and Image Hosting

-- by Lee A. Jesberger http://www.prowoodworkingtips.com http://www.ezee-feed.com



26 comments so far

View TomFran's profile

TomFran

2942 posts in 2690 days


#1 posted 07-01-2008 04:58 PM

Very nice router table, Lee. Thanks for sharing your ideas!!!

-- Tom, Surfside Beach, SC - Romans 8:28

View bigguy's profile

bigguy

86 posts in 2409 days


#2 posted 07-01-2008 05:10 PM

Lee-
Great table…love the pink top :) I like the verticle design for bit storage.

-- Thank God for sawdust... Ron. New TX resident...

View bryano's profile

bryano

546 posts in 2629 days


#3 posted 07-01-2008 05:56 PM

Cool Table Lee. I like the bit storage.

-- bryano

View Lee A. Jesberger's profile

Lee A. Jesberger

6664 posts in 2676 days


#4 posted 07-01-2008 07:06 PM

Pink is my favorite color you know.

Thanks guys.

Lee

-- by Lee A. Jesberger http://www.prowoodworkingtips.com http://www.ezee-feed.com

View Callum Kendall's profile

Callum Kendall

1918 posts in 2399 days


#5 posted 07-01-2008 07:08 PM

Great job!

Thanks for the post

Callum

-- For wood working podcasts with a twist check out http://thetimberkid.com/

View Lee A. Jesberger's profile

Lee A. Jesberger

6664 posts in 2676 days


#6 posted 07-01-2008 07:16 PM

Thanks Callum.

Lee

-- by Lee A. Jesberger http://www.prowoodworkingtips.com http://www.ezee-feed.com

View Dick, & Barb Cain's profile

Dick, & Barb Cain

8693 posts in 2996 days


#7 posted 07-01-2008 07:32 PM

I like it a lot, A good simple no frills design.

I like the vertical bit storage set up.

I think I’m going to modify my stand with drawers like yours.

-- -** You are never to old to set another goal or to dream a new dream ****************** Dick, & Barb Cain, Hibbing, MN. http://www.woodcarvingillustrated.com/gallery/member.php?uid=3627&protype=1

View daveintexas's profile

daveintexas

365 posts in 2572 days


#8 posted 07-01-2008 07:46 PM

Lee-
I think you should have edged the top with Bubinga, then made a inlay around the aluminum plate out of Brazilian Cherry, ya know, just to accent that laminate.
Cool project, lots of woodworkers should get some inspirational ideas from this design.

Thanks for posting

View davidtheboxmaker's profile

davidtheboxmaker

373 posts in 2501 days


#9 posted 07-01-2008 08:36 PM

Lee
Nice table. I’m putting one together at the moment – really like your pull out bit storage. Think I’ll include that in mine – or something very like it – thanks for the post.

View Lee A. Jesberger's profile

Lee A. Jesberger

6664 posts in 2676 days


#10 posted 07-02-2008 01:02 AM

Hi Dick;

No frills? What about the pink top?

Thanks;

Lee

-- by Lee A. Jesberger http://www.prowoodworkingtips.com http://www.ezee-feed.com

View Lee A. Jesberger's profile

Lee A. Jesberger

6664 posts in 2676 days


#11 posted 07-02-2008 01:04 AM

Hi David;

You know, I do have some Bubinga in the shop, AND Brazilian Cherry!

I could… Oh never mind.

Thanks;

Lee

-- by Lee A. Jesberger http://www.prowoodworkingtips.com http://www.ezee-feed.com

View Lee A. Jesberger's profile

Lee A. Jesberger

6664 posts in 2676 days


#12 posted 07-02-2008 01:08 AM

Hi David the Box Maker;

The pull out bit storage is pretty handy.

One side of the cabinet is 1/2 ” shanks, the other 1/4”. Actually only one of the four is 1/4”.

It is convenient though.

Thank you;

Lee

-- by Lee A. Jesberger http://www.prowoodworkingtips.com http://www.ezee-feed.com

View Grumpy's profile

Grumpy

19582 posts in 2547 days


#13 posted 07-02-2008 10:26 AM

Nice table Lee. You should get a lot of work out of that one.

-- Grumpy - "Always look on the bright side of life"- Monty Python

View Taigert's profile

Taigert

593 posts in 2537 days


#14 posted 07-02-2008 12:19 PM

Lee,
Nice set up, I really like the slide out storage for router bits great idea.

-- Taigert - Milan, IN

View Dick, & Barb Cain's profile

Dick, & Barb Cain

8693 posts in 2996 days


#15 posted 07-02-2008 12:29 PM

Lee!

I’m sorry I didn’t mention the top.

I hope you accept my apology.

-- -** You are never to old to set another goal or to dream a new dream ****************** Dick, & Barb Cain, Hibbing, MN. http://www.woodcarvingillustrated.com/gallery/member.php?uid=3627&protype=1
