Potato cannon carriage #5: Forward armor

  • Advertise with us
Blog entry by JJohnston posted 08-15-2010 04:07 AM 3128 reads 2 times favorited 9 comments Add to Favorites Watch
« Part 4: Ignition Part 5 of Potato cannon carriage series Part 6: Some tweaks and the test firing »

First, I didn’t like the way the ramrod just stuck out of its tube, as shown in part 3, so I made a longer one that fits the rod completely. I put a small eye screw with a keyring in the end of the rod so I can fish it out.

The tube now has a cap on both ends; I put a light chain on the access cap to keep it from getting dropped or lost. I’m not super happy with how chunky the forward tube bracket is.

Now I’m starting on the armor plating. The “armor” is 1/8” plywood.

The framework for the armor is an H-shape of 1/2” thick poplar that sits on the forward part of the axle frame.

Another view:

The tops of the frame members are mitered at 45 degrees, and there are 2 additional gussets. I had a hard time clamping these. In fact, I gave up on clamping and just held them in place until my hands got tired.

The back of the armor.

The front. I had such a hard time clamping the upper flaps, I ended up putting in some screws. These are hinged on the real thing.

Here’s how it will look assembled, from the front. I didn’t quite capture the M101 howitzer; it looks to me more like a World War 1-era piece – I think it’s the narrow, spoked wheels. You can also see how oversized the forward ramrod tube bracket is.

From the back.

Next installment: Artwork

-- "Sorry I'm late. Somebody tampered with my brakes." "You should have been early, then."



9 comments so far

View Canadian Woodworks's profile

Canadian Woodworks

611 posts in 1724 days


#1 posted 08-15-2010 04:36 AM

sweet

-- Paul Lemiski, Ontario Canada, Custom Wooden Rocking chairs and tables http://www.canadianwoodworks.com

View Jimthecarver's profile

Jimthecarver

1122 posts in 2439 days


#2 posted 08-15-2010 04:57 AM

I have to say this is going the extra mile on a project. Totally cool, I have been watching your progress.
Great design and build.

-- Can't never could do anything, to try is to advance.

View Brad_Nailor's profile

Brad_Nailor

2531 posts in 2611 days


#3 posted 08-15-2010 05:56 AM

This is the coolest thing I have ever seen! I love it..I have always wanted to build a potato cannon, and this is an awesome version. Nice engineering, design and build.

-- http://www.facebook.com/pages/DSO-Designs/297237806954248

View Brad_Nailor's profile

Brad_Nailor

2531 posts in 2611 days


#4 posted 08-15-2010 06:21 AM

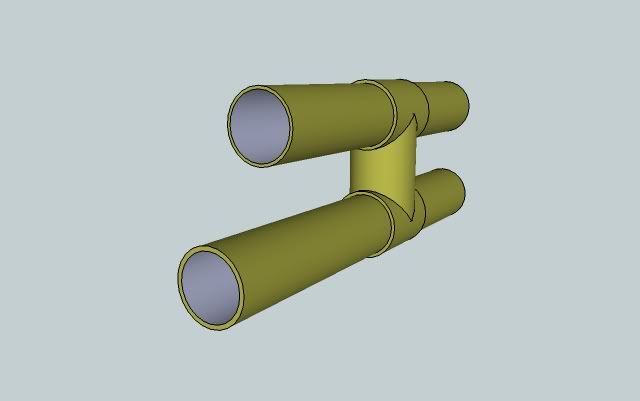

I was enthralled by your cannon and I have just spent the last hour reading the whole blog and looking at your design. I agree that the forward muzzle bracket is a little too beefy and I hope you don’t mind if I offer a suggestion. I whipped up a quick Sketchup design…this was a fast and dirty design exploration i apologize for the lack of detail… and I made both the barrel and the push rod cylinder the same size…

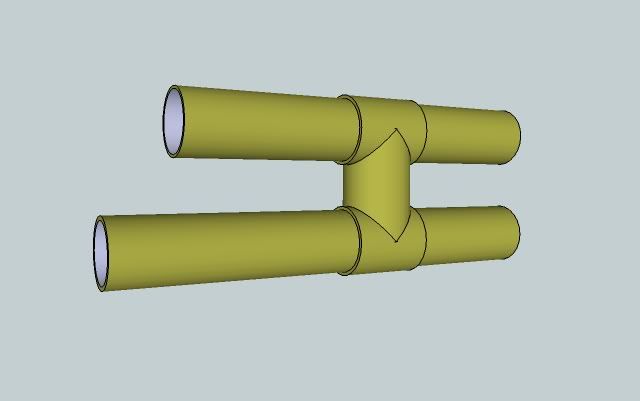

I was thinking that you could use some PVC T connectors that are oversized and a small piece of PVC to connect them..
