The chair (design) that will not go away

Blog entry by FritzM posted 687 days ago 594 reads 2 times favorited 26 comments Add to Favorites Watch

I have been struggling with the final arm rest/leg design of a redwood patio chair, so I thought I would document the process and the progress thus far and as it moves forward (at a snails pace).

First off, when I originally sketched this chair I fell in love. I couldn’t wait to get into the shop and get started. The need was for a set of deck chairs but i really wanted to avoid a straight Adirondack design. I was trying to get a comfortable contemporary look with both a minimal yet substantial feel. As you can see in my sketch, the integral seat/backrest thickness would have required bent ply to achieve the super thin profile. And that isn’t yet in my skill bag. I’d have to work carefully to ensure the thin design was not compromised in the final version. Here is my initial sketch. Crude but a good start.

Photobucket

Here’s an image showing how I resolved some of the scale issues. This process, as rudimentary as it is, helps me envision the piece in it’s actual size. By no means is it a full mockup, but it allows me to quickly make adjustments to the design and get some real dimensional information before taking it to CAD.

Photobucket

After working the design out in sketch form, I worked it up in AutoCAD. As an architect, this is the program most familiar to me and the accuracy keeps me honest. I have started working with SketchUp more, but am still drawn back to AutoCAD mainly for familiarity sake. As I developed the design further in CAD, I eliminated the height adjustment and pivoting mechanisms (shown in the sketch), forcing me to really work through the ergonomics and (more honestly perhaps) make the fabrication more feasible and bullet proof. Here are the further developed Cad drawings.

Photobucket

Once I had the CAD work close I created a part list and cutting diagrams. For the curved back/seat support rails I printed out full size outline drawings to transfer (with good old carbon paper) to the final workpieces for cutting on the bandsaw. Here is a photo showing the full size printout (yep, that’s 8 ½ x 11 paper taped together). Unfortunately you can’t make out the printed lines in this image, but trust me, they are there.

Photobucket

And here are the rough cut rails.

Photobucket

Then a bunch of other boring milling took place to produce the 23 slats needed for the seat and backrest. Then it was on to assembly. Yes, that is my dining room table, but the work’s gotta get done and I have no home shop. I was so excited to get this started that I didn’t even bother taking the candle holders off the table….. This picture clearly shows the relationship between the curved support rails (only one of them shown here) , the stretchers locking them together and the slats. I used a bridle joint to connect the back and seat rails into one continuous rail, more on this possible weak link later. Underneath the precarious mock up is the full size printout of the original arm/leg design, more on that in a second.

Photobucket

Here you can see how the rail supports, stretchers and slats relate in the actual piece. Also, this is a good image to show how I dealt with the visual “thinness” or the edge. By centering the 9” wide support rail structure all you will perceive is the thickness of the slats. Pretty much in keeping with my original sketch.

Photobucket

Lots of screwin’ and gluin’ plugs goin’ on here.

Photobucket

Now onto the arm design, the big stumbling block. I don’t have any process photos of the arm fabrication but they are each composed of 5 pieces of ¾” redwood sandwiched and glued together to achieve the thickness. At the connecting ends, the laminated layers are held short or let run long to interlock with eachother to form a multilayer bridle joint (I’m sure there’s a more proper name than that but I don’t know it). In the photo you can see one leg/arm assembled and one disassembled.

Photobucket

Here is a plan view photo where I’m trying to resolve the location that the chair body will be positioned on the leg/arm.

Photobucket

Alright, so here’s the dilemma…… I hate the wood legs! In elevation view they looked like a good compromise between aesthetically right and buildable and structurally sound. Well, the structurally sound part is workin’ but they aren’t real pleasing to the eye. They look like two heavy, clunky, unrefined appendages! So as you can see below, it has literally been shelved. The bad part is I’m super pumped about seeing this thing finished.

Photobucket

So here is what I’ve come up with to get the Patio Lounger back on track. I sketched out a few idea and then put it into CAD to refine it and give it some real dimensions.

Photobucket

The material will be powder coated aluminum with welded fittings to receive cross bars that will both support the chair body and give the two legs lateral rigidity. That’s my thought anyway…..

Photobucket

So, in summary thus far, I’ve designed and built a chair body that is quite comfortable and meets my design concept I was going for.

As I mentioned earlier, there is a weak link with the chair body. After gluing up the seat and back support rails with a bridle joint, I wanted to test its strength so I put a moderate amount of pressure on it, and whamo, it blew apart. At the time, I was only testing one individual rail, so I figured that once the two rails were joined with the stretchers and the load was spread more evenly via the slats, it would be stronger. This has worked out so far, but because I have only tested the seat while it is on the ground and leaning against a wall, I haven’t yet given it a full, real world test. If it does fail, the easy solution will be to consider this a mock up and make the final version(s) with hardwood rails.

I will update when I’ve taken the next steps.

Thanks for reading.

Fritz

-- Fritz Oakland, Ca http://www.muegenburg.com (dedicated to my other hobby)


26 comments so far

View Blake's profile

Blake

2763 posts in 773 days


posted 687 days ago

I wish I had your design sense. But I actually found myself really interested in reading about your process. Thanks for chronicling it in such detail.

-- Check out my new website! http://www.blakeweberwoodworking.com

View GaryK's profile

GaryK

9537 posts in 887 days


posted 687 days ago

Great post! Lots of good information. I have a chair or two on my list of things to make.

-- Gary, East TX -- The longest journey begins with a single step.

View Karson's profile (online now)

Karson

25806 posts in 1299 days


posted 687 days ago

As I was reading that I thought to my self. What about the base being a reverse curve like a rocker but upside down. That bring the back and the base into similar but inverse curves. Your wooden designs show a flatsided curve. maybe make it more flowing

The arm could then be assembled off a tangent from the base curve and attached to the back as a support.

I’m not a designer. But, that how I’m visualizing it.

Great info.

-- What happens in the workshop stays in the workshop. No wait that doesn't sound right. Karson Southern Delaware karson_morrison@bigfoot.com †

View Kaleo's profile

Kaleo

200 posts in 1038 days


posted 687 days ago

fritz-

This is a great design. I really love it. I wold look into using a finger joint there instead of a bridle. Only because it provides more long grain to long grain glue surface. But other than that it is a beautiful design.

-- Kaleo , http://www.kalafinefurniture.com

View rikkor's profile

rikkor

11335 posts in 773 days


posted 687 days ago

What a fascinating process to watch evolve. Thanks for so much detail.

View Tomcat1066's profile

Tomcat1066

776 posts in 694 days


posted 687 days ago

Very cool design! I’m definitely impressed with your design sense. I was having self esteem issues with my design ability before I read your post. Now? Let’s just not go there ;)

Seriously, I can’t wait to see the finished chair.

-- "Give me your poor tools, your tired steel, your huddled masses of rust." Yep, I ripped off the Statue of Liberty. That's how I roll!

View Mario's profile

Mario

882 posts in 950 days


posted 687 days ago

Thank you for this post, it is nice to see how others work through issues and especially someone like yourself as an architect.

-- Hope Never fails

View MsDebbieP's profile

MsDebbieP

14174 posts in 1059 days


posted 687 days ago

awesome.
You sure put a lot of work into the plan and what a great chair!

-- ~ Debbie, Canada (http://www.execulink.com/~yohan)

View motthunter's profile

motthunter

2079 posts in 697 days


posted 687 days ago

its amazing how much time goes into a single item to get it just right

-- making sawdust....

View Damian Penney's profile

Damian Penney

1030 posts in 890 days


posted 687 days ago

Very nice chair. For a base/arms I think a triangle would work pretty well. One side on the floor, one side parallel to the seat, and then a vertical piece at the front. Use a bent lamination to get some nice curves on the corners, and it would look great. You’d connect the two triangles with a rail behind the seat similar to how an adirondack is constructed.

Really nice work so far though (and the metal would be cool too, I just like the thought of keeping it all redwood)

Damian

-- I am always doing that which I can not do, in order that I may learn how to do it. - Pablo Picasso

View Harold's profile

Harold

312 posts in 746 days


posted 687 days ago

I think Karson’s idea is really interesting. I like your concept sketch Fritz and the simple base/arm does work well with the back and seat.

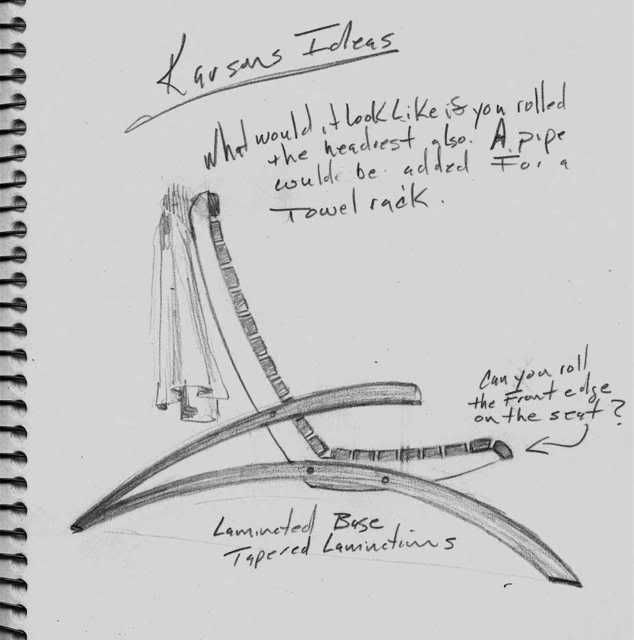

Now I hope I haven’t overstepped my bounds but Karson’s suggestion sounded very simple and I sketched up my interpretation of his comments on the curved base. It does compliment the back and seat well and it has a organic flow, which would tie it into it’s surroundings very well. I’m assuming a pool deck or perhaps a lania overlooking the water. karsons idea

I do like the concept and the rough sketch works very well for me. Sometimes I will get distracted by the “how” and begin to make compromises in the design which almost always end badly.

So, thanks for posting this, it is interesting to read how others approach design issues. It really is a help for me personally.
take care,
harold

-- If knowledge is not shared, it is forgotten.

View FritzM's profile

FritzM

106 posts in 711 days


posted 687 days ago

Wow! Thanks to everyone for the feedback and input. I am reminded that this is one of the great benefits of Community. Peers sharing ideas, inciting new visions and congratulating one another for the small victories that keep us invigorated about our craft.

Harold, first off, thanks for blowing my sketching out of the water…... man, you’ve got skills! I love your and Karson’s take on a possible design. Thanks for putting down your thoughts and taking the time to scan & post!

Kaleo, An alternative joinery technique most definitely will help. Thanks for pointing that out as I would like to see the whole seat body remain the same wood.

Damian, it sounds like your idea is similar to Harold’s sketch only rectilinear with a vertical support on the front. I like that idea as it may help accentuate the subtle curve of the seat.

and here I thought I was getting closer to finalizing the thing. one step forward, four steps back :)

Thanks again everyone!

-- Fritz Oakland, Ca http://www.muegenburg.com (dedicated to my other hobby)

View Damian Penney's profile

Damian Penney

1030 posts in 890 days


posted 686 days ago

I also love the base of the Thos. Moser vita chair, which is also done with tapered laminations.

vita chair

-- I am always doing that which I can not do, in order that I may learn how to do it. - Pablo Picasso

View FritzM's profile

FritzM

106 posts in 711 days


posted 686 days ago

Ditto, that’s a great chair!

Alright, here is a rookie question, any references for creating tapered laminations. I get the basic form, glue, clamp of bent laminations, but how do you cut such a thin workpiece appropriate for bending with a taper….? anyone?

-- Fritz Oakland, Ca http://www.muegenburg.com (dedicated to my other hobby)

View Harold's profile

Harold

312 posts in 746 days


posted 686 days ago

I use a tapering jig that I run thru my drum sander, depending on the type of wood you use, a planer would also work if the blades were sharp. My jigs are made from MDF I rip a 3” piece of MDF, this gives me alittle room (1/2”+/-) on each side of the material I intend to taper. I will take two strips that have a line snapped on them that represents the taper I want and then screw these two to the “jig” using the line to achieve the taper. I use my router to remove the material in the jig where the wood will sit. (the router base plate rides on the strips attatched to the sides, acting as a depth guide for the router) After I rmove the strips, I end up with a piece of MDF with a shallow tapered recess. I rip the material I plan on using for the laminations on the table saw, adding a 1/16” or more to fat end to allow for planing and or sanding.(BE CAREFUL RIPPING THIN STRIPS! keep you blade low and use a thin push stick) I don’t use male/female forms because the final thickness of the laminations must be exact, instead I use a steel caul, a suitable piece can be found at HD the 1-1/2” wide x apx 1/4”thick and is 4’ long. I have some pictures I will try and find them.

-- If knowledge is not shared, it is forgotten.

View FritzM's profile

FritzM

106 posts in 711 days


posted 686 days ago

I kinda get the idea, but I’m sure pictures will speak a thousand more words…. so it would be great to see those if you can find the time. After checking out your cantilevered display table, you clearly have a handle on bent laminations.

-- Fritz Oakland, Ca http://www.muegenburg.com (dedicated to my other hobby)

View Harold's profile

Harold

312 posts in 746 days


posted 686 days ago

Here a a few pictures, the first is a couple tapering jigs that still have the depth guides for the router attatchedtapering jigs
this next picture is of the glue form I use for the walking stickswalking stick glue jig
Walking stick glued up in jigwalking stick in jig
and this last picture is of a rocking chair runner glue up in a similar jigrocking chair runner in jig

-- If knowledge is not shared, it is forgotten.

View ChicoWoodnut's profile

ChicoWoodnut

895 posts in 714 days


posted 686 days ago

Harrold,

Your clamps are threaded rod with a stick through the form held on with nuts and a stick on the lamination held on with either nuts or tension?

Cool!

-- Scott - Chico California http://chicowoodnut.home.comcast.net

View Karson's profile (online now)

Karson

25806 posts in 1299 days


posted 686 days ago

Great design on the tapering jig and gluing frame.

-- What happens in the workshop stays in the workshop. No wait that doesn't sound right. Karson Southern Delaware karson_morrison@bigfoot.com †

View Harold's profile

Harold

312 posts in 746 days


posted 686 days ago

The top section is cut from 1/4” flat bar which connects with allthread to the pipe on each side of whatever I’m gluing. I’m not sure if the od of the pipe is 3/4” or 7/8” (i’ll have to check) it does work well. I made up 32 sets or clamps if you will, for about $25, maybe took 3 hours to cut and drill everything. All my laminating jigs use this style clamping system. I have another set that have the holes in the pipe tapped and use 5/16” x 6” bolts, which is much quicker. I tighten the nuts/bolts with a nut driver in my cordless and then snug them up with a ratchet. I use the thin flat bar as the top caul. Now the bottom picture, the rocker glue up, is with polyurethane glue and it does not have a long open time. with poly it’s a two person job, the poly can handle a alittle more clamping pressure. I use a the iron from my toothing plane to “scratch” the laminations. If you are unsure about whether the open time will be an issue, don’t bother with the poly, it’s a mess. If it’s a complicated glue up I use a 2 part epoxy, I wet the all the surfaces first and then thicken the remainder and recoat each, just in case. Now you can starve an epoxy joint so you need to be aware of your clamping pressure. I will always clamp up the lamination a couple days before and let the wood relax in the jig. If I have a problem with my joints I will take it apart and refit until it’s right. On the small table I used fiberglass tape between the laminations, which makes the piece very ridgid, but the glue joints are a distraction for me personally.

-- If knowledge is not shared, it is forgotten.

View ChicoWoodnut's profile

ChicoWoodnut

895 posts in 714 days


posted 686 days ago

So when the lamination is set, and you take it out, how do you square up the ragged sides?

-- Scott - Chico California http://chicowoodnut.home.comcast.net

View Harold's profile

Harold

312 posts in 746 days


posted 686 days ago

I’ll use the bandsaw to remove the excess foam and then runit thru the planer or drum sander depending on wood type, for example the rocking chair runner was silk oak and it will tear out in the planer. I’ll try and write up a topic for this jig,it seems like I’m getting alittle off topic here

-- If knowledge is not shared, it is forgotten.

View Harold's profile

Harold

312 posts in 746 days


posted 686 days ago

Fritz, have you tried going back to your original sketch, it really does work. If you still have the base you made up, I would try cutting off the arm rests and re-cut the angle on the bottoms to give you the slight slope to the rear. Maybe try cheating it forward abit so that the backrest connection goes thru the joint in the rear. I would try that, put it together and see how it sits. I do like the subtle curves in your concept sketch so once the chair is together I would make paper templates and attatch them to the fitted chair and just look at it for a day or two. I’m afraid we may have distracted you, but I have to admit that your concept sketch is the what I keep returning to, interesting how that works.

-- If knowledge is not shared, it is forgotten.

View FritzM's profile

FritzM

106 posts in 711 days


posted 685 days ago

Harold: First, thanks for posting all those getting pics of your clamping setup. I am always stuck thinking in conventional ways about clamping and the idea of setting 30 some odd clamps to get your walking sticks glued up would be a joke…. obviously you figured that out pretty quickly and your solution is elegant and maybe more importantly, infinitely repeatable without requiring a ton of dedicated clamps and awkward positioning of loose clamps every time. genius! thanks for helping me see outside my own box!

As for the chair support, here is the dilemma. As in my original sketch, there was no separate armrest. The original intent in the concept sketch was that the single form leg would be tall enough and the seat would sit low enough that the top of the leg support would act as an armrest. Once i worked it up in CAD, the real dimensions would have put the seat pan at around 7” off the floor…... sort of an uncomfortable height (for a patio/deck chair). And even at that low height, the armrest still wasn’t high enough to be really comfortable for the average person. The chair is meant for relaxing and I am a firm believer that a lounge chair has to have armrests. Here are a couple of early CAD iterations that illustrate the height issues….. raise the armrest higher and the base gets longer or the angle of the legs gets steeper. Neither of which maintain the same design intended in the original concept sketch. It was this realization that took me down the road of adding an extended height arm rest so I could leave the leg base at the lower originally designed height.

Upon your prompting I will go back and revisit the concept with a fresh set of eyes and see if I can’t find the solution hidden in there somewhere. Perhaps the freedom offered by laminate bending or tapered laminate bending will produce some inspiration.

Here’s version number 1:

Photobucket

And a little further developed. Still too low and the reclining angle is way too high.

Photobucket

-- Fritz Oakland, Ca http://www.muegenburg.com (dedicated to my other hobby)

View Harold's profile

Harold

312 posts in 746 days


posted 639 days ago

How’s the chair coming along? I have been watching the weather on the west coast, looks like the surf has been pretty good. Sometimes there just aren’t enough hours in the day.

-- If knowledge is not shared, it is forgotten.

View FritzM's profile

FritzM

106 posts in 711 days


posted 638 days ago

Still on the back burner Harold. Thanks for checkin in though! A funny thing happened while I was trying to design and build my never completed, Not just any box entry. I realized the school shop i where I take classes is only good for the table saw. So, I have been working on getting setup at home to do most other tasks. Right now I’m putting the finishing touches on a benchtop router table….. will post that soon.

I will certainly post when I get the chair back on track.

-- Fritz Oakland, Ca http://www.muegenburg.com (dedicated to my other hobby)
